IGNITION KEY CYLINDER LIGHT INSPECTION

PROCEDURE

  1. INSPECT TRANSPONDER KEY AMPLIFIER

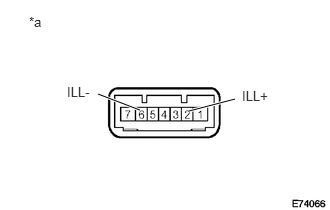

    1. E074066E17

      Apply battery voltage to the connector and check the LED illumination condition.

      OK

      Measurement Condition

      Specified Condition

      Battery positive (+) → Terminal 2 (ILL+)

      Battery negative (-) → Terminal 6 (ILL-)

      LED illuminates
      Table 1. Text in Illustration

      *1

      Component without harness connected

      (Transponder Key Amplifier)

      If the result is not as specified, replace the transponder key amplifier.
