HEADLIGHT ASSEMBLY REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH side and LH side.

  • The following procedure is for the LH side.

PROCEDURE

  1. REMOVE FRONT BUMPER ASSEMBLY

    Click here

  2. REMOVE HEADLIGHT ASSEMBLY

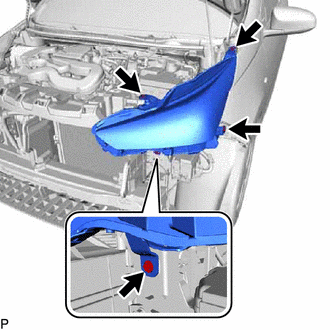

    1. E392052

      Remove the 4 screws to separate the headlight assembly.

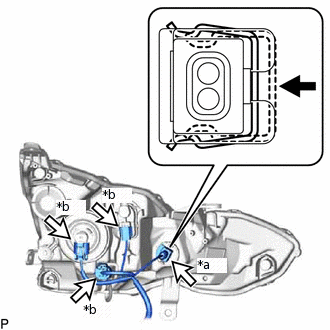

    2. E392053C01

      *a

      Connector (A)

      *b

      Connector (B)

      Disconnect the connector (A) as shown in the illustration.

    3. Disconnect the 3 connectors (B) to remove the headlight assembly.
