EGR VALVE COMPONENTS

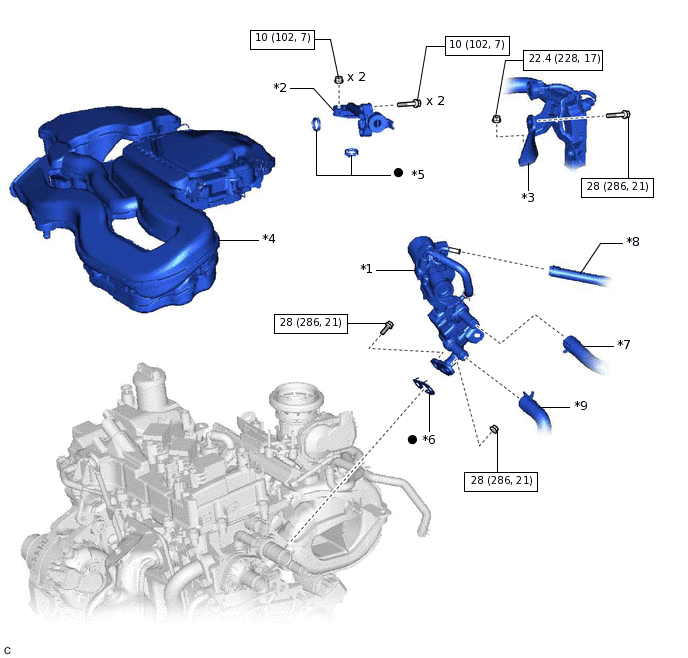

ILLUSTRATION
*1 |
EGR VALVE WITH COOLER ASSEMBLY |
*2 |
NO. 1 EGR PIPE SUB-ASSEMBLY |
*3 |
EGR VALVE BRACKET |
*4 |
AIR CLEANER ASSEMBLY WITH ELEMENT |
*5 |
EGR INLET GASKET |
*6 |
EGR VALVE GASKET |
*7 |
WATER HOSE SUB-ASSEMBLY |
*8 |
NO. 2 WATER BY-PASS HOSE ASSEMBLY |
*9 |
NO. 4 WATER BY-PASS HOSE ASSEMBLY |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |

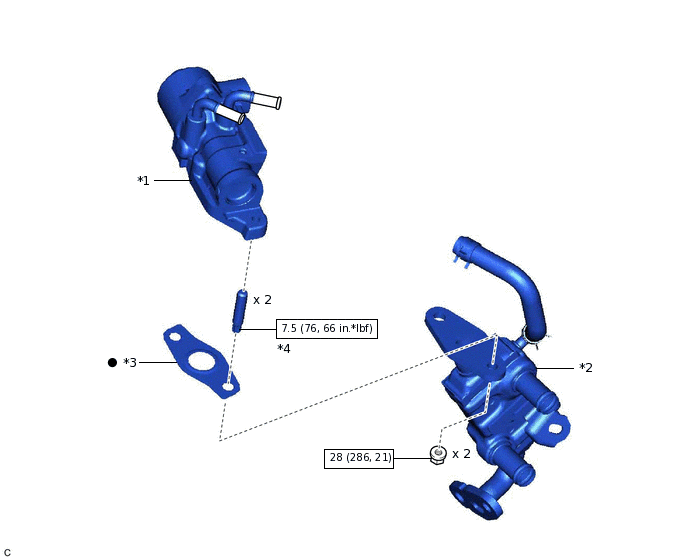

ILLUSTRATION
*1 |
EGR VALVE ASSEMBLY |
*2 |
EGR COOLER ASSEMBLY |
*3 |
NO. 1 EGR COOLER GASKET |
*4 |
STUD BOLT |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
