AUTOMATIC LIGHT CONTROL SENSOR REMOVAL

PROCEDURE

1. REMOVE UPPER INSTRUMENT PANEL ASSEMBLY

   Click here

2. REMOVE AUTOMATIC LIGHT CONTROL SENSOR

   1.

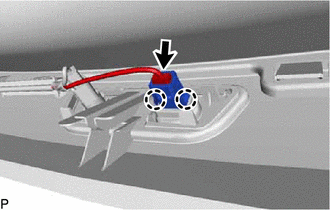

      Disconnect the connector.

   2. Disengage the 2 claws to remove the automatic light control sensor.
