HEADLIGHT ASSEMBLY DISASSEMBLY

PROCEDURE

1. REMOVE NO. 1 HEADLIGHT BULB

   1.

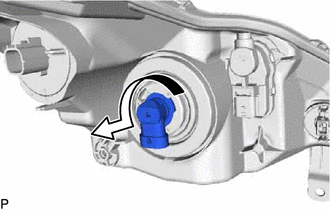

      Turn the No. 1 headlight bulb as shown in the illustration to remove it.

      Note:

      Do not touch the bulb glass.

2. REMOVE FRONT TURN SIGNAL LIGHT BULB

   1.

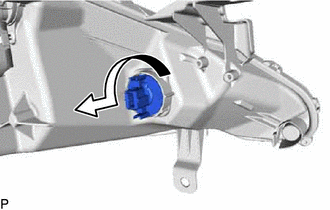

      Turn the front turn signal light socket with the front turn signal light bulb as shown in the illustration to remove them as a unit.

   2. Remove the front turn signal light bulb from the front turn signal light socket.
