EMISSION CONTROL SYSTEM DETAILS EGR COOLER

  1. CONSTRUCTION

    1. The EGR cooler assembly cools the exhaust gas to improve the EGR efficiency.

    2. Stainless steel is used for the EGR cooler assembly in consideration of reliability at high temperature.

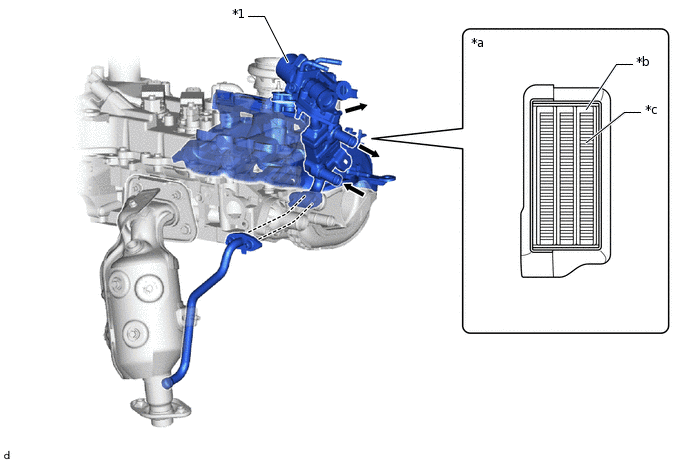

      W139453C01

      *1

      EGR Valve Assembly

      -

      -

      *a

      EGR Cooler Assembly Cross Section

      *b

      Water Passage

      *c

      Exhaust Gas Passage

      -

      -
      V100135

      Engine Coolant

      -

      -
