REAR SEAT ASSEMBLY(for 60/40 Split Seat Type RH Side) DISASSEMBLY

CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the seat frame may injure your hands.

PROCEDURE


  1. REMOVE REAR SEAT COVER CAP RH (for Manual Seat)

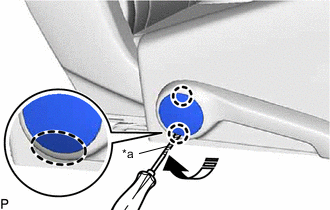

    1. B005NLGC01
      *a Protective Tape
      B008043 Insert Screwdriver Here
      B007Z37 Remove in this Direction

      Using a screwdriver with its tip wrapped with protective tape, disengage the 2 claws and remove the rear seat cover cap RH as shown in the illustration.

  2. REMOVE NO. 1 RECLINING ADJUSTER RELEASE HANDLE RH (for Manual Seat)

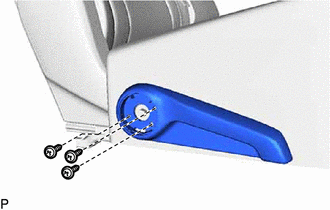

    1. B005QH5

      Remove the 3 screws and No. 1 reclining adjuster release handle RH.

  3. REMOVE POWER SEAT SWITCH ASSEMBLY (for Power Seat)

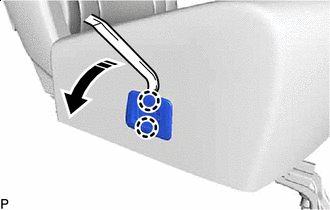

    1. B005OFWC01
      B007Z37 Remove in this Direction

      Using a moulding remover A, disengage the 2 claws as shown in the illustration.

    2. B005Q8N

      Disconnect the connector to remove the power seat switch assembly.

  4. REMOVE REAR POWER SEAT SWITCH RH (for Power Seat)

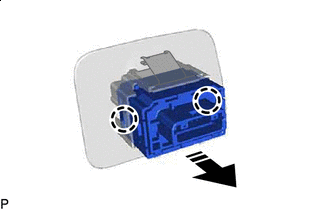

    1. B005PLPC01
      B007Z37 Remove in this Direction

      Disengage the 2 claws and remove the rear power seat switch RH as shown in the illustration.

  5. DISCONNECT SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD

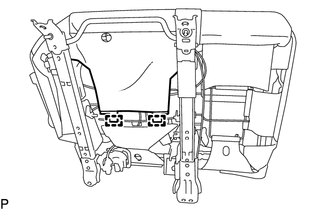

    1. B007Y7T

      Disengage the 2 hooks to disconnect the separate type rear seat cushion cover with pad.

  6. REMOVE SEAT HEATER CONTROL SUB-ASSEMBLY (w/ Seat Heater System)

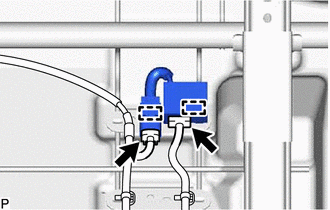

    1. B007YKZ

      Disconnect the 2 connectors.

    2. Disengage the 2 clamps to remove the seat heater control sub-assembly.

  7. REMOVE CONNECTOR BRACKET (w/o Seat Belt Warning System)

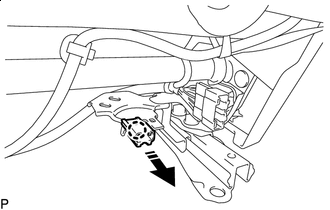

    1. B005PQYC01
      B007Z37 Remove in this Direction

      Disengage the claw and remove the connector bracket as shown in the illustration.

  8. REMOVE CONNECTOR MALE HOUSING (for Manual Seat)


    1. w/o Seat Heater System:

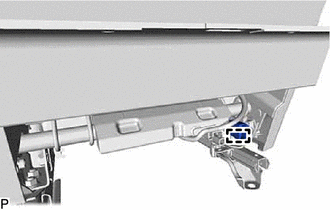

      1. B005L1H

        Disengage the clamp to remove the connector male housing.

  9. REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD

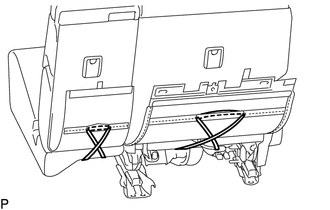

    1. B005Q33

      Disconnect the 2 rubber bands.

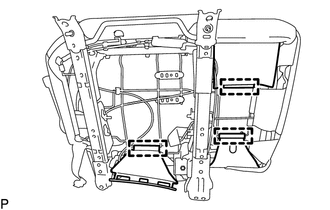

    2. B005MNQ

      Disengage the 3 hooks.

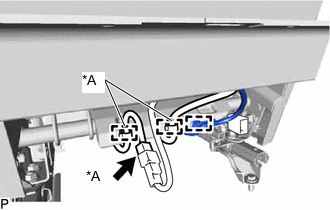

    3. B005MDHC01
      *A w/ Seat Heater System

      for Manual Seat:


      1. w/ Seat Heater System:


        1. Disconnect the connector.

        2. Disengage the 2 clamps and remove the rear seat wire RH.

      2. Disengage the clamp.

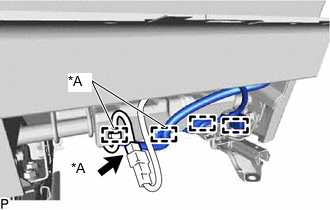

    4. B005NCRC01
      *A w/ Seat Heater System

      for Power Seat:


      1. Disengage the 2 clamps.

      2. w/ Seat Heater System:


        1. Disconnect the connector.

        2. Disengage the 2 clamps.

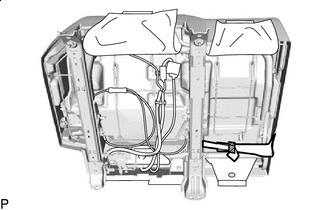

    5. B005Q0PC01
      B007ZL6 Fastener

      for Manual Seat:


      1. Disengage the fastener.

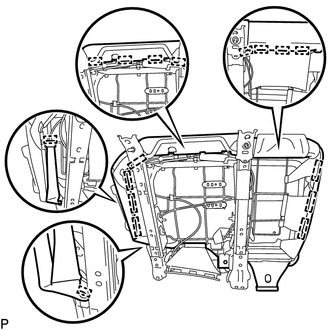

    6. B005OQK

      Disengage each hook and remove the separate type rear seat cushion cover with pad.

  10. REMOVE SEPARATE TYPE REAR SEAT CUSHION COVER

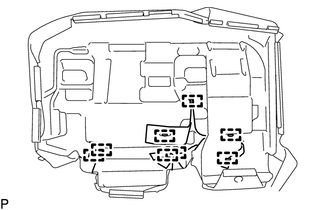

    1. B00804I

      Remove the 8 hog rings.

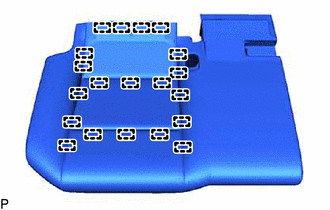

    2. B00803A

      Remove the 20 hog rings and separate type rear seat cushion cover from the separate type rear seat cushion pad.

  11. REMOVE SEAT COVER WIRE

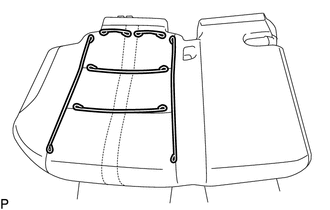

    1. B005NR6

      Remove the 6 seat cover wires.

  12. REMOVE SEAT CUSHION FELT RH

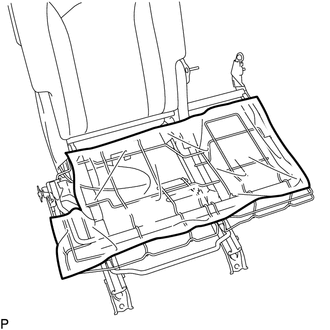

    1. B005Q97

      Remove the seat cushion felt RH.

  13. REMOVE REAR SEAT 3 POINT TYPE BELT ASSEMBLY RH

    Click here

  14. REMOVE REAR SEATBACK COVER (w/o Telematics Transceiver)

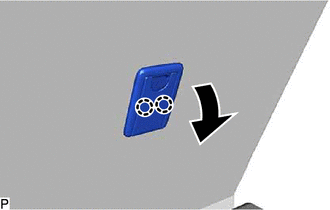

    1. B005ONV

      Disengage the 2 claws as shown in the illustration.

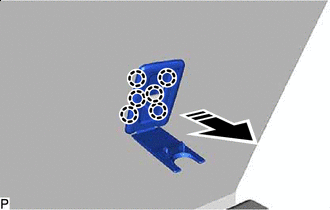

    2. B007WS7C01
      B007Z37 Remove in this Direction

      Disengage the 6 claws and remove the rear seatback cover as shown in the illustration.

  15. REMOVE REAR SEATBACK BOARD SUB-ASSEMBLY

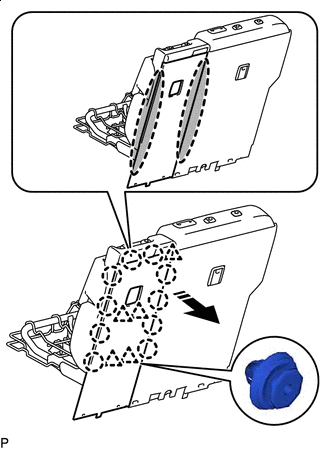

    1. B005LRNC01
      B008043 Place Hand Here
      B007Z37 Remove in this Direction

      Disengage the 10 claws and 5 clips to remove the rear seatback board sub-assembly as shown in the illustration.

  16. REMOVE CENTER ARMREST HINGE COVER LH

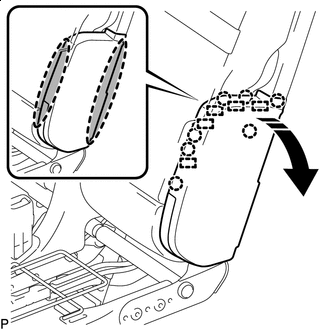

    1. B005OWTC01
      B008043 Place Hand Here
      B007Z37 Remove in this Direction

      Disengage the 7 claws and 5 guides as indicated by the arrows, in the order shown in the illustration to remove the center armrest hinge cover LH.

  17. REMOVE NO. 1 SEAT ARMREST ASSEMBLY

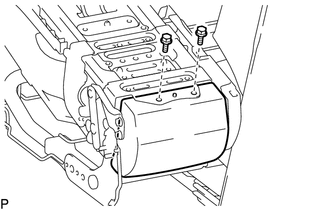

    1. B005Q0W

      Remove the 2 bolts.

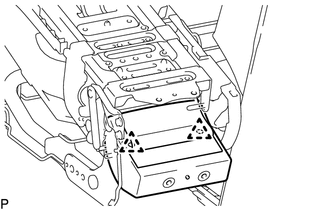

    2. B005LTL

      Using a clip remover, disengage the 2 clips to remove the No. 1 seat armrest assembly.

  18. REMOVE ARMREST ASSEMBLY

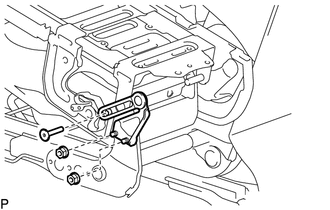

    1. B005M6R

      Using a T45 "TORX" socket wrench, remove the bolt.

    2. Remove the 2 nuts and rear seatback center hinge sub-assembly.

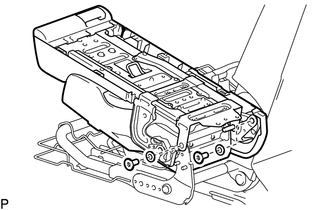

    3. B005MEN

      Using a T45 "TORX" socket wrench, remove the 2 bolts and 2 rear seat reclining spacers.

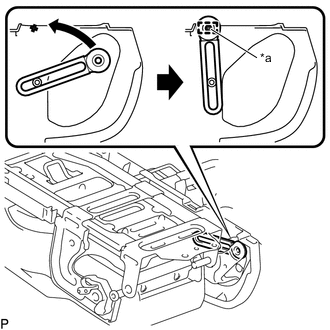

    4. B005NM9C01
      *a Pin

      Engage the rear seatback hinge to the pin of the center armrest hinge cover RH as shown in the illustration.

      Note

      If the rear seatback hinge is not engaged to the pin of the center armrest hinge cover RH, the armrest assembly cannot be removed as it will interfere with the rear seatback frame sub-assembly RH.

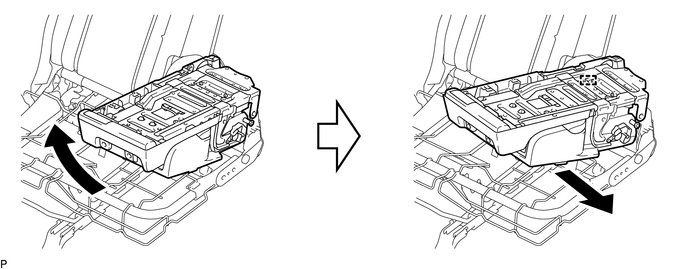

    5. Disengage the pin and remove the armrest assembly as shown in the illustration.

      B005PFP

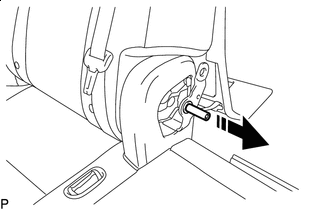

    6. B005P7SC01
      B007Z37 Remove in this Direction

      Remove the rear seat center armrest plate as shown in the illustration.

  19. REMOVE CENTER ARMREST HINGE COVER RH

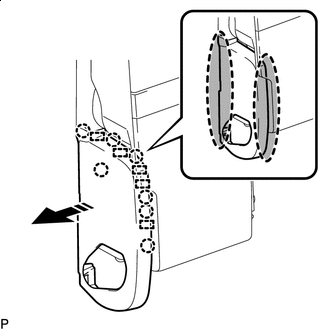

    1. B005LGPC01
      B008043 Place Hand Here
      B007Z37 Remove in this Direction

      Disengage the 7 claws and 5 guides to remove the center armrest hinge cover RH as shown in the illustration.

  20. REMOVE REAR SEAT CENTER ARMREST ASSEMBLY

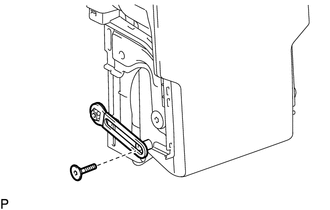

    1. B005OQE

      Using a T45 "TORX" socket wrench, remove the bolt and rear seatback hinge.

    2. Pull the rear seat center armrest assembly forward as shown in the illustration.

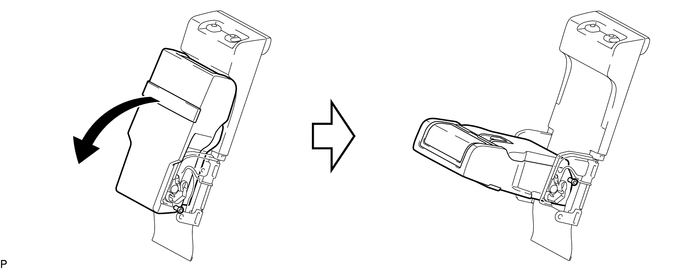

      B005OFS

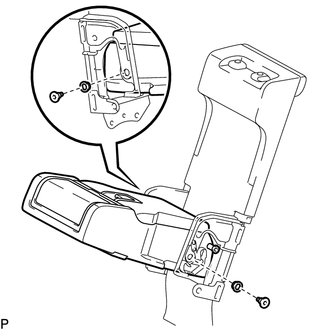

    3. B005QCL

      Using a T45 "TORX" socket wrench, remove the 2 bolts and 2 No. 2 rear seat reclining spacers.

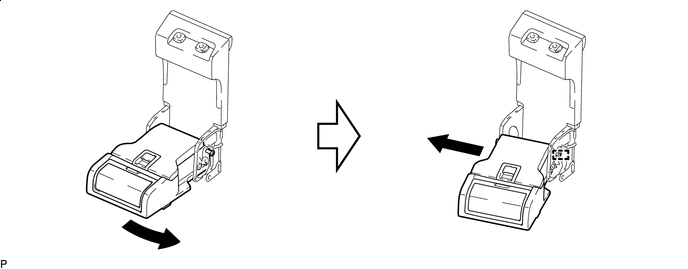

    4. Disengage the guide and remove the rear seat center armrest assembly as shown in the illustration.

      B005L8HC01

  21. REMOVE REAR SEAT CENTER ARMREST COVER

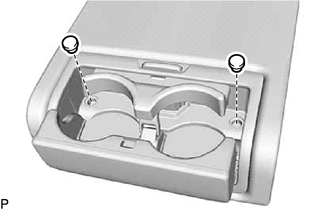

    1. B005NGT

      Remove the 2 rear seat center armrest covers.

  22. REMOVE CUP HOLDER ASSEMBLY

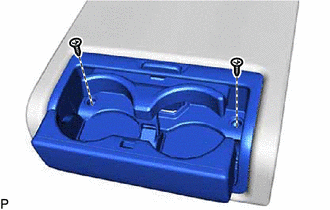

    1. B005MO4

      Remove the 2 screws and cup holder assembly.

  23. REMOVE REAR SEAT CENTER ARMREST DOOR SUB-ASSEMBLY (w/ Console Box Lid)

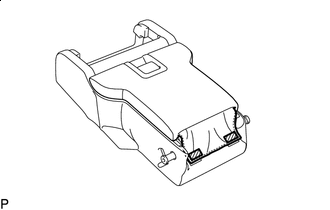

    1. B005L3HC01
      B007ZL6 Fastener

      Disengage the 2 fasteners.

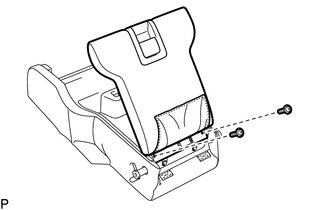

    2. B005PR8

      Remove the 2 screws and rear seat center armrest door sub-assembly.

  24. REMOVE NO. 2 REAR SEAT CENTER ARMREST BOX (w/ Console Box Lid)

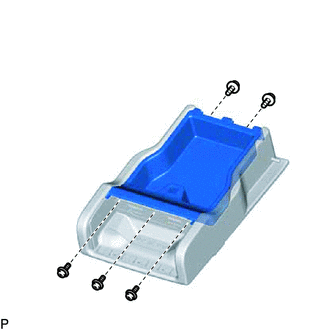

    1. B005M0F

      Remove the 5 screws and No. 2 rear seat center armrest box.

  25. REMOVE NO. 1 SEATBACK COVER

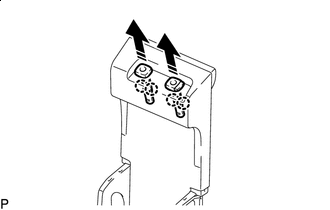

    1. B005LPDC01
      B007Z37 Remove in this Direction

      Disengage the 4 claws and remove the 2 rear seat headrest support assemblies as shown in the illustration.

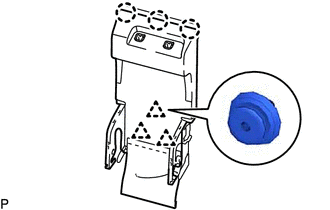

    2. B005MO9

      Disengage the 3 clips and 3 claws, and remove the No. 1 seatback cover.

  26. REMOVE REAR SEAT CENTER ARMREST COVER SUB-ASSEMBLY

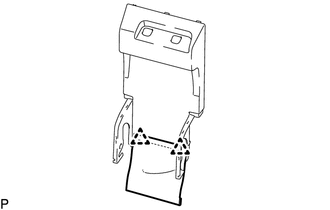

    1. B005PU1

      Using a clip remover, remove the 2 clips and rear seat center armrest cover sub-assembly.

  27. REMOVE REAR SEATBACK LOCK LEVER


    1. B005PN4

      Disengage the retainer as shown in the illustration and remove the fold seatback wire.

    2. B005QDWC01
      B007Z37 Remove in this Direction

      Remove the fold seatback wire as shown in the illustration.

    3. Disengage the guide and claw to remove the rear seatback lock lever as shown in the illustration.

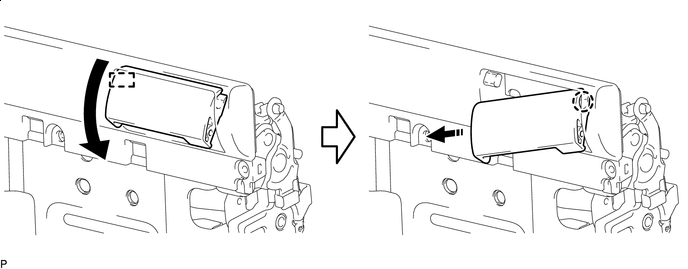

      B005M51C01
      B007Z37 Remove in this Direction - -

  28. REMOVE NO. 2 CENTER SEATBACK COVER


    1. B005MQH

      Remove the 3 screws and No. 2 center seatback cover.

  29. REMOVE REAR SEATBACK LOCK ASSEMBLY RH


    1. B005N69

      Remove the 2 bolts and rear seatback lock assembly RH.

  30. REMOVE REAR SEATBACK COVER RH


    1. B005ONV

      Disengage the 2 claws as shown in the illustration.

    2. B007WS7C01
      B007Z37 Remove in this Direction

      Disengage the 6 claws and remove the rear seatback cover RH as shown in the illustration.

  31. REMOVE REAR SEATBACK BOARD CARPET ASSEMBLY RH

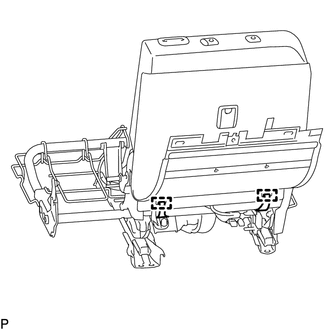

    1. B005OZ7

      Disengage the 2 hooks.

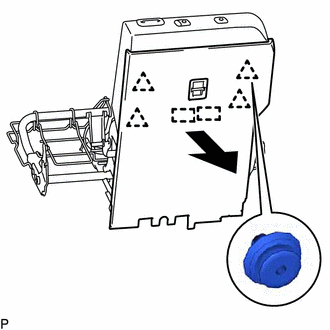

    2. B005PUQ

      Disengage the 4 clips and 2 guides as shown in the illustration.

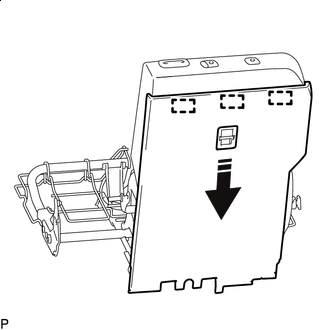

    3. B005M25C01
      B007Z37 Remove in this Direction

      Disengage the 3 guides to remove the rear seatback board carpet assembly RH as shown in the illustration.

  32. DISCONNECT REAR CENTER SEAT OUTER BELT ASSEMBLY

    Click here

  33. REMOVE SEAT BELT ANCHOR COVER CAP

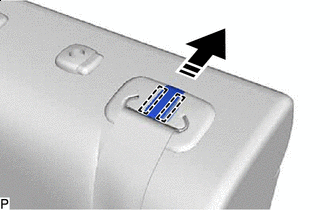

    1. B005NC1C01
      B007Z37 Remove in this Direction

      Disengage the 2 guides to remove the seat belt anchor cap as shown in the illustration.

  34. REMOVE REAR SEAT SHOULDER BELT COVER

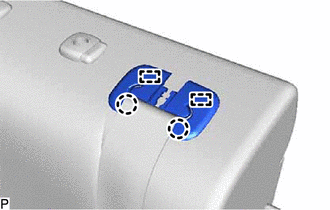

    1. B005NDU

      Disengage the 2 claws and 2 guides and pass the rear center seat outer belt assembly through the rear seat shoulder belt cover to remove the rear seat shoulder belt cover.

  35. REMOVE SEPARATE TYPE REAR SEATBACK COVER WITH PAD

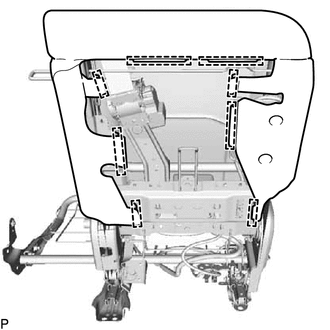

    1. B005P0K

      Disengage each hook.

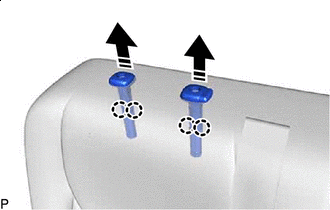

    2. B005NZ6C01
      B007Z37 Remove in this Direction

      Disengage the 4 claws and remove the 2 rear No. 1 seat headrest supports as shown in the illustration.

    3. for Manual Seat:

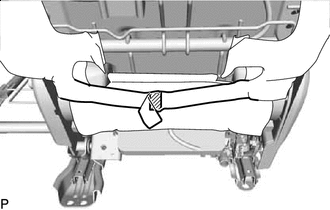

      1. B005N9IC01
        B007ZL6 Fastener

        Disengage the fastener.

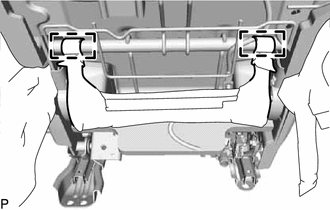

      2. B005MN2

        Disengage the 2 hooks.

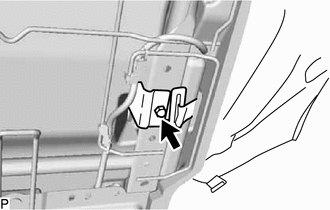

    4. B005NFG

      Remove the nut and disconnect the 2 rear seatback cover brackets.

    5. Remove the separate type rear seatback cover with pad.

  36. REMOVE SEPARATE TYPE REAR SEATBACK COVER


    1. B007YJT

      for Manual Seat:


      1. Remove the 11 hog rings and the separate type rear seatback cover from the separate type seatback pad.

    2. for Power Seat:


      1. B007Z05

        Remove the hog ring.

      2. B007YJT

        Remove the 11 hog rings and the separate type rear seatback cover from the separate type seatback pad.

  37. REMOVE SEAT COVER WIRE

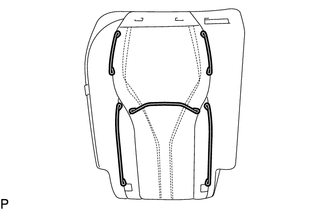

    1. B005LB1

      Remove the 5 seat cover wires.

  38. REMOVE SEATBACK FELT RH

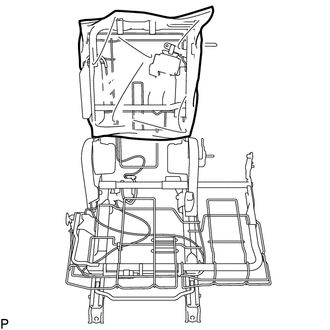

    B005MYW

    1. Remove the seatback felt RH.

  39. REMOVE REAR CENTER SEAT OUTER BELT ASSEMBLY

    Click here

  40. REMOVE REAR SEAT AIRBAG ASSEMBLY RH

    Tech Tips

    Use the same procedure as for the LH side.

    Click here

  41. REMOVE NO. 1 RECLINING LINK COVER LH (for Manual Seat)

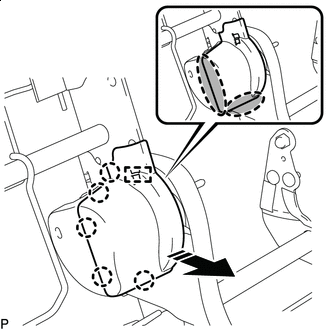

    1. B005NLWC01
      B008043 Place Hand Here
      B007Z37 Remove in this Direction

      Disengage the 5 claws and guide to remove the No. 1 reclining link cover LH as shown in the illustration.

  42. REMOVE NO. 2 RECLINING LINK COVER LH (for Manual Seat)

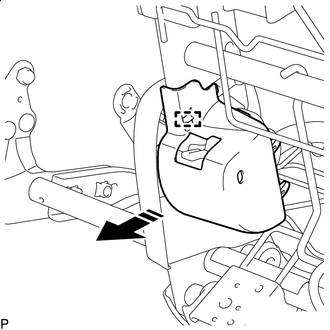

    1. B005M2IC01
      B007Z37 Remove in this Direction

      Disengage the guide to remove the No. 2 reclining link cover LH as shown in the illustration.

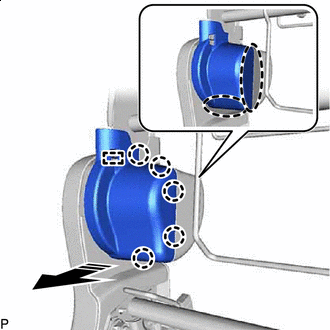

  43. REMOVE NO. 1 RECLINING LINK COVER RH (for Manual Seat)


    1. B005OBBC01
      B008043 Place Hand Here
      B007Z37 Remove in this Direction

      Disengage the 5 claws and guide to remove the No. 1 reclining link cover RH as shown in the illustration.

  44. REMOVE NO. 2 RECLINING LINK COVER RH (for Manual Seat)

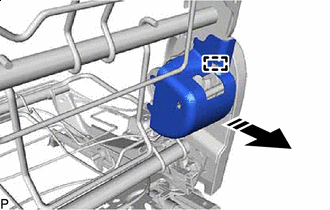

    1. B005ODJC01
      B007Z37 Remove in this Direction

      Disengage the guide to remove the No. 2 reclining link cover RH as shown in the illustration.

  45. REMOVE REAR SEATBACK PROTECTOR (for Power Seat)

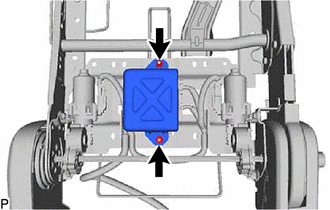

    1. B005QDV

      Remove the 2 nuts and rear seatback protector.

  46. REMOVE FOLD SEAT CONTROL ECU (for Power Seat)

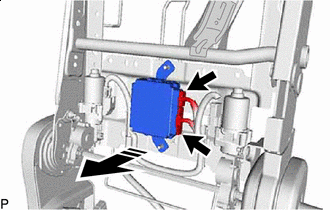

    1. B005M3OC01
      B007Z37 Remove in this Direction

      Disconnect the 2 connectors and remove the fold seat control ECU as shown in the illustration.

  47. REMOVE REAR SEAT WIRE RH (for Power Seat)

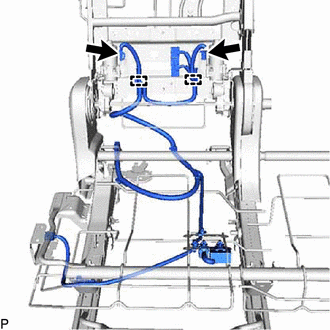

    1. B005PIX

      Disconnect the 2 connectors.

    2. Disengage the 2 clamps and remove the rear seat wire RH.

  48. REMOVE RECLINING ADJUSTER INSIDE COVER LH

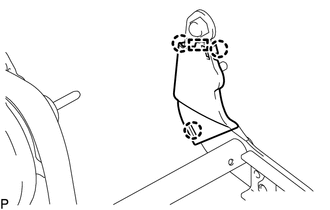

    1. B005LBC

      Disengage the 3 claws and guide to remove the reclining adjuster inside cover LH.

  49. REMOVE REAR SEATBACK MOULDING RH

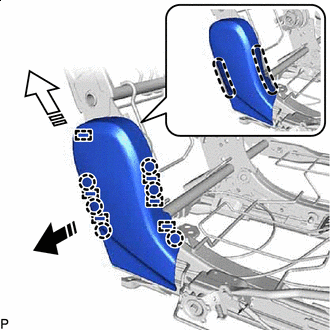

    1. B005N89C01
      B008043 Place Hand Here
      B007Z37 Remove in this Direction (1)
      B007YXL Remove in this Direction (2)

      Disengage the 6 claws and 6 guides as indicated by the arrows, in the order shown in the illustration to remove the rear seatback moulding RH.

  50. REMOVE RECLINING ADJUSTER INSIDE COVER RH

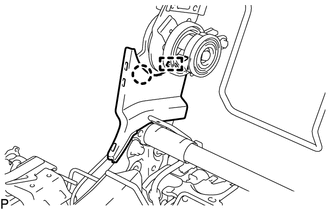

    1. B005LFD

      Disengage the claw and guide to remove the reclining adjuster inside cover RH.

  51. REMOVE REAR SEAT INNER RECLINING COVER RH

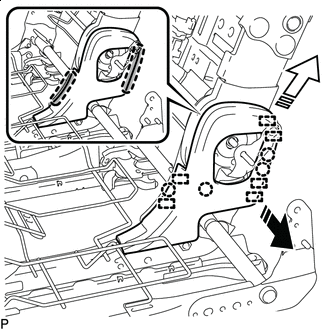

    1. B005MKWC01
      B008043 Place Hand Here
      B007Z37 Remove in this Direction (1)
      B007YXL Remove in this Direction (2)

      Disengage the 4 claws and 6 guides as indicated by the arrows, in the order shown in the illustration to remove the rear seat inner reclining cover RH.

  52. REMOVE RECLINING ADJUSTER INSIDE COVER LH (for Power Seat)

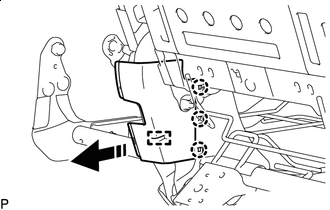

    1. B005OMWC01
      B007Z37 Remove in this Direction

      Disengage the 3 claws and guide to remove the reclining adjuster inside cover LH as shown in the illustration.

  53. REMOVE RECLINING ADJUSTER INSIDE COVER LH (for Power Seat)

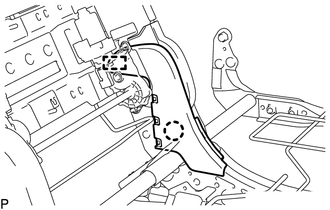

    1. B005PN3

      Disengage the claw and guide to remove the reclining adjuster inside cover LH.

  54. REMOVE RECLINING ADJUSTER INSIDE COVER LH (for Manual Seat)

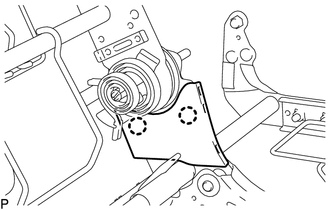

    1. B005M4Z

      Disengage the 2 claws to remove the reclining adjuster inside cover LH.

  55. REMOVE UPPER NO. 2 REAR SEATBACK MOULDING (for Power Seat)

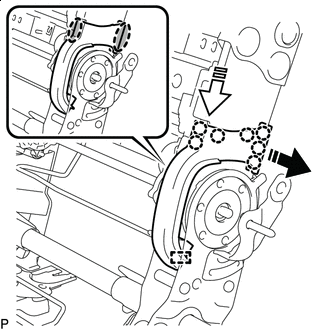

    1. B005M0WC01
      B008043 Place Hand Here
      B007Z37 Remove in this Direction (1)
      B007YXL Remove in this Direction (2)

      Disengage the 7 claws and guide as indicated by the arrows, in the order shown in the illustration to remove the upper No. 2 rear seatback moulding.

  56. REMOVE UPPER NO. 1 REAR SEATBACK MOULDING (for Power Seat)

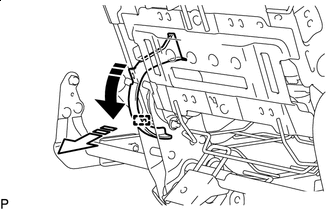

    1. B005NAZC01
      B007Z37 Remove in this Direction (1)
      B007YXL Remove in this Direction (2)

      Disengage the guide and remove the upper No. 1 rear seatback moulding as indicated by the arrows, in the order shown in the illustration.

  57. REMOVE REAR SEAT RECLINING CONTROL CABLE (for Manual Seat)

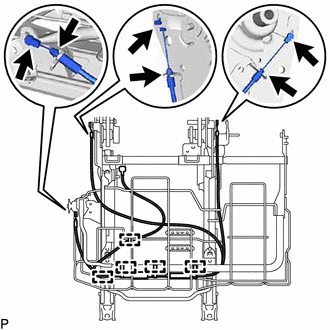

    1. B005LTR

      Remove the 5 cable clamps.

    2. Disengage the 6 cable clamps and remove the rear seat reclining control cable.

  58. REMOVE REAR SEAT LEG PLATE SUB-ASSEMBLY RH

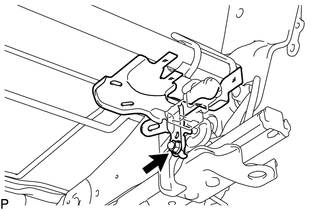

    1. B005PGE

      Remove the nut and rear seat leg plate sub-assembly RH.

  59. REMOVE REAR SEATBACK FRAME SUB-ASSEMBLY RH

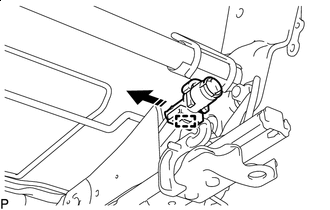

    1. B005O34C01
      B007Z37 Remove in this Direction

      Disengage the clamp to remove the joint case as shown in the illustration.

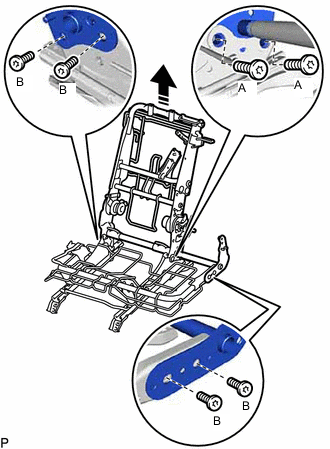

    2. B005OJTC01
      B007Z37 Remove in this Direction

      Using a T55 "TORX" socket wrench, remove the 2 bolts (A).

    3. Using a T40 "TORX" socket wrench, remove the 4 bolts (B) and rear seatback frame sub-assembly RH from the rear seat cushion frame sub-assembly RH as shown in the illustration.
