POWER WINDOW CONTROL SYSTEM PARTS LOCATION

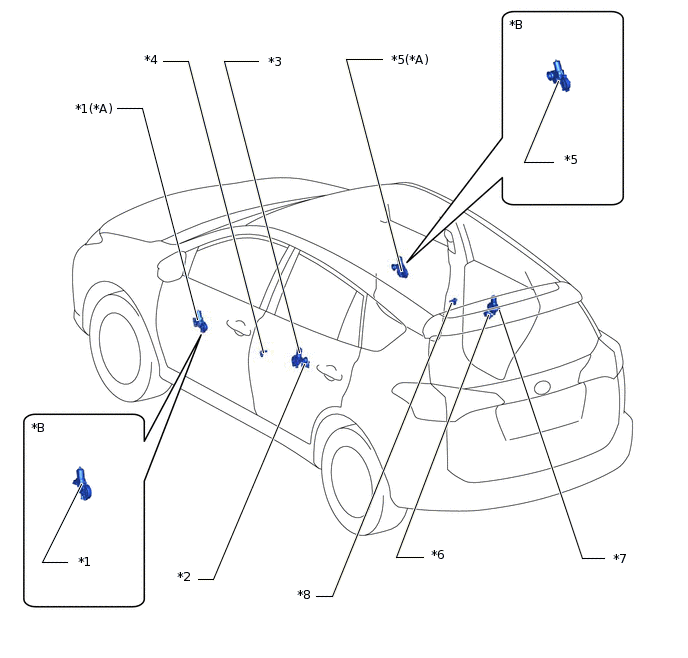

ILLUSTRATION
*A |
for LHD |
*B |
for RHD |
*1 |
FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY LH |
*2 |
REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY LH |
*3 |
REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY LH |
*4 |
FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH |
*5 |
FRONT POWER WINDOW REGULATOR MOTOR ASSEMBLY RH |
*6 |
REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY RH |
*7 |
REAR POWER WINDOW REGULATOR MOTOR ASSEMBLY RH |
*8 |
FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH |

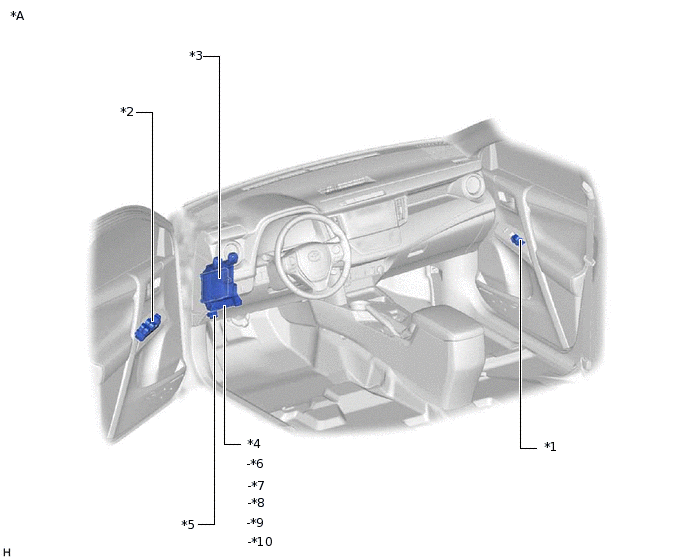

ILLUSTRATION
*A |
for LHD |
- |
- |
*1 |
POWER WINDOW REGULATOR SWITCH ASSEMBLY |
*2 |
POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY |
*3 |
MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
*4 |
INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY |
*5 |
DLC3 |
*6 |
POWER RELAY |
*7 |
- P/W MAIN FUSE |
*8 |
- DOOR D FUSE |
*9 |
- DOOR R/L FUSE |
*10 |
- DOOR R/R FUSE |
ILLUSTRATION
*A |
for RHD |
- |
- |
*1 |
POWER WINDOW REGULATOR SWITCH ASSEMBLY |
*2 |
POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY |
*3 |
DLC3 |
*4 |
MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
*5 |
INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY |
*6 |
POWER RELAY |
*7 |
P/W MAIN FUSE |
*8 |
DOOR D FUSE |
*9 |
DOOR R/L FUSE |
*10 |
DOOR R/R FUSE |
