REAR DOOR LOCK COMPONENTS

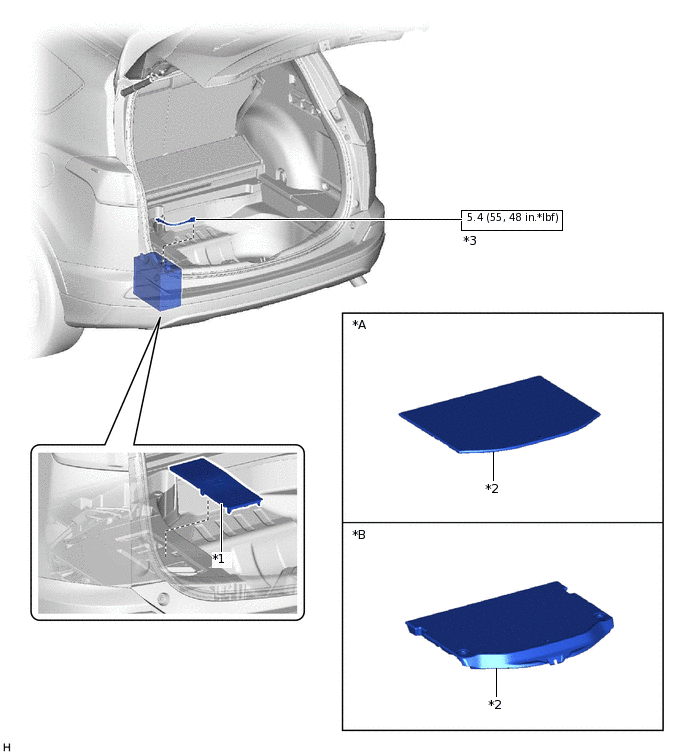

ILLUSTRATION
*A |
for Compact Spare Tire, w/o Spare Tire |
*B |
for Full Size Spare Tire |
*1 |
BATTERY SERVICE COVER |
*2 |
DECK BOARD ASSEMBLY |
*3 |
NEGATIVE AUXILIARY BATTERY TERMINAL |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

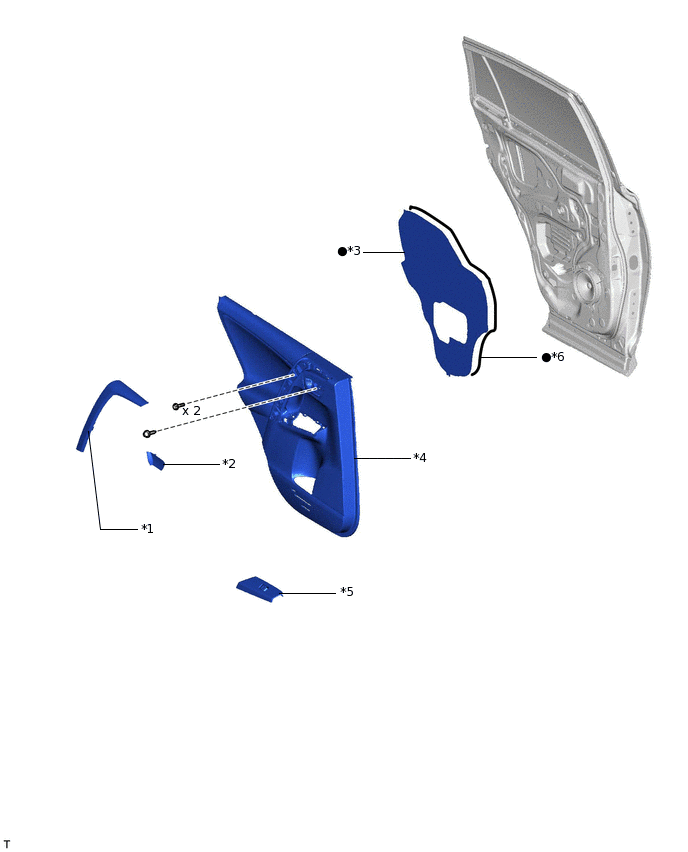

ILLUSTRATION
*1 |
DOOR ASSIST GRIP COVER LH |
*2 |
REAR DOOR INSIDE HANDLE BEZEL PLUG LH |
*3 |
REAR DOOR SERVICE HOLE COVER LH |
*4 |
REAR DOOR TRIM BOARD SUB-ASSEMBLY LH |
*5 |
REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL |
*6 |
BUTYL TAPE |
● |
Non-reusable part |
- |
- |

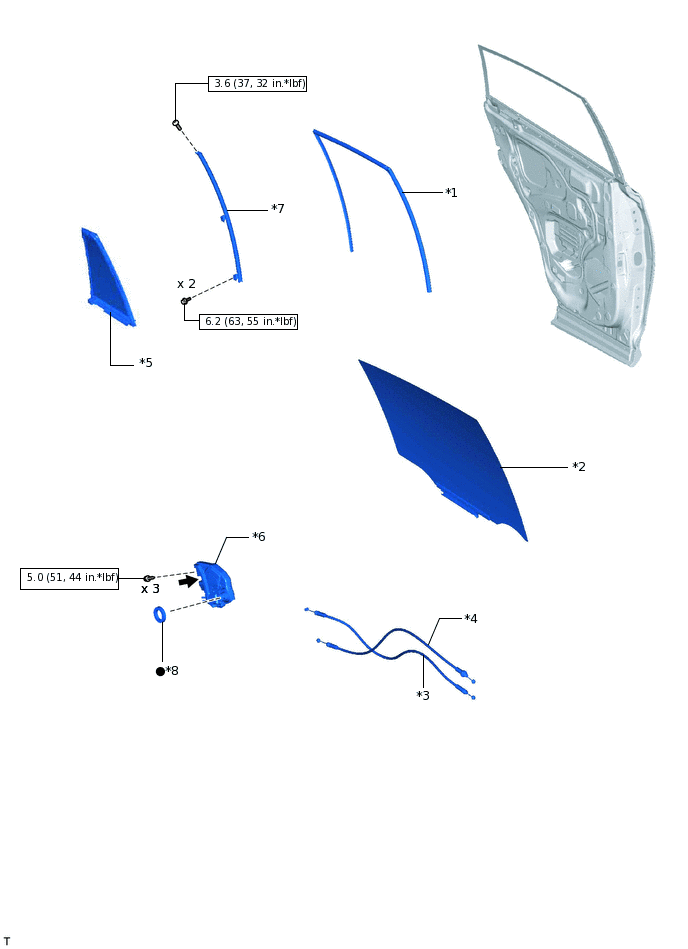

ILLUSTRATION
*1 |
REAR DOOR GLASS RUN LH |
*2 |
REAR DOOR GLASS SUB-ASSEMBLY LH |
*3 |
REAR DOOR INSIDE LOCKING CABLE ASSEMBLY LH |
*4 |
REAR DOOR LOCK REMOTE CONTROL CABLE ASSEMBLY LH |
*5 |
REAR DOOR QUARTER WINDOW GLASS LH |
*6 |
REAR DOOR WITH MOTOR LOCK ASSEMBLY LH |
*7 |
REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY LH |
*8 |
DOOR LOCK WIRING HARNESS SEAL |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
 |
MP grease |
- |
- |
