VSC OFF SWITCH REMOVAL

PROCEDURE

1. REMOVE NO. 1 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

   Click here

2. REMOVE LOWER INSTRUMENT PANEL FINISH PANEL

   Click here

3. REMOVE VSC OFF SWITCH

   1.

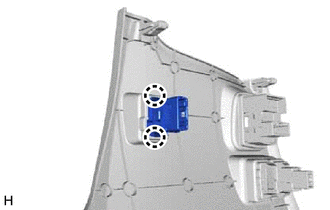

      Disengage the 2 claws to remove the VSC OFF switch from the lower instrument panel finish panel.
