CAN COMMUNICATION SYSTEM
Figure 1. LHD Models
| *A | Models with Pre-crash Safety System | *B | Models with Seat Position Memory Function |
| *C | Models with Lane Departure Alert System | *D | Models with Triple Beam Headlight |
| *1 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | *2 | POWER STEERING ECU ASSEMBLY |
| *3 | OUTER MIRROR CONTROL ECU ASSEMBLY (RH) | *4 | LANE DEPARTURE WARNING CAMERA |
| *5 | HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY LH | *6 | ECM |
| *7 | SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) | *8 | OUTER MIRROR CONTROL ECU ASSEMBLY (LH) |
Figure 2. RHD Models
| *A | Models with Pre-crash Safety System | *B | Models with Seat Position Memory Function |
| *C | Models with Lane Departure Alert System | *D | Models with Triple Beam Headlight |
| *1 | MILLIMETER WAVE RADAR SENSOR ASSEMBLY | *2 | POWER STEERING ECU ASSEMBLY |
| *3 | OUTER MIRROR CONTROL ECU ASSEMBLY (RH) | *4 | LANE DEPARTURE WARNING CAMERA |
| *5 | HEADLIGHT LIGHT CONTROL ECU SUB-ASSEMBLY LH | *6 | ECM |
| *7 | SKID CONTROL ECU (BRAKE ACTUATOR ASSEMBLY) | *8 | OUTER MIRROR CONTROL ECU ASSEMBLY (LH) |
| *A | Models with Blind Spot Monitor System | - | - |
| *1 | BLIND SPOT MONITOR SENSOR LH | - | - |
Figure 3. LHD Models
| *A | Models with Pre-crash Safety System | *B | Models with Network Gateway ECU |
| *C | Models with ASC System | *D | Models with Power Tilt and Power Telescopic System |
| *E | Models with Single Beam Headlight | - | - |
| *1 | DRIVING SUPPORT ECU ASSEMBLY | *2 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *3 | NETWORK GATEWAY ECU | *4 | STEREO COMPONENT EQUALIZER ASSEMBLY |
| *5 | AIRBAG ECU ASSEMBLY | *6 | YAWRATE SENSOR |
| *7 | RADIO RECEIVER ASSEMBLY | *8 | MULTIPLEX TILT AND TELESCOPIC ECU |
| *9 | HEADLIGHT LEVELING ECU ASSEMBLY | *10 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) |
| *11 | HYBRID VEHICLE CONTROL ECU ASSEMBLY | - | - |
| *a | Refer to Service Bulletin for the installation position of the part. | - | - |

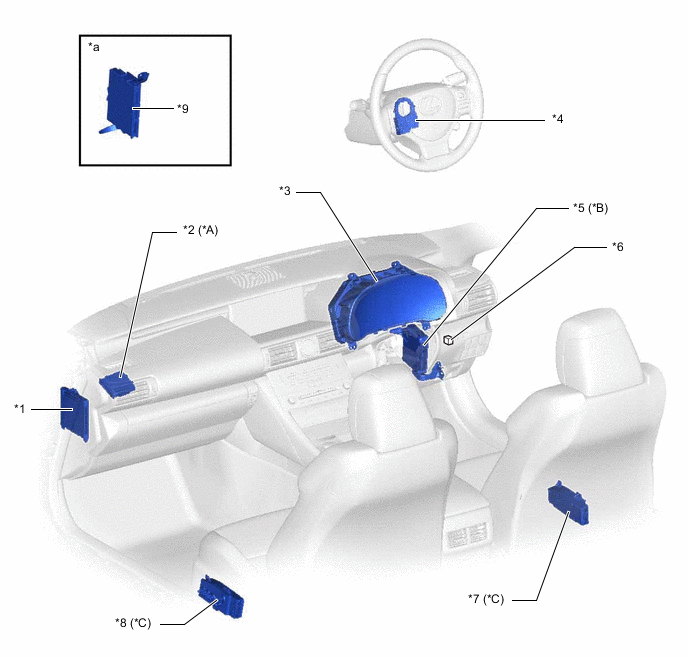

Figure 4. LHD Models
| *A | Models with LEXUS Parking Assist-sensor System | *B | Models with Adaptive Variable Suspension System |
| *C | Models with Seat Position Memory Function | - | - |
| *1 | STEERING SENSOR | *2 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *3 | CLEARANCE WARNING ECU ASSEMBLY | *4 | COMBINATION METER ASSEMBLY |
| *5 | NO. 1 CAN JUNCTION TERMINAL | *6 | ABSORBER CONTROL ECU |
| *7 | POSITION CONTROL ECU AND SWITCH ASSEMBLY RH | *8 | POSITION CONTROL ECU AND SWITCH ASSEMBLY LH |
| *9 | DLC3 | - | - |
Figure 5. RHD Models
| *A | Models with Network Gateway ECU | *B | Models with Power Tilt and Power Telescopic System |
| *C | Models with Pre-crash Safety System | *D | Models with Single Beam Headlight |
| *1 | NETWORK GATEWAY ECU | *2 | AIR CONDITIONING AMPLIFIER ASSEMBLY |
| *3 | MULTIPLEX TILT AND TELESCOPIC ECU | *4 | DRIVING SUPPORT ECU ASSEMBLY |
| *5 | DLC3 | *6 | AIRBAG ECU ASSEMBLY |
| *7 | YAWRATE SENSOR | *8 | RADIO RECEIVER ASSEMBLY |
| *9 | HEADLIGHT LEVELING ECU ASSEMBLY | *10 | STEREO COMPONENT EQUALIZER ASSEMBLY |
Figure 6. RHD Models
| *A | Models with LEXUS Parking Assist-sensor System | *B | Models with Adaptive Variable Suspension System |
| *C | Models with Seat Position Memory Function | - | - |
| *1 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) | *2 | CLEARANCE WARNING ECU ASSEMBLY |
| *3 | COMBINATION METER ASSEMBLY | *4 | STEERING SENSOR |
| *5 | ABSORBER CONTROL ECU | *6 | NO. 1 CAN JUNCTION TERMINAL |
| *7 | POSITION CONTROL ECU AND SWITCH ASSEMBLY RH | *8 | POSITION CONTROL ECU AND SWITCH ASSEMBLY LH |
| *9 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | - | - |
| *a | Refer to Service Bulletin for the installation position of the part. | - | - |
