VACUUM PUMP(for V35A-FTS) COMPONENTS

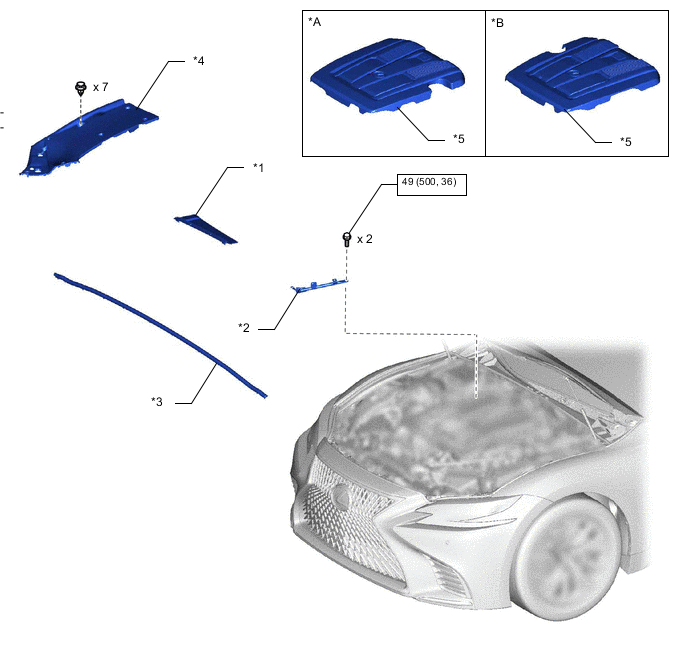

ILLUSTRATION
| *A | for 2WD | *B | for AWD |
| *1 | CENTER NO. 2 COWL TOP VENTILATOR LOUVER | *2 | FENDER APRON BRACE SUB-ASSEMBLY RH |
| *3 | HOOD TO COWL TOP SEAL | *4 | RADIATOR COVER PLATE |
| *5 | V-BANK COVER SUB-ASSEMBLY | - | - |
 |
N*m (kgf*cm, ft.*lbf): Specified torque | - | - |

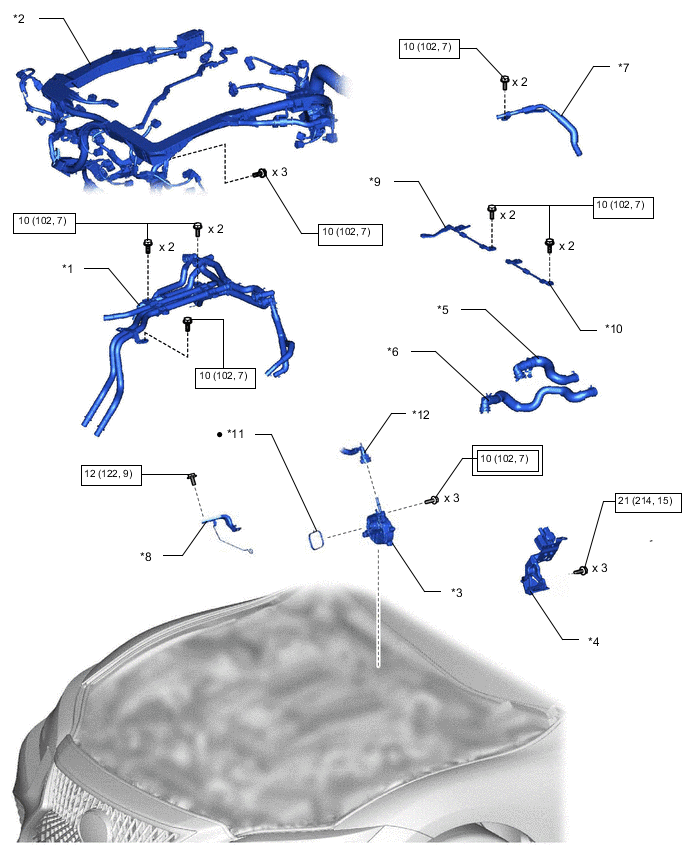

ILLUSTRATION
| *1 | ENGINE WIRE HARNESS | *2 | FUEL VAPOR FEED PIPE |
| *3 | INLET HEATER WATER HOSE | *4 | NO. 1 VACUUM SWITCHING VALVE ASSEMBLY |
| *5 | NO. 1 WATER BY-PASS TUBE | *6 | OUTLET HEATER WATER HOSE |
| *7 | VACUUM PUMP ASSEMBLY | *8 | WIRING HARNESS CLAMP BRACKET |
| *9 | NO. 1 V-BANK COVER BRACKET | *10 | NO. 2 V-BANK COVER BRACKET |
| *11 | NO. 1 VACUUM PUMP O-RING | - | - |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) | |
N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part | - | - |

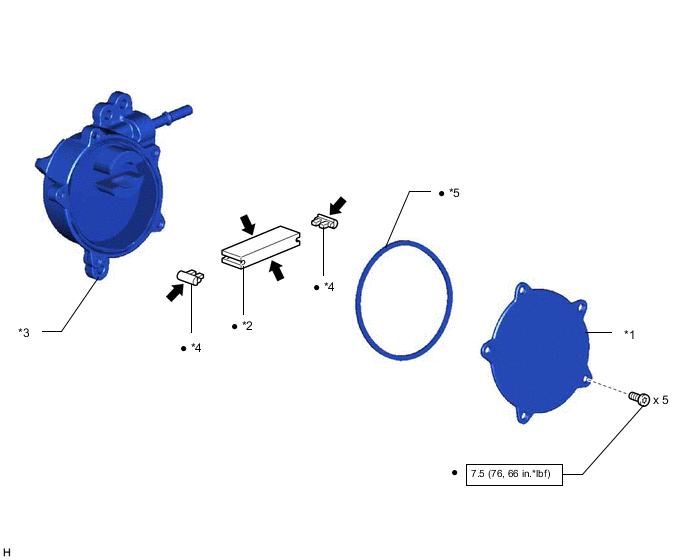

ILLUSTRATION
| *1 | END COVER | *2 | VACUUM PUMP VANE |
| *3 | VACUUM PUMP HOUSING | *4 | VACUUM PUMP VANE CAP |
| *5 | VACUUM PUMP COVER O-RING | - | - |
| |
N*m (kgf*cm, ft.*lbf): Specified torque | ● | Non-reusable part |
 |
Engine Oil | - | - |
