CANISTER(w/o Canister Pump Module) INSPECTION

PROCEDURE

1. CHECK CHARCOAL CANISTER ASSEMBLY

   1. Visually check the fuel suction plate sub-assembly (canister).

      1. Visually check the fuel suction plate sub-assembly (canister) for cracks or damage.

      2. If cracks or damage are found, replace the fuel suction plate sub-assembly (canister).

   2.

      *a	Port A
      *b	Port B
      *c	Port C
      	Air

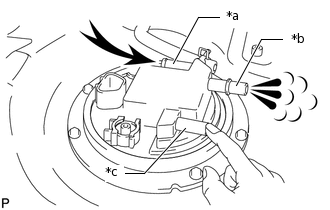

      Close port C, apply compressed air to port A and check that air flows out from port B.

      If the result is not as specified, replace the fuel suction plate sub-assembly (canister).

   3.

      *a	Port A
      *b	Port B
      *c	Port C
      	Air

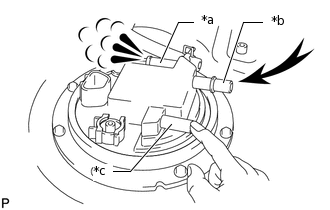

      Close port C, apply compressed air to port B and check that air flows out from port A.

      If the result is not as specified, replace the fuel suction plate sub-assembly (canister).

   4.

      *a	Port A
      *b	Port B
      *c	Port C
      	Air

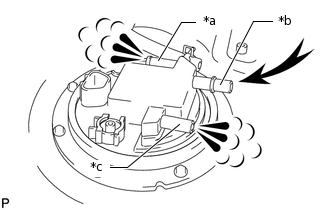

      Apply compressed air to port B and check that air flows out from port A and port C.

      If the result is not as specified, replace the fuel suction plate sub-assembly (canister).

   5.

      *a	Port A
      *b	Port B
      *c	Port C

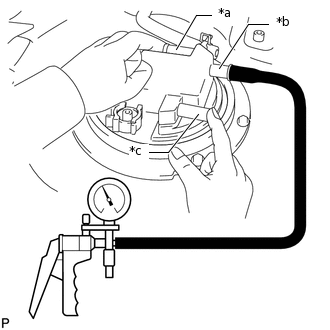

      Close ports A and C, and apply compressed air to port B to check for leaks.

      If the result is not as specified, replace the fuel suction plate sub-assembly (canister).
