SIDE TURN SIGNAL LIGHT ASSEMBLY INSTALLATION

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE

  1. INSTALL SIDE TURN SIGNAL LIGHT BULB

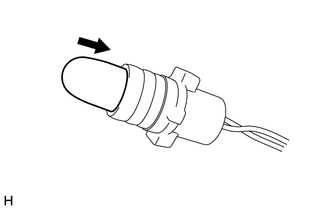

    1. E268857

      Install the side turn signal light bulb to the side turn signal light bulb socket.

  2. INSTALL SIDE TURN SIGNAL LIGHT LENS LH

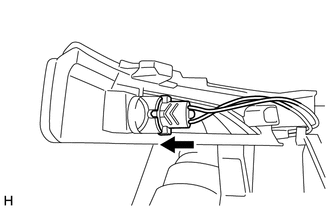

    1. E268855

      Connect the side turn signal light bulb socket to the side turn signal light lens LH.

    2. Attach the guide and claw to install the side turn signal light lens LH.

    3. Attach the 7 claws to install the visor cover LH.
