BRAKE GENERAL MAINTENANCE

PROCEDURE

  1. INSPECT BRAKE PEDAL AND PARKING BRAKE

    1. Check the brake pedal.

      Type

      See procedure

      for LHD

      Click here

      for RHD

      Click here

    2. Check the parking brake.

      Click here

  2. INSPECT BRAKE LININGS AND DRUMS, PADS AND DISCS

    1. Inspect the brake pads and discs.

      Type

      See procedure

      for 16 inch Front Disc Brake

      Click here

      for 17 inch Front Disc Brake

      Click here

      Rear brake

      Click here

    2. Inspect the parking brake linings and drums.

      Click here

  3. INSPECT BRAKE FLUID

    1. Inspect the brake fluid.

      Click here

  4. REPLACE BRAKE FLUID

    1. Replace the brake fluid.

      Click here

  5. INSPECT BRAKE LINE PIPES AND HOSES

    D105797
    Tip:

    Work in a well-lighted area. Turn the front wheels fully to the right or left before beginning the inspection.

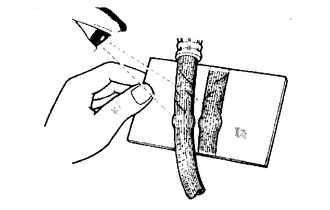

    1. Using a mirror, check the entire circumference and length of the brake lines and hoses for:

      • Damage

      • Wear

      • Deformation

      • Cracks

      • Kinks

      • Corrosion

      • Leaks

      • Twists

    2. Check all the clamps for tightness and check the connections for leakage.

    3. Check that the hoses and lines are not near sharp edges, moving parts or the exhaust system.

    4. Check that the lines are installed properly and pass through the center of the grommets.
