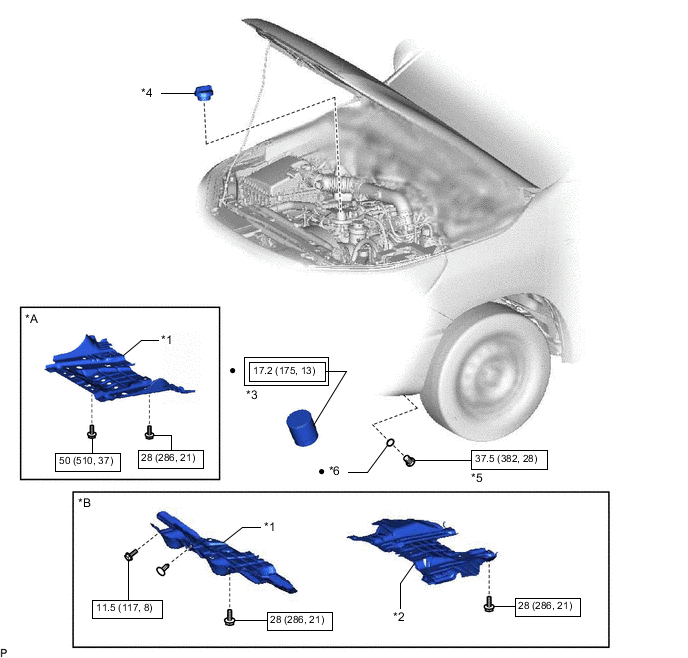

OIL AND OIL FILTER COMPONENTS
ILLUSTRATION
| *A | for 2WD | *B | for 4WD and Pre-Runner |
| *1 | NO. 1 ENGINE UNDER COVER ASSEMBLY | *2 | NO. 2 ENGINE UNDER COVER |
| *3 | OIL FILTER SUB-ASSEMBLY | *4 | OIL FILLER CAP SUB-ASSEMBLY |
| *5 | OIL PAN DRAIN PLUG | *6 | GASKET |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |  |
N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part | - | - |
