FRONT DOOR OUTSIDE MOULDING COMPONENTS

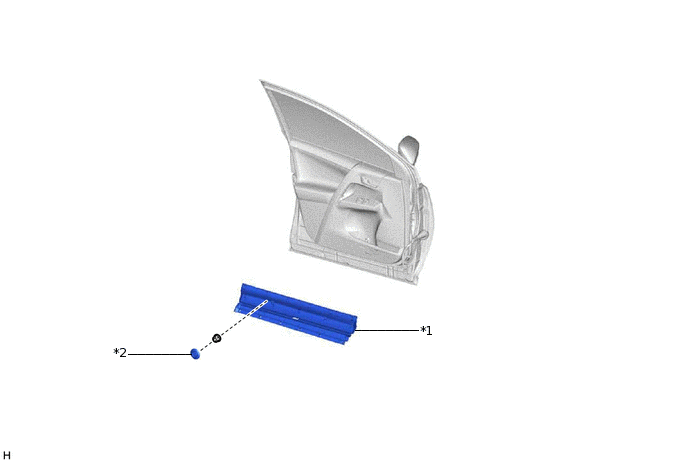

ILLUSTRATION

B340199C03

*1

FRONT DOOR LOWER OUTSIDE MOULDING LH

*2

HOLE PLUG

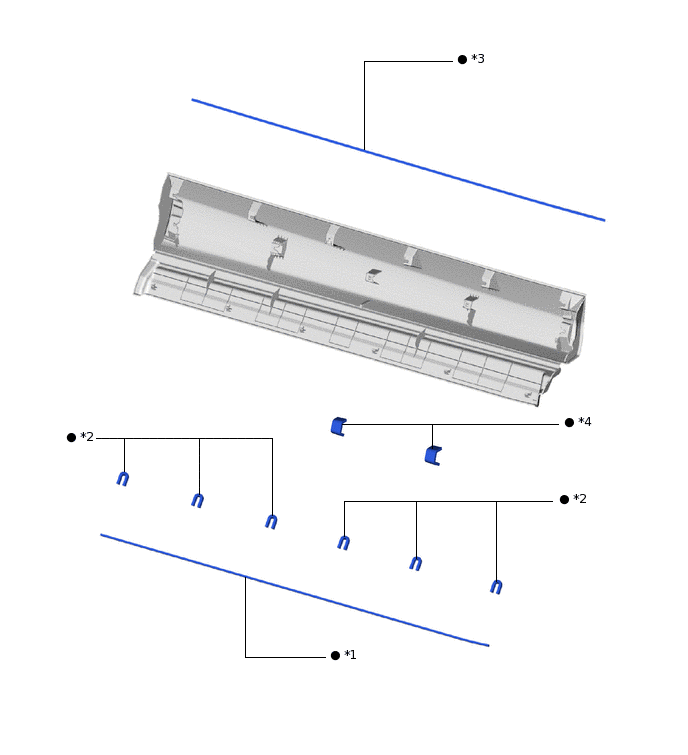

ILLUSTRATION

B437073C01

*1

FRONT DOOR OUTSIDE MOULDING PAD

*2

FRONT DOOR REAR OUTSIDE MOULDING PAD

*3

FRONT DOOR UPPER OUTSIDE MOULDING PAD

*4

NO. 2 OUTSIDE MOULDING SEAL

●

Non-reusable part

-

-
