TELEMATICS SYSTEM, Diagnostic DTC:B1572

DTC Code DTC Name
B1572 Microphone Error

DESCRIPTION

This DTC is stored when a microphone signal line is disconnected.

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

B1572

Microphone Error

Current at terminal MCVD exceeds the malfunction threshold for 20 seconds while the power switch is on (IG).

  • Telematics transceiver

  • Map light assembly (telephone microphone assembly)

  • Wire harness or connector

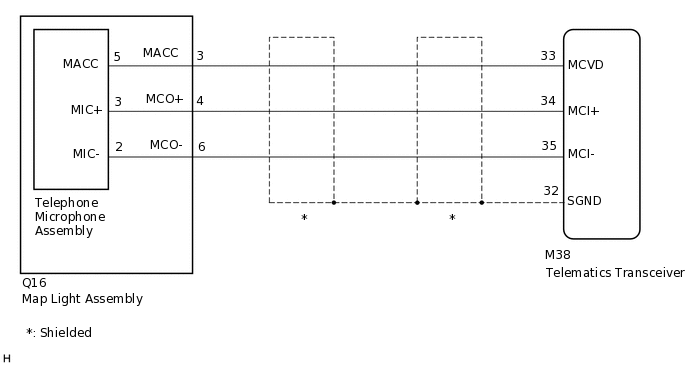

WIRING DIAGRAM

E355978E06

CAUTION / NOTICE / HINT

Note:

Depending on the parts that are replaced during vehicle inspection or maintenance, performing initialization, registration or calibration may be needed. Refer to Registration for Telematics System.

Click here

PROCEDURE

  1. CHECK DTC

    1. Turn the power switch off.

    2. Connect the GTS to the DLC3.

    3. Turn the power switch on (IG) and wait for 20 seconds.

    4. Turn the GTS on.

    5. Check for DTCs and check that no DTCs are output.

      Click here

      Body Electrical > Telematics > Trouble Codes

      OK

      No DTCs are output.

    Result

    Proceed to

    OK

    NG
    OK

    USE SIMULATION METHOD TO CHECK

    Click here

    NG

  2. CHECK HARNESS AND CONNECTOR (TELEMATICS TRANSCEIVER - MAP LIGHT ASSEMBLY (TELEPHONE MICROPHONE ASSEMBLY))

    1. Disconnect the M38 telematics transceiver connector.

    2. Disconnect the Q16 map light assembly (telephone microphone assembly) connector.

    3. Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      M38-33 (MCVD) - Q16-3 (MACC)

      Always

      Below 1 Ω

      M38-34 (MCI+) - Q16-4 (MCO+)

      Always

      Below 1 Ω

      M38-35 (MCI-) - Q16-6 (MCO-)

      Always

      Below 1 Ω

      M38-33 (MCVD) or Q16-3 (MACC) - Body ground

      Always

      10 kΩ or higher

      M38-34 (MCI+) or Q16-4 (MCO+) - Body ground

      Always

      10 kΩ or higher

      M38-35 (MCI-) or Q16-6 (MCO-) - Body ground

      Always

      10 kΩ or higher

      M38-32 (SGND) - Body ground

      Always

      10 kΩ or higher

    Result

    Proceed to

    OK

    NG
    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    OK

  3. INSPECT MAP LIGHT ASSEMBLY

    1. Remove the map light assembly (telephone microphone assembly).

      Click here

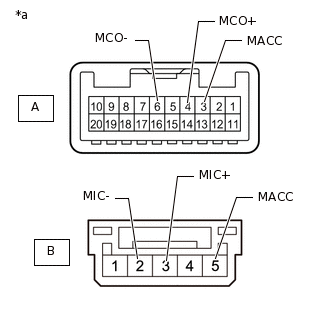

    2. E355981C01

      *a

      Component without harness connected

      (Map Light Assembly)

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      A-3 (MACC) - B-5 (MACC)

      Always

      Below 1 Ω

      A-4 (MCO+) - B-3 (MIC+)

      Always

      Below 1 Ω

      A-6 (MCO-) - B-2 (MIC-)

      Always

      Below 1 Ω

      A-3 (MACC) - A-4 (MCO+)

      Always

      10 kΩ or higher

      A-3 (MACC) - A-6 (MCO-)

      Always

      10 kΩ or higher

      A-4 (MCO+) - A-6 (MCO-)

      Always

      10 kΩ or higher

    Result

    Proceed to

    OK

    NG
    NG

    REPLACE MAP LIGHT ASSEMBLY

    Click here

    OK

  4. CHECK TELEPHONE MICROPHONE ASSEMBLY

    1. Replace the telephone microphone assembly with a new or known good one.

      Click here

    2. Clear the DTCs.

      Click here

      Body Electrical > Telematics > Clear DTCs

    3. Recheck for DTCs and check that no DTCs are output.

      Body Electrical > Telematics > Trouble Codes

      OK

      No DTCs are output.

    Result

    Proceed to

    OK

    NG
    OK

    END (TELEPHONE MICROPHONE ASSEMBLY IS DEFECTIVE)

    NG

  5. REPLACE TELEMATICS TRANSCEIVER

    1. Replace the telematics transceiver with a new one.

      Click here

    Result

    Proceed to

    NEXT
    NEXT

    PERFORM REGISTRATION

    Click here
