SPEED SENSOR COMPONENTS

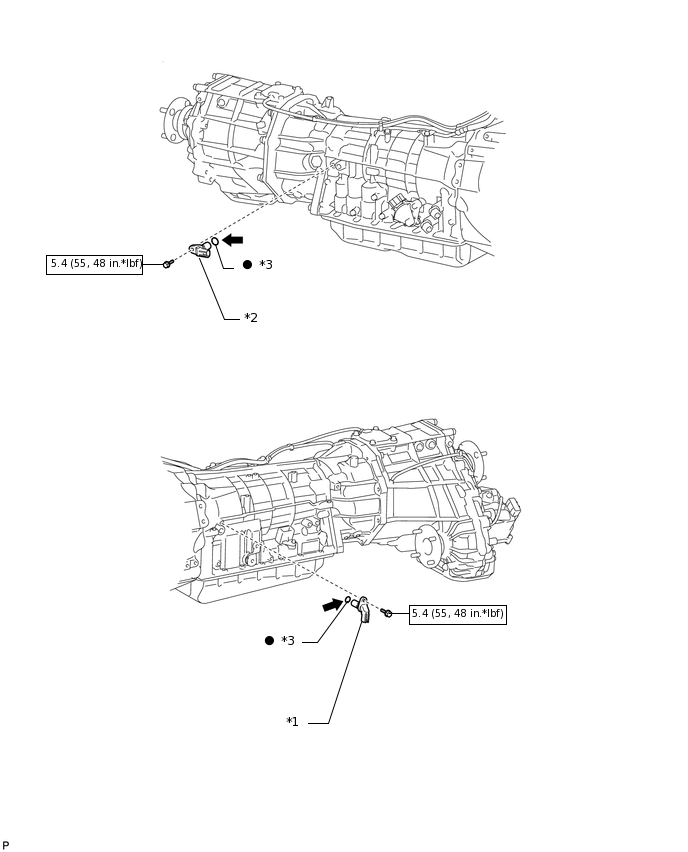

ILLUSTRATION

C277363C01

*1

SPEED SENSOR NT

*2

SPEED SENSOR SP2

*3

O-RING

-

-
V100146

Specified torque: N*m (kgf*cm, ft.*lbf)

 V100135

Toyota Genuine ATF WS

●

Non-reusable part

-

-
