REAR FLOOR LOWER FRONT CROSSMEMBER ASSEMBLY REPLACEMENT



  1. REMOVAL

    Symbol meaning
    A0050K6 Remove Weld Points
    A0050JA Remove Weld Points

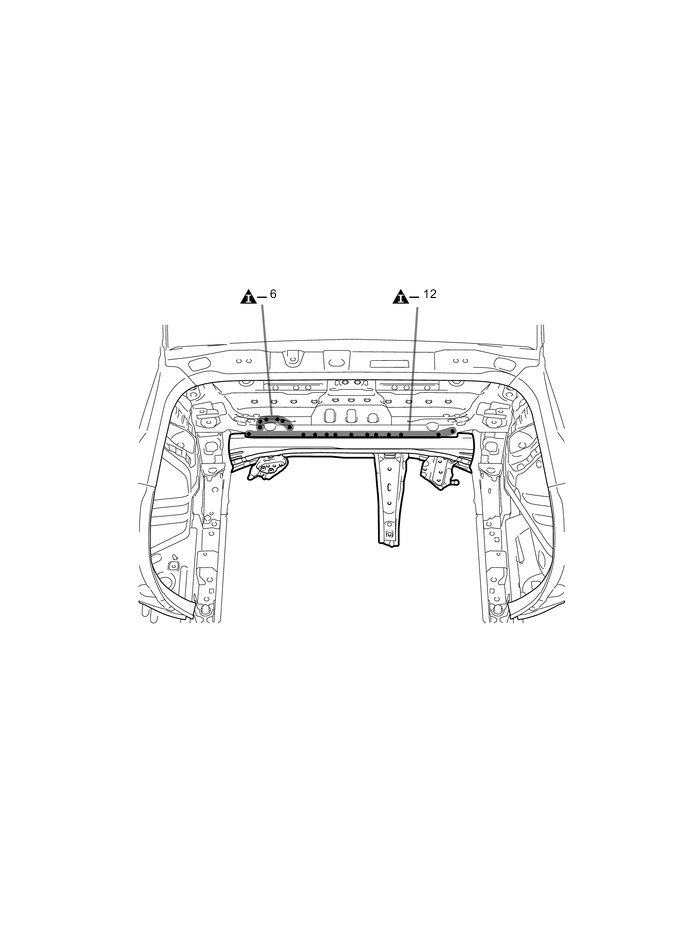

    A0050HZE02

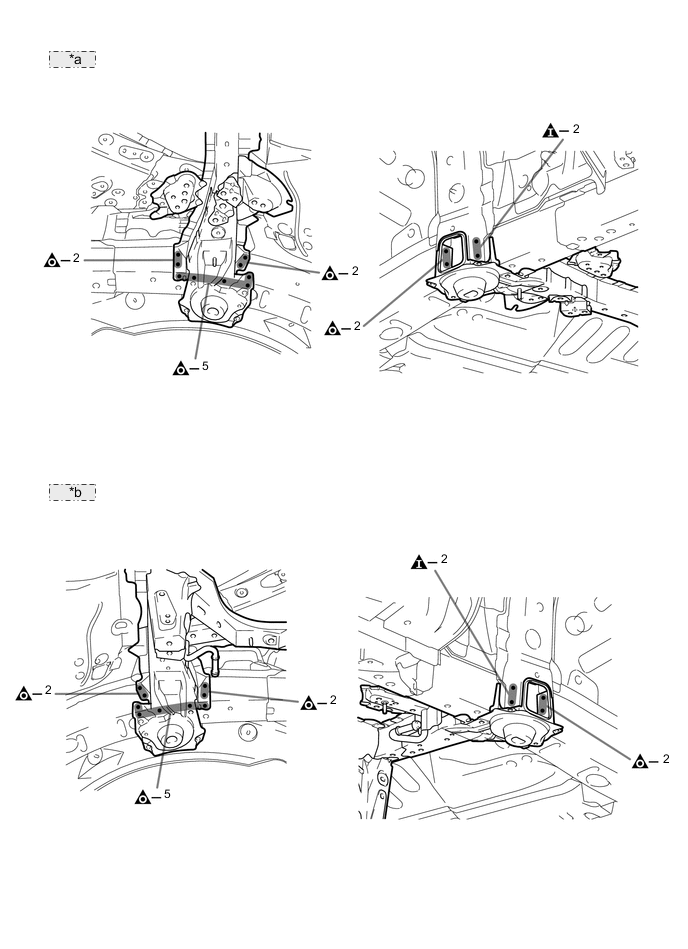

    A0050N3E02
    *a LH Side:
    *b RH Side:

  2. INSTALLATION

    Symbol meaning
    A0050CS Plug Weld
    A0050HG Plug Weld

      INSTALLATION POINT

    1. After welding, apply undercoating to the corresponding parts. (See the painting / coating)

    2. After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.

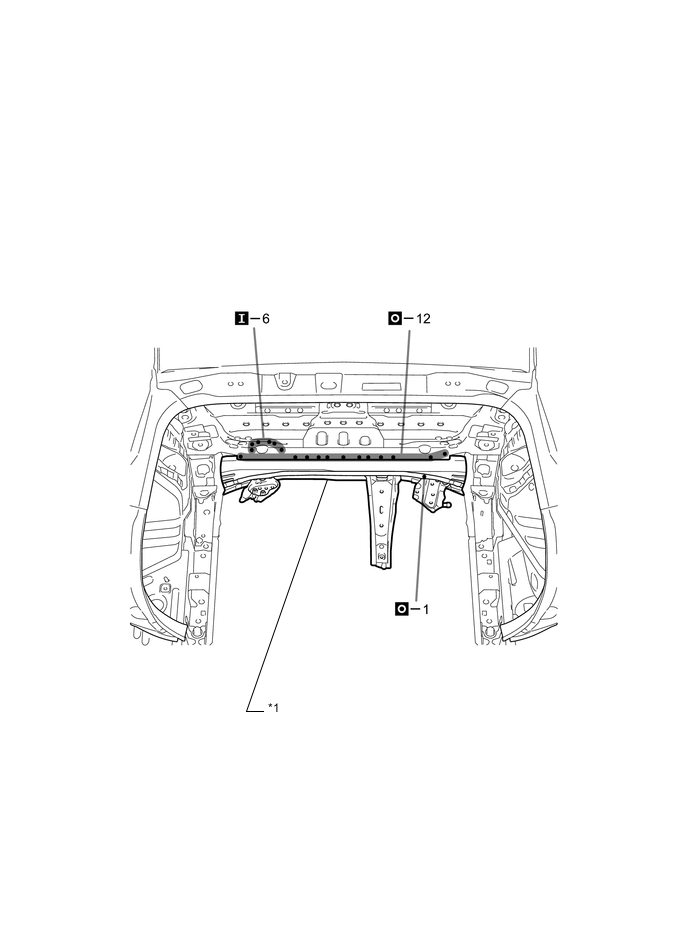

    A0050G4E01
    *1 REAR FLOOR CROSSMEMBER NO.2

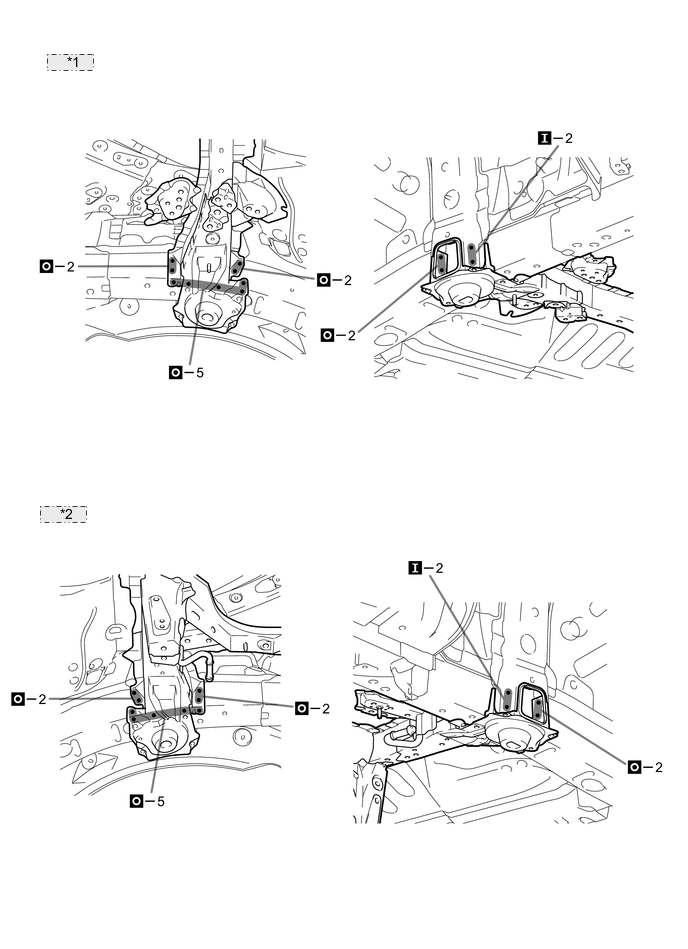

    A0050LIE01
    *1 LH Side:
    *2 RH Side:
