REAR SEATBACK HEATER(for 60/40 Split Seat Type LH Side) COMPONENTS

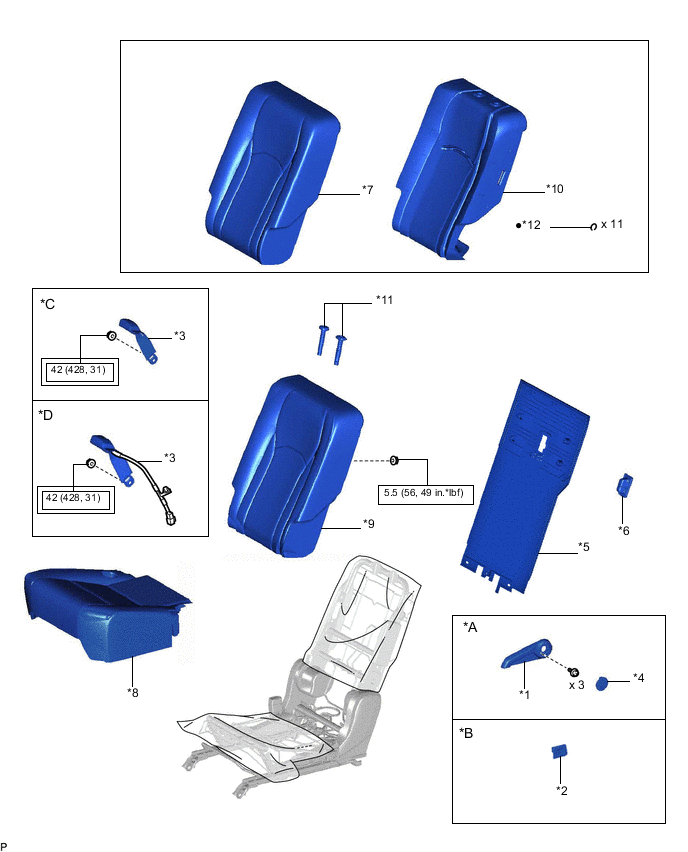

ILLUSTRATION
| *A | for Manual Seat | *B | for Power Seat |
| *C | w/o Seat Belt Warning System | *D | w/ Seat Belt Warning System |
| *1 | NO. 1 RECLINING ADJUSTER RELEASE HANDLE LH | *2 | POWER SEAT SWITCH ASSEMBLY |
| *3 | REAR CENTER SEAT INNER BELT ASSEMBLY | *4 | REAR SEAT COVER CAP LH |
| *5 | REAR SEATBACK BOARD CARPET ASSEMBLY LH | *6 | REAR SEATBACK COVER LH |
| *7 | REAR SEATBACK HEATER (SEPARATE TYPE REAR SEATBACK COVER) | *8 | SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD |
| *9 | SEPARATE TYPE REAR SEATBACK COVER WITH PAD | *10 | SEPARATE TYPE REAR SEATBACK PAD |
| *11 | REAR NO. 1 SEAT HEADREST SUPPORT | *12 | HOG RING |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |  |
N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part | - | - |
