THEFT DETERRENT SYSTEM PARTS LOCATION
ILLUSTRATION

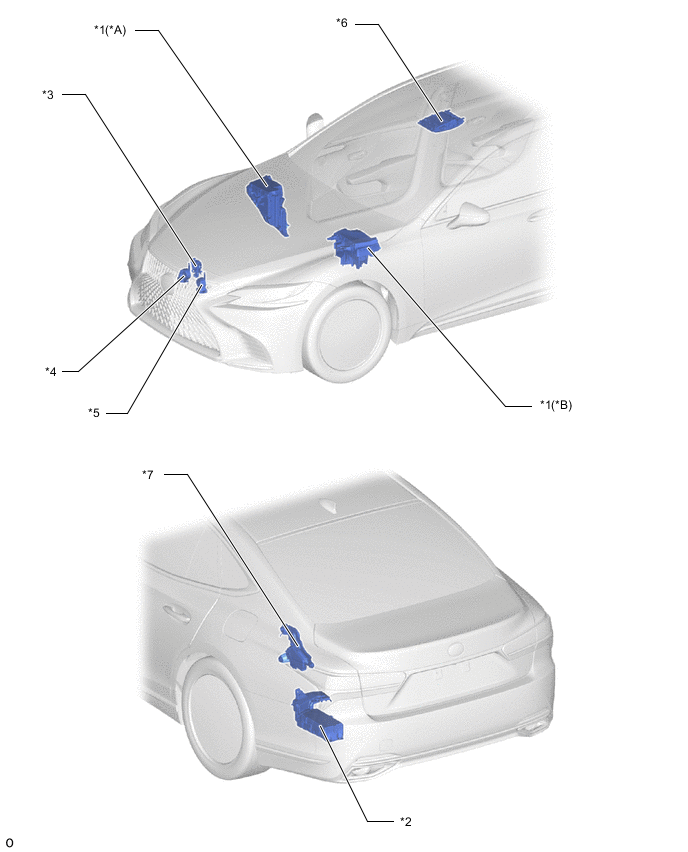

| *A | for LHD | *B | for RHD |
| *1 | NO. 1 ENGINE ROOM RELAY BLOCK - HORN RELAY - HORN FUSE |
*2 | NO. 2 LUGGAGE ROOM RELAY BLOCK - LUG-B NO.4 FUSE |
| *3 | HOOD LOCK ASSEMBLY (ENGINE HOOD COURTESY SWITCH) | *4 | HIGH PITCHED HORN ASSEMBLY |
| *5 | LOW PITCHED HORN ASSEMBLY | *6 | MAP LIGHT SUB-ASSEMBLY - INTRUSION SENSOR (THEFT WARNING ULTRASONIC SENSOR) |
| *7 | LUGGAGE CLOSER MOTOR ASSEMBLY | - | - |
ILLUSTRATION
| *1 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY LH | *2 | FRONT DOOR COURTESY LIGHT SWITCH ASSEMBLY RH |
| *3 | FRONT DOOR WITH MOTOR LOCK ASSEMBLY LH | *4 | FRONT DOOR WITH MOTOR LOCK ASSEMBLY RH |
| *5 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY LH | *6 | REAR DOOR COURTESY LIGHT SWITCH ASSEMBLY RH |
| *7 | REAR DOOR LOCK ASSEMBLY LH | *8 | REAR DOOR LOCK ASSEMBLY RH |
| *9 | DOOR CONTROL RECEIVER | - | - |
ILLUSTRATION

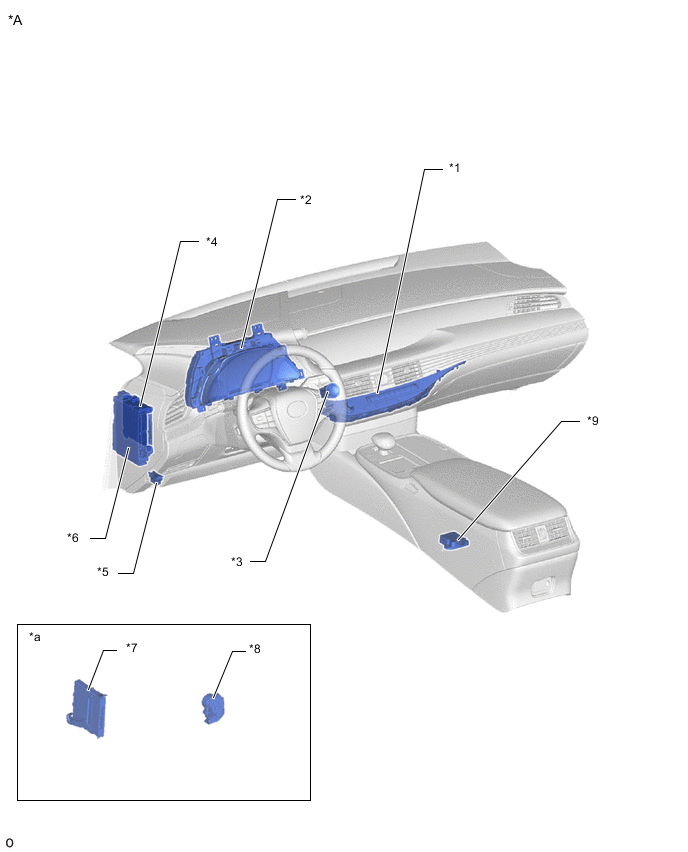

| *A | for LHD | - | - |
| *1 | AIR CONDITIONING CONTROL ASSEMBLY - SECURITY INDICATOR LIGHT |
*2 | COMBINATION METER ASSEMBLY |
| *3 | ENGINE SWITCH | *4 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *5 | DLC3 | *6 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 D NO.4 FUSE - ACC D FUSE - ECU-B D NO.1 FUSE - AM2 FUSE - MPX-B D NO.1 FUSE - MPX-B D NO.2 FUSE |
| *7 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *8 | THEFT WARNING SIREN ASSEMBLY |
| *9 | YAWRATE SENSOR (THEFT WARNING TILT SENSOR) | - | - |
| *a | Refer to Service Bulletin for installation position of the parts. | - | - |
ILLUSTRATION
| *A | for RHD | - | - |
| *1 | AIR CONDITIONING CONTROL ASSEMBLY - SECURITY INDICATOR LIGHT |
*2 | COMBINATION METER ASSEMBLY |
| *3 | ENGINE SWITCH | *4 | MAIN BODY ECU (MULTIPLEX NETWORK BODY ECU) |
| *5 | DLC3 | *6 | INSTRUMENT PANEL JUNCTION BLOCK ASSEMBLY - IG1 D NO.4 FUSE - ACC D FUSE - ECU-B D NO.1 FUSE - AM2 FUSE - MPX-B D NO.1 FUSE - MPX-B D NO.2 FUSE |
| *7 | CERTIFICATION ECU (SMART KEY ECU ASSEMBLY) | *8 | THEFT WARNING SIREN ASSEMBLY |
| *9 | YAWRATE SENSOR (THEFT WARNING TILT SENSOR) | - | - |
| *a | Refer to Service Bulletin for installation position of the parts. | - | - |
