HYBRID VEHICLE TRANSAXLE COMPONENTS

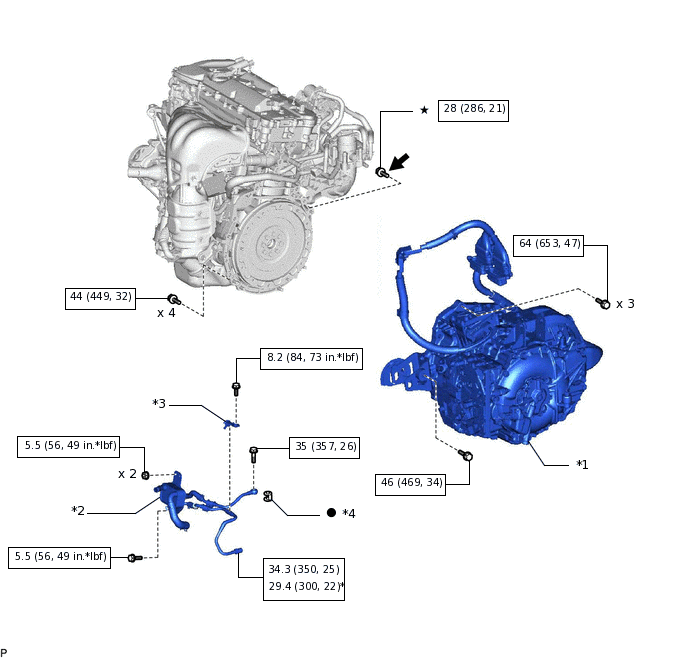

ILLUSTRATION
*1 |
HYBRID VEHICLE TRANSAXLE ASSEMBLY |
*2 |
TRANSMISSION OIL COOLER ASSEMBLY |
*3 |
NO. 1 OIL COOLER TUBE CLAMP |
*4 |
GASKET |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
* |
For use with union nut wrench |
● |
Non-reusable part |
 |
Adhesive |
★ |
Precoated part |
- |
- |

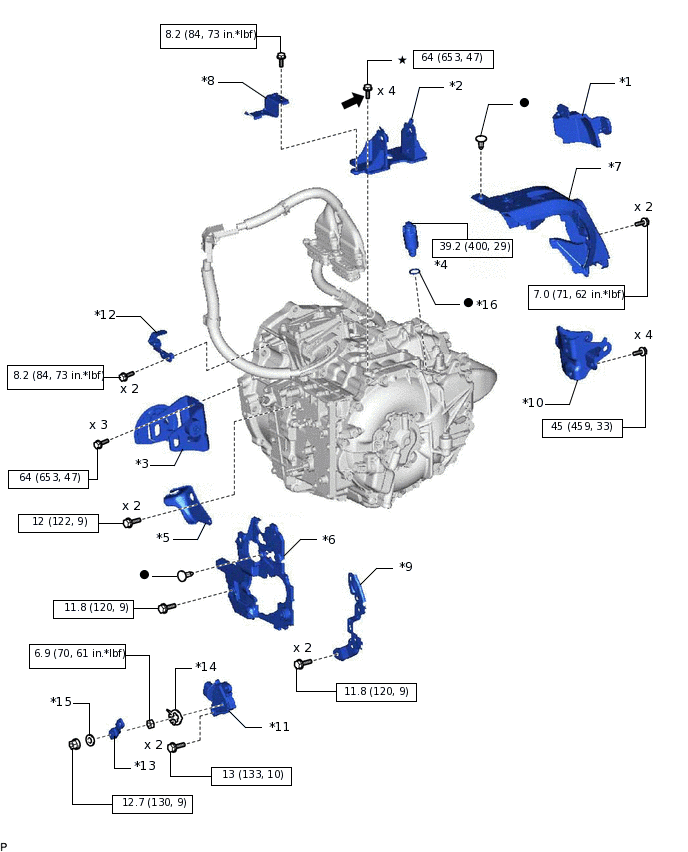

ILLUSTRATION
*1 |
AUTOMATIC TRANSMISSION CASE COVER |
*2 |
ENGINE MOUNTING BRACKET LH |
*3 |
FRONT ENGINE MOUNTING BRACKET |
*4 |
HYBRID TRANSMISSION MASS DAMPER |
*5 |
NO. 1 TRANSMISSION CONTROL CABLE BRACKET |
*6 |
NO. 2 AUTOMATIC TRANSMISSION CASE COVER |
*7 |
NO. 3 AUTOMATIC TRANSMISSION CASE COVER |
*8 |
NO. 3 OIL COOLER TUBE CLAMP |
*9 |
OIL COOLER TUBE CLAMP |
*10 |
REAR ENGINE MOUNTING BRACKET |
*11 |
SHIFT LEVER POSITION SENSOR |
*12 |
TRANSMISSION OIL COOLER BRACKET |
*13 |
CONTROL SHAFT LEVER |
*14 |
LOCK PLATE |
*15 |
WASHER |
*16 |
GASKET |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
|
Adhesive |
★ |
Precoated part |

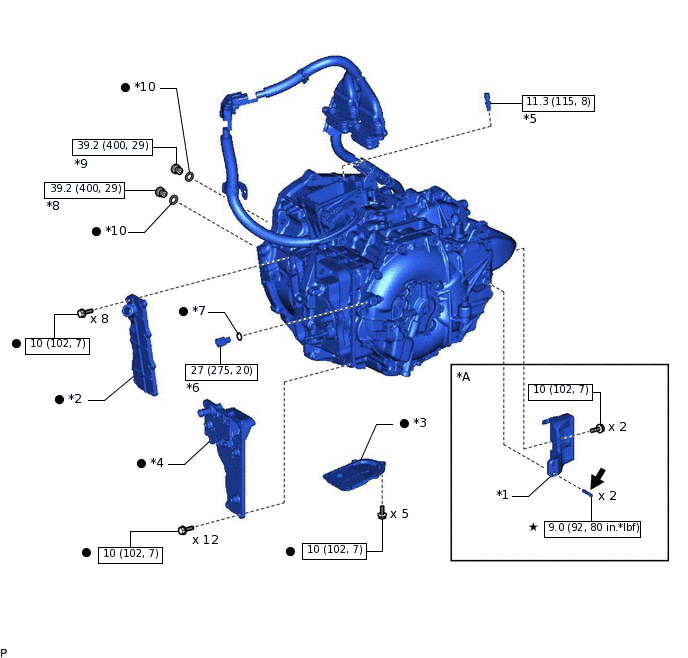

ILLUSTRATION
*A |
w/ Cover |
- |
- |
*1 |
MOTOR CONNECTOR PROTECTOR |
*2 |
NO. 1 MOTOR WATER JACKET COVER ASSEMBLY |
*3 |
NO. 2 MOTOR WATER JACKET COVER ASSEMBLY |
*4 |
NO. 3 MOTOR WATER JACKET COVER ASSEMBLY |
*5 |
TRANSAXLE BREATHER PLUG |
*6 |
UNION |
*7 |
O-RING |
*8 |
DRAIN PLUG |
*9 |
FILLER PLUG |
*10 |
GASKET |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
|
Adhesive |
★ |
Precoated part |
