DIGITAL AUDIO BROADCASTING ANTENNA REMOVAL

PROCEDURE

1. REMOVE ROOF HEADLINING ASSEMBLY (for Wagon)

   Click here

2. REMOVE ROOF HEADLINING ASSEMBLY (for Hatchback)

   Click here

3. REMOVE DIGITAL AUDIO BROADCASTING ANTENNA ASSEMBLY

   Note:

   Do not touch the contact points.

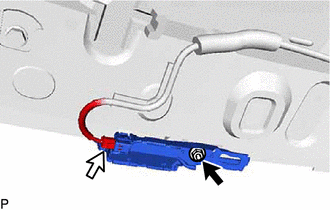

   1.

      Remove the nut.

   2. Disconnect the connector to remove the digital audio broadcasting antenna assembly.
