FRONT BRAKE


  1. OUTLINE


    1. A ventilated disc brake is used.

    2. A PE45T 2-piston type brake caliper assembly is used.

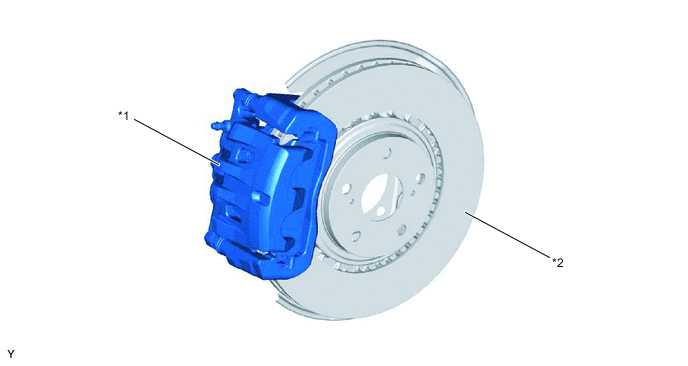

      A01GGWQC01
      *1 Front Disc Brake Caliper Assembly *2 Front Disc

  2. SPECIFICATION

    Type Ventilated Disc
    Caliper Type PE45T
    Wheel Cylinder Diameter 44.45 mm (1.75 in.) x 2
    Rotor Size (Diameter x Thickness) 328.0 mm x 28.0 mm (12.9 in. x 1.10 in.)
