REAR DOOR WINDOW FRAME MOULDING REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE

  1. REMOVE DECK BOARD ASSEMBLY

    Click here

  2. REMOVE BATTERY SERVICE COVER

    Click here

  3. PRECAUTION

    Note:

    After turning the power switch off, waiting time may be required before disconnecting the cable from the auxiliary battery negative (-) terminal. Therefore, make sure to read the disconnecting the cable from the auxiliary battery negative (-) terminal notice before proceeding with work.

    Click hereClick hereClick hereClick here

  4. DISCONNECT CABLE FROM NEGATIVE AUXILIARY BATTERY TERMINAL

    Note:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click hereClick hereClick here

  5. REMOVE REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL

    Click here

  6. REMOVE DOOR ASSIST GRIP COVER LH

    Click here

  7. REMOVE REAR DOOR INSIDE HANDLE BEZEL PLUG LH

    Click here

  8. REMOVE REAR DOOR TRIM BOARD SUB-ASSEMBLY LH

    Click here

  9. REMOVE REAR DOOR SERVICE HOLE COVER LH

    Click here

  10. REMOVE REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY LH

    Click here

  11. REMOVE REAR DOOR QUARTER WINDOW GLASS LH

    Click here

  12. REMOVE REAR DOOR GLASS SUB-ASSEMBLY LH

    Click here

  13. REMOVE REAR DOOR GLASS RUN LH

    Click here

  14. REMOVE REAR DOOR BELT MOULDING ASSEMBLY LH

    Click here

  15. REMOVE REAR DOOR WEATHERSTRIP LH

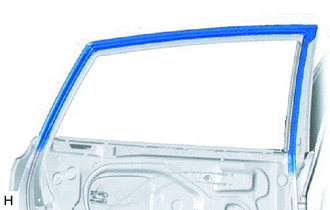

    B338469

    1. Remove the upper part of the rear door weatherstrip LH so that the rear door outside moulding sub-assembly LH can be removed.

  16. REMOVE DOOR WINDOW FRAME MOULDING CLIP

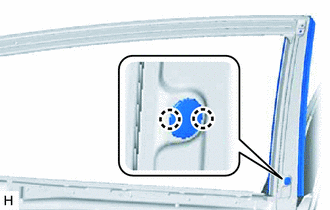

    B338471

    1. Detach the 2 claws and remove the door window frame moulding clip.

  17. REMOVE REAR DOOR OUTSIDE MOULDING SUB-ASSEMBLY LH

    Tip:

    When removing the window frame moulding, heat the rear door panel and rear door outside moulding sub-assembly LH using a heat light.

    Standard

    Item

    Temperature

    Rear Door Panel

    40 to 60°C (104 to 140°F)

    Rear Door Outside Moulding Sub-assembly LH

    20 to 30°C (68 to 86°F)
    Note:

    Do not heat the rear door panel and rear door outside moulding sub-assembly LH excessively.

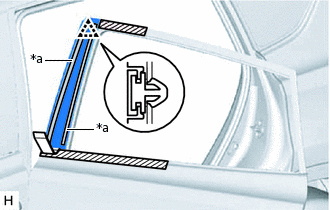

    1. B340212C03

      *a

      Double-sided Tape
      V100155

      Protective Tape

      Put protective tape around the rear door outside moulding sub-assembly LH.

    2. Using moulding remover D, remove the double-sided tape to detach the clip and remove the rear door outside moulding sub-assembly LH.
