WIPER ECU REMOVAL

PROCEDURE

  1. REMOVE NO. 2 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (for LHD)

    Click hereClick here

  2. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY (for LHD)

    Click here

  3. REMOVE ECU INTEGRATION BOX RH (for LHD)

    Click here

  4. REMOVE WINDSHIELD WIPER RELAY ASSEMBLY (for LHD)

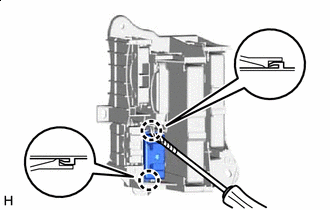

    1. B427718C01
      V100155

      Protective Tape

      Using a screwdriver, detach the 2 claws and remove the windshield wiper relay assembly.

      Tip:

      Tape the screwdriver tip before use.

  5. REMOVE NO. 1 INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY (for RHD)

    Click hereClick here

  6. REMOVE FUSE BOX OPENING COVER (for RHD)

    Click hereClick here

  7. REMOVE ECU INTEGRATION BOX RH (for RHD)

    Click here

  8. REMOVE WINDSHIELD WIPER RELAY ASSEMBLY (for RHD)

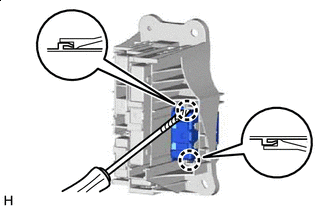

    1. B427715C01
      V100155

      Protective Tape

      Using a screwdriver, detach the 2 claws and remove the windshield wiper relay assembly.

      Tip:

      Tape the screwdriver tip before use.
