POWER WINDOW REGULATOR MOTOR(for Rear Door) INSTALLATION

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE

  1. INSTALL REAR DOOR WINDOW REGULATOR ASSEMBLY LH

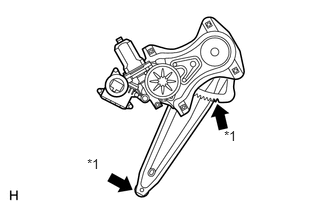

    1. B227082E01

      Apply MP grease to the sliding and rotating areas of the window regulator.

      Table 1. Text in Illustration

      *1

      MP grease
    2. B222674E03

      Loosely install the temporary bolt to the window regulator.

      Table 2. Text in Illustration

      *1

      Temporary Bolt

    3. Insert the window regulator into the door panel. Use the temporary bolt to hang the window regulator on the door panel.

      Note:

      Be careful not to drop the window regulator as it may become damaged.

    4. Tighten the 4 bolts to install the rear door window regulator sub-assembly.

      8.0 N*m

      82 kgf*cm

      71 in.*lbf

    5. Connect the connector.

  2. INSTALL REAR DOOR GLASS SUB-ASSEMBLY LH

    Click here

  3. INSTALL REAR DOOR QUARTER WINDOW GLASS LH

    Click here

  4. INSTALL REAR DOOR WINDOW DIVISION BAR SUB-ASSEMBLY LH

    Click here

  5. INSTALL REAR DOOR GLASS RUN LH

    Click here

  6. INSTALL REAR DOOR SERVICE HOLE COVER LH

    Click here

  7. INSTALL REAR DOOR INNER GLASS WEATHERSTRIP LH

    Click here

  8. INSTALL REAR DOOR INSIDE HANDLE SUB-ASSEMBLY LH

    Click here

  9. INSTALL REAR DOOR TRIM BOARD SUB-ASSEMBLY LH

    Click here

  10. INSTALL REAR POWER WINDOW REGULATOR SWITCH ASSEMBLY WITH REAR DOOR ARMREST BASE PANEL

    Click here

  11. INSTALL REAR DOOR TRIM MOULDING LH

    Click here

  12. INSTALL REAR DOOR INSIDE HANDLE BEZEL LH

    Click here

  13. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL

    Note:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected (Click here).
