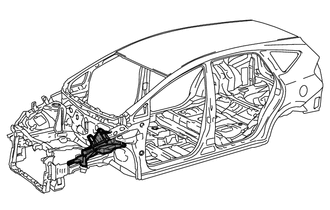

FRONT FENDER APRON ASSEMBLY REPLACEMENT



  1. REMOVAL

    Symbol meaning
    A0050K6 Remove Weld Points
    A0050HS Remove Weld Points
    A0050JA Remove Weld Points

      REMOVAL POINT

    1. After removing the front side member to spring support gusset, remove the front fender apron.

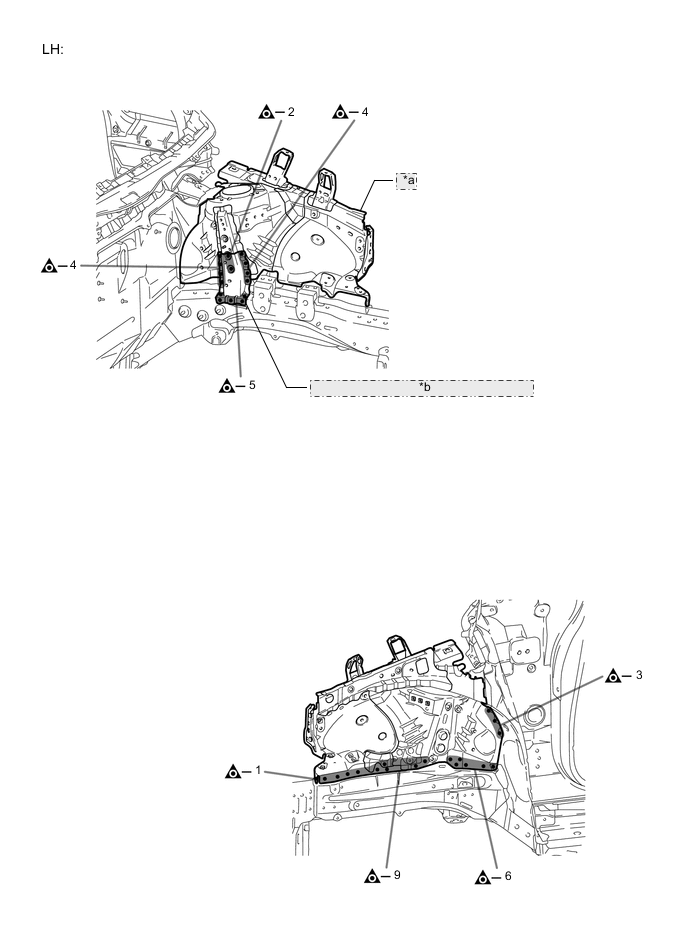

    A0050L0E01
    *a FRONT FENDER APRON
    *b FRONT SIDE MEMBER TO SPRING SUPPORT GUSSET

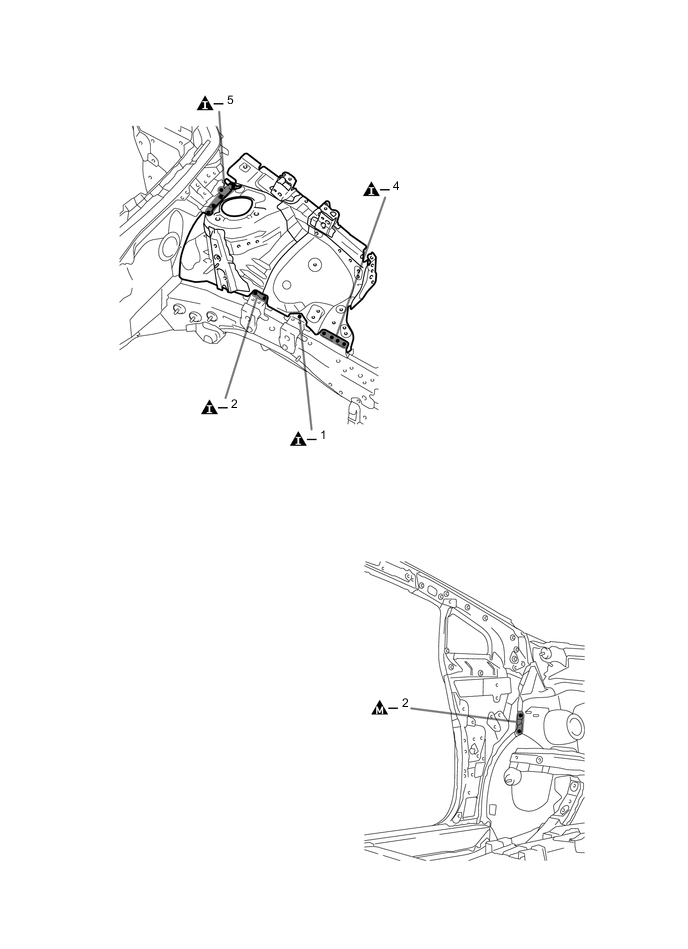

    A0050JLE02

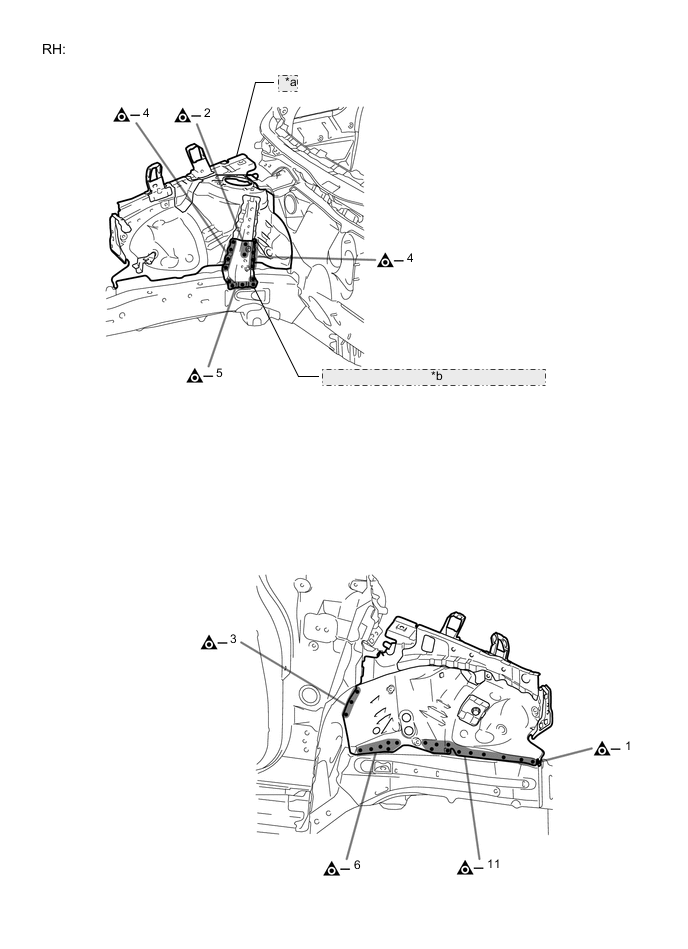

    A0050I7E02
    *a FRONT FENDER APRON
    *b FRONT SIDE MEMBER TO SPRING SUPPORT GUSSET

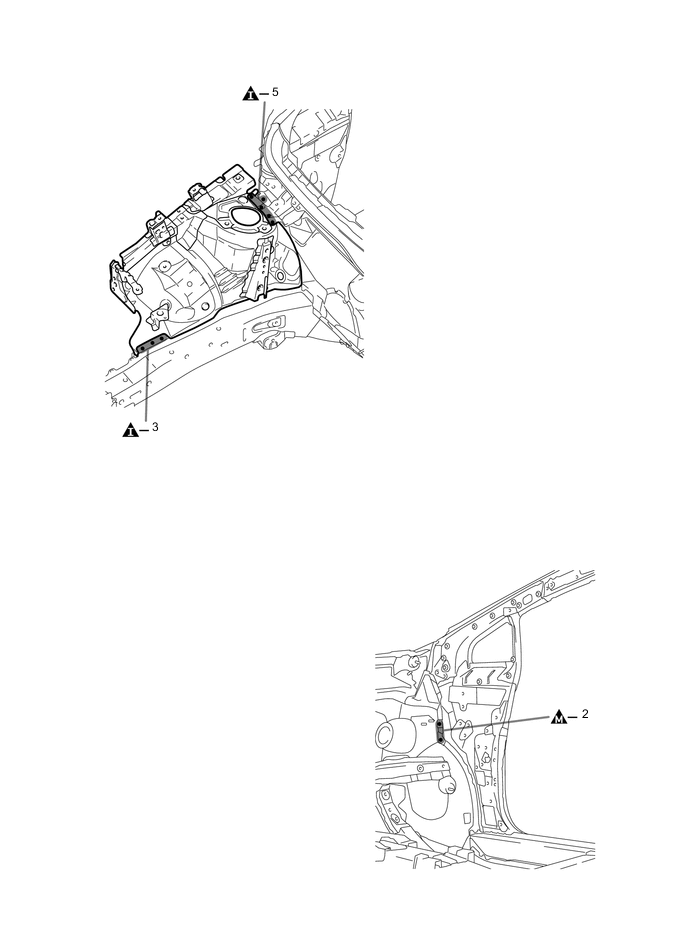

    A0050IAE02

  2. INSTALLATION

    Symbol meaning
    A0050CS Plug Weld
    A0050L9 Plug Weld
    A0050HG Plug Weld

      INSTALLATION POINT

    1. Inspect the fitting of the related parts around the new parts before welding. This affects the appearance of the finish.

    2. Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimensions)

    3. After welding the front fender apron to the vehicle side, install the front side member to spring support gusset.

    4. Make sure to attach correctly in accordance with the body dimension diagram as this part affects the front wheel alignment.

    5. After welding, apply body sealer and undercoating to the corresponding parts. (See the painting / coating)

    6. After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.

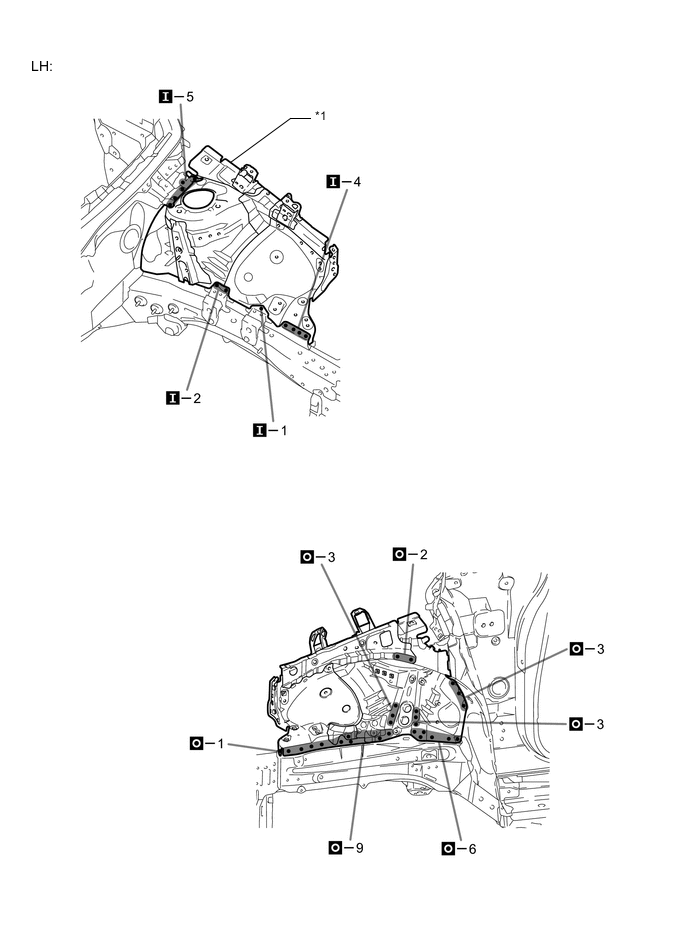

    A0050M3E01
    *1 FRONT FENDER APRON

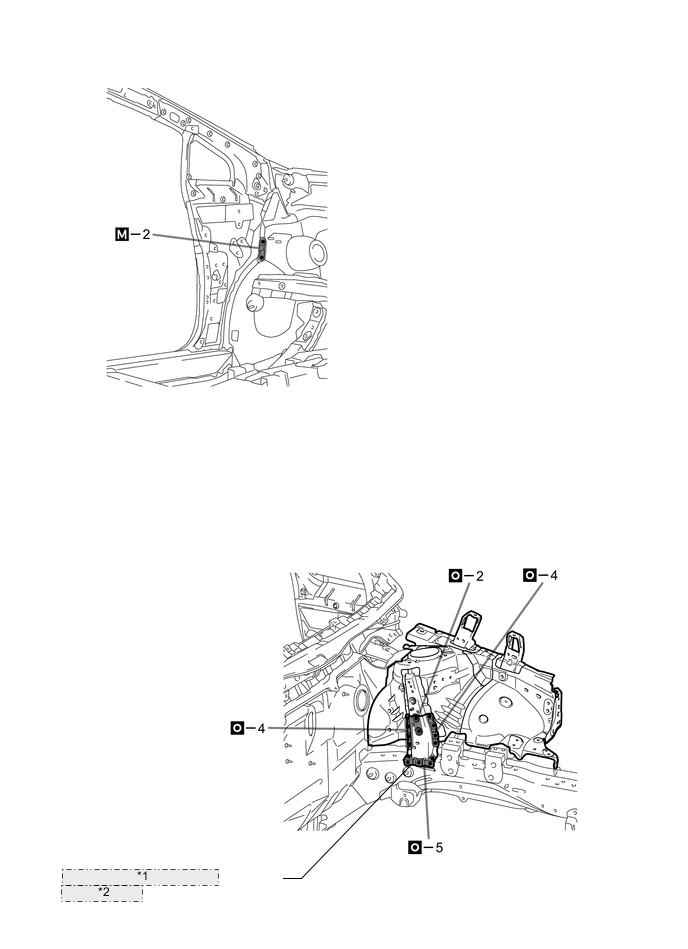

    A0050L1E01
    *1 FRONT SIDE MEMBER TO SPRING
    *2 SUPPORT GUSSET

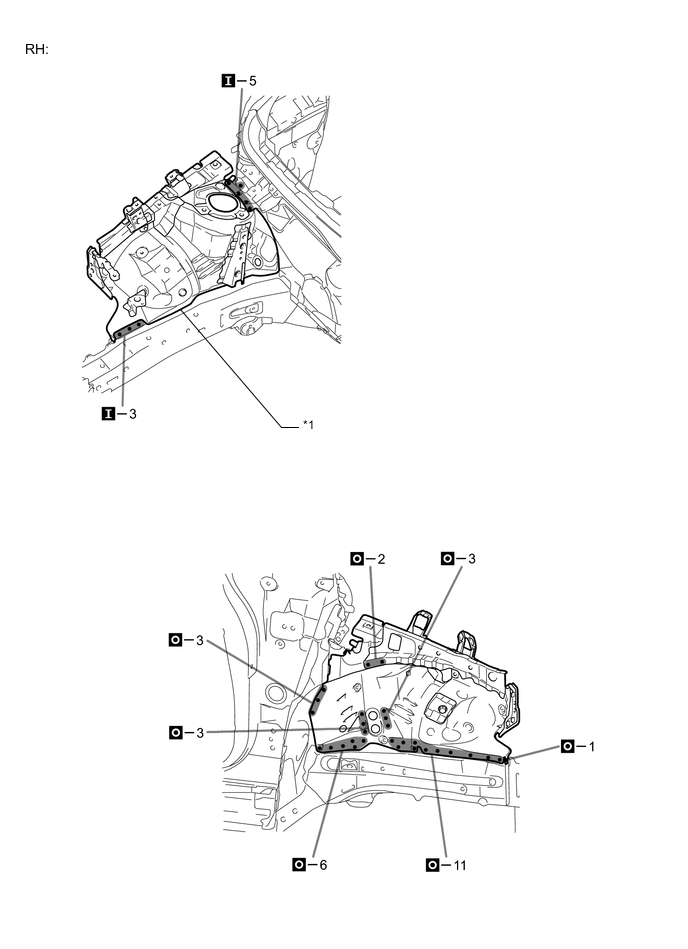

    A0050GME01
    *1 FRONT FENDER APRON

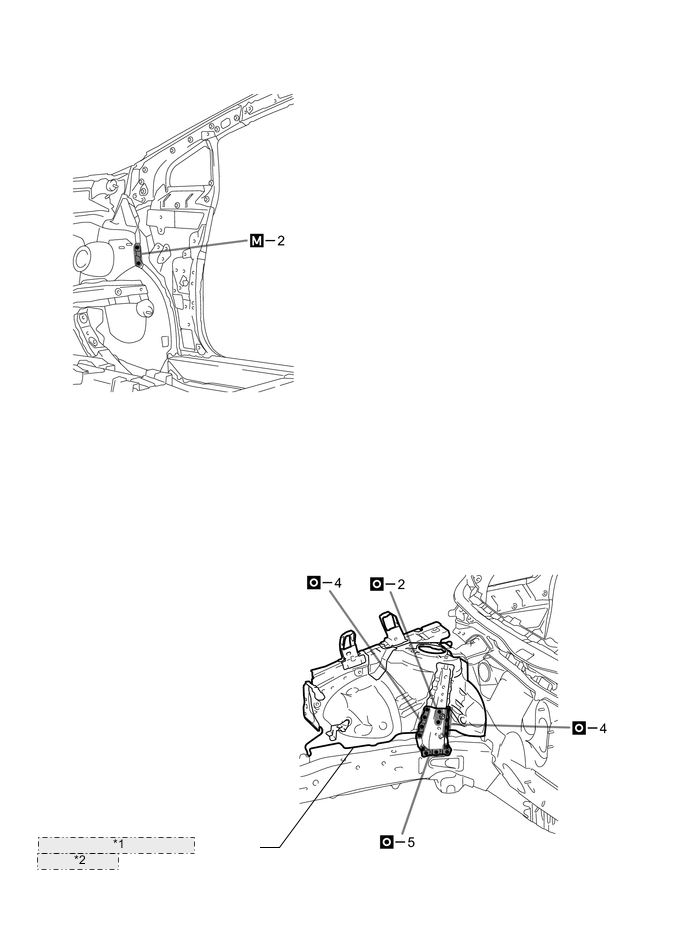

    A0050HRE01
    *1 FRONT SIDE MEMBER TO SPRING
    *2 SUPPORT GUSSET
