LUGGAGE COMPARTMENT ROOM LIGHT DISASSEMBLY

PROCEDURE

  1. REMOVE NO. 2 ROOM LIGHT BULB

    1. E300465C02

      *a

      Shade

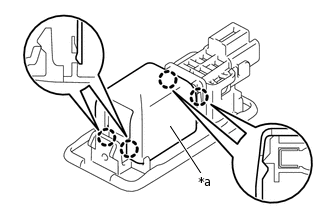

      Detach the 4 claws and remove the shade.

    2. E300466

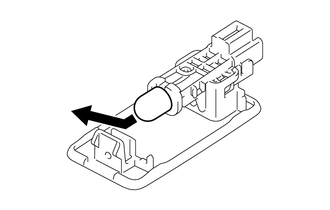

      Remove the No. 2 room light bulb as shown in the illustration.
