REAR BRAKE INSTALLATION

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for the LH side and RH side.

  • The following procedure is for the LH side.

PROCEDURE

  1. INSTALL REAR DISC

    1. C272633C01

      *a

      Matchmark

      Align the matchmarks of the rear disc and rear axle hub and bearing assembly, and install the rear disc.

      Note:

      When replacing the rear disc with a new one, select the installation position where the rear disc has minimal runout.

  2. INSTALL REAR DISC BRAKE CYLINDER MOUNTING

    1. for Torsion Beam Type Suspension:

      1. Install the rear disc brake cylinder mounting to the rear axle beam assembly with the 2 bolts.

        72.0 N*m

        734 kgf*cm

        53 ft.*lbf

    2. for Double Wishbone Type Suspension:

      1. Install the rear disc brake cylinder mounting to the rear axle carrier sub-assembly with the 2 bolts.

        57.4 N*m

        585 kgf*cm

        42 ft.*lbf

  3. INSTALL REAR DISC BRAKE BUSHING DUST BOOT

    1. C211756C01
      V100155

      Lithium Soap Base Glycol Grease

      Apply a light layer of lithium soap base glycol grease to the entire circumference of 2 new rear disc brake bushing dust boots.

      Tip:

      Apply more than 0.3 g (0.01 oz.) of lithium soap base glycol grease to each rear disc brake bushing dust boot.

    2. Install the 2 rear disc brake bushing dust boots to the rear disc brake cylinder mounting.

  4. INSTALL REAR DISC BRAKE CYLINDER SLIDE PIN

    1. for Type A:

      1. C244069C01
        V100155

        Lithium Soap Base Glycol Grease

        Apply a light layer of lithium soap base glycol grease to the sliding part and the sealing surfaces of the rear disc brake cylinder slide pin (for lower side).

      2. Install the rear disc brake cylinder slide pin (for lower side) to the rear disc brake cylinder mounting.

      3. Push the rear disc brake cylinder slide pin (for lower side) into the rear disc brake bushing dust boot to engage the pin to the boot.

      4. C244067C01
        V100155

        Lithium Soap Base Glycol Grease

        Apply a light layer of lithium soap base glycol grease to the contact surface of the rear disc brake cylinder slide pin (for upper side).

      5. Install a new rear disc brake cylinder slide bushing to the rear disc brake cylinder slide pin (for upper side).

      6. C244068C01
        V100155

        Lithium Soap Base Glycol Grease

        Apply a light layer of lithium soap base glycol grease to the sliding part and the sealing surfaces of the rear disc brake cylinder slide pin (for upper side).

      7. Install the rear disc brake cylinder slide pin (for upper side) to the rear disc brake cylinder mounting.

      8. Push the rear disc brake cylinder slide pin (for upper side) into the rear disc brake bushing dust boot to engage the pin to the boot.

    2. for Type B:

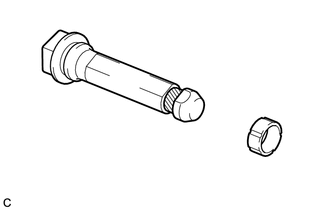

      1. C211757C04
        V100155

        Lithium Soap Base Glycol Grease

        Apply a light layer of lithium soap base glycol grease to the contact surface of the 2 rear disc brake cylinder slide pins.

      2. Install a new rear disc brake cylinder slide bushing to each rear disc brake cylinder slide pin.

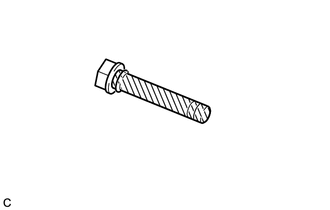

      3. C211758C04
        V100155

        Lithium Soap Base Glycol Grease

        Apply a light layer of lithium soap base glycol grease to the sliding part and the sealing surfaces of the 2 rear disc brake cylinder slide pins.

      4. Install the 2 rear disc brake cylinder slide pins to rear disc brake cylinder mounting.

      5. Push the 2 rear disc brake cylinder slide pins into the 2 rear disc brake bushing dust boots to engage the pins to the boots.

  5. INSTALL REAR DISC BRAKE PAD SUPPORT PLATE

    1. for Type A:

      1. Install the 4 rear disc brake pad support plates to the rear disc brake cylinder mounting.

        Note:

        Be sure to install each rear disc brake pad support plate in the correct position and direction.

    2. for Type B:

      1. Install the 2 rear disc brake pad support plates to the rear disc brake cylinder mounting.

        Note:

        Be sure to install each rear disc brake pad support plate in the correct position and direction.

  6. INSTALL REAR DISC BRAKE ANTI-SQUEAL SHIM

    1. for Type B:

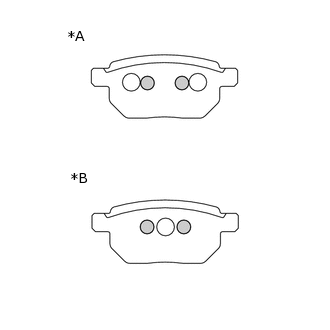

      1. C275018C01

        *A

        Inner

        *B

        Outer
        V100145

        Disc Brake Grease

        Apply disc brake grease to the back plate of the rear disc brake pads.

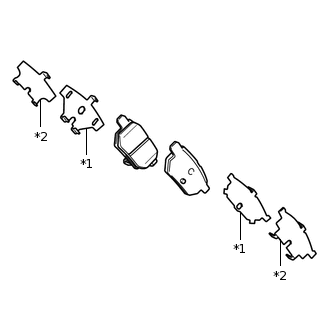

      2. C275019C01

        *1

        Rear No. 1 Disc Brake Anti-squeal Shim

        *2

        Rear No. 2 Disc Brake Anti-squeal Shim

        Install the rear No. 1 disc brake anti-squeal shim and rear No. 2 disc brake anti-squeal shim to each rear disc brake pad.

        Note:

        • When replacing worn pads, the anti-squeal shims must be replaced together with the rear disc brake pads.

        • Make sure that disc brake grease is not applied onto the lining surface.

  7. INSTALL REAR DISC BRAKE PAD

    1. Install the 2 rear disc brake pads to the rear disc brake cylinder mounting.

      Note:

      There should be no oil or grease on the friction surfaces of the disc brake pads or the rear disc.

    2. for Type B:

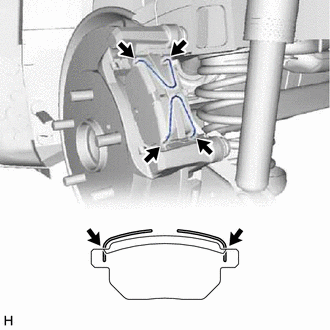

      1. C268793

        Install the 2 anti-squeal springs to the rear disc brake pads.

        Note:

        • When replacing the rear disc brake pads with new ones, make sure to replace the anti-squeal springs at the same time.

        • Be sure to install the anti-squeal springs into the rear disc brake pad installation holes as far as they will go.

  8. INSTALL REAR DISC BRAKE CYLINDER ASSEMBLY

    1. To compensate for pad lining thickness, use SST to adjust the protrusion of the rear disc brake piston using the procedure below (for Type A).

      1. C219074C02

        *a

        Identification Mark

        Set SST to the rear disc brake cylinder assembly as shown in the illustration.

        09719-12020

        09719-12010

        09719-01010

        09719-01020

        09719-01030

        Tip:

        Using the following table, select SST in accordance with the rear disc brake cylinder assembly that is being installed.

        Rear Disc Brake Cylinder Assembly

        SST

        Identification Mark

        LH

        09719-01010

        (Right-hand Threads)

        R

        RH

        09719-12020

        (Left-hand Threads)

        L

      2. Turn SST (A) to secure it to the rear disc brake cylinder assembly.

      3. C219075E02

        Turn SST to adjust the protrusion of the rear disc brake piston.

        Note:

        • Place the rear disc between the 2 rear disc brake pads and determine the piston return value.

        • Turn the rear disc brake piston to the position where the protrusion on the pad lines up properly with the piston groove.

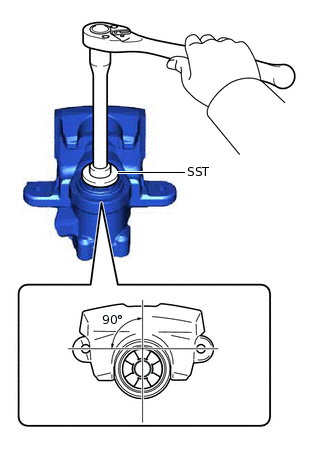

    2. C278993N01

      To compensate for pad lining thickness, use SST to adjust the protrusion of the rear disc brake piston by turning it (for Type B).

      09719-12010

      09719-01030

      Note:

      • Place the disc between the 2 brake pads and determine the piston return value.

      • Turn the rear disc brake piston to the position where the protrusion on the rear disc brake pad lines up properly with the piston groove.

    3. for Type A:

      1. Hold the 2 rear disc brake cylinder slide pins and install the rear disc brake cylinder assembly to the rear disc brake cylinder mounting with 2 new bolts.

        30 N*m

        306 kgf*cm

        22 ft.*lbf

    4. for Type B:

      1. Hold the 2 rear disc brake cylinder slide pins and install the rear disc brake cylinder assembly to the rear disc brake cylinder mounting with the 2 bolts.

        34.3 N*m

        350 kgf*cm

        25 ft.*lbf

        Note:

        • Install the rear disc brake cylinder assembly while holding both of the rear disc brake pads because the anti-squeal springs may fall off the rear disc brake pads.

        • Be sure that the anti-squeal springs are installed to the rear disc brake pads.

  9. CONNECT REAR FLEXIBLE HOSE

    1. Connect the rear flexible hose to the rear disc brake cylinder assembly with a new union bolt and a new gasket.

      29 N*m

      296 kgf*cm

      21 ft.*lbf

      Note:

      Install the rear flexible hose lock securely into the lock hole in the rear disc brake cylinder assembly.

  10. CONNECT NO. 3 PARKING BRAKE CABLE ASSEMBLY (for Torsion Beam Type Suspension)

    1. C274285C01

      *1

      Clip

      *2

      Rear Disc Brake Cylinder Assembly

      Engage the clip to install the No. 3 parking brake cable assembly to the rear disc brake cylinder assembly.

      Note:

      Be sure to engage the clip to the rear disc brake cylinder assembly as shown in the illustration.

    2. C274288

      Connect the No. 3 parking brake cable assembly to the rear disc brake cylinder assembly.

  11. CONNECT NO. 3 PARKING BRAKE CABLE ASSEMBLY (for Double Wishbone Type Suspension)

    1. C274286C01

      *1

      Clip

      *2

      Rear Disc Brake Cylinder Assembly

      Engage the clip to install the No. 3 parking brake cable assembly to the rear disc brake cylinder assembly.

      Note:

      Be sure to engage the clip to the rear disc brake cylinder assembly as shown in the illustration.

    2. C274289

      Connect the No. 3 parking brake cable assembly to the rear disc brake cylinder assembly.

  12. INSTALL PARKING BRAKE LEVER PROTECTOR (for Double Wishbone Type Suspension)

    Click hereClick here

  13. BLEED BRAKE LINE

    Click hereClick here

  14. ADJUST PARKING BRAKE

    Click here

  15. INSTALL UPPER CONSOLE PANEL SUB-ASSEMBLY

    for Hatchback, Wagon:Click hereClick here

    for Sedan:Click here

  16. INSTALL REAR WHEEL

    103 N*m

    1050 kgf*cm

    76 ft.*lbf
