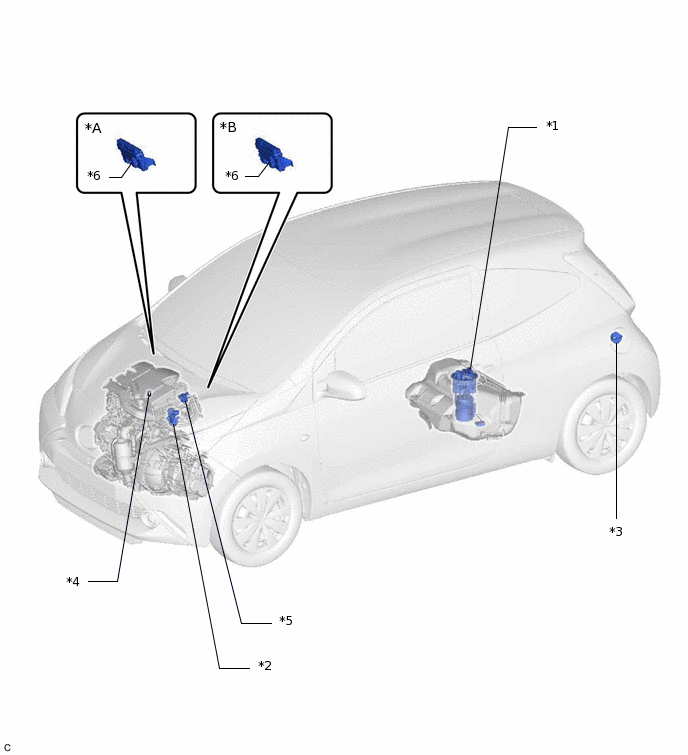

EMISSION CONTROL SYSTEM PARTS LOCATION

ILLUSTRATION

A322693C01

*A

for LHD

*B

for RHD

*1

CANISTER (FUEL SUCTION TUBE ASSEMBLY)

*2

EGR VALVE ASSEMBLY

*3

FUEL TANK CAP ASSEMBLY

*4

PCV VALVE (VENTILATION VALVE SUB-ASSEMBLY)

*5

PURGE VALVE (PURGE VSV)

*6

ECM

ILLUSTRATION

A322285C02

*A

for LHD

-

-

*1

DRIVER SIDE JUNCTION BLOCK ASSEMBLY

- EFI-MAIN RELAY

- EFI-MAIN FUSE

-

-

ILLUSTRATION

A322286C02

*A

for RHD

-

-

*1

DRIVER SIDE JUNCTION BLOCK ASSEMBLY

- EFI-MAIN RELAY

- EFI-MAIN FUSE

-

-
