IDENTIFICATION INFORMATION VEHICLE IDENTIFICATION AND SERIAL NUMBERS


  1. VEHICLE IDENTIFICATION NUMBER

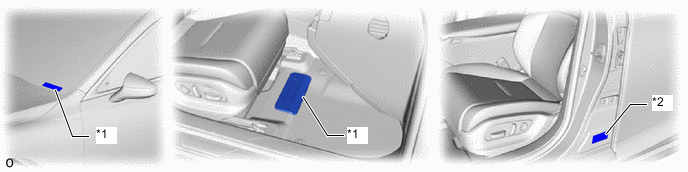

    1. The vehicle identification number is stamped on the vehicle body and on the certification label or name label as shown in the illustration.

      Refer to the front floor caution plate cover removal procedure.

      Click here

      B005X2EC01
      *1 Vehicle Identification Number *2 Certification Label or Name Label

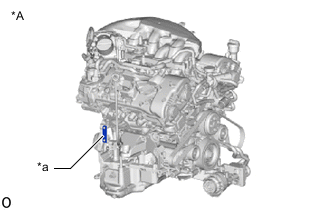

    2. B005T1MC01
      *A 8GR-FKS, w/ VIN
      *a Vehicle Identification Number

      The vehicle identification number is stamped on the cylinder block of the engine as shown in the illustration.

    3. B005TPWC01
      *A AGA0E, w/ VIN
      *a Vehicle Identification Number

      The vehicle identification number is stamped on the case as shown in the illustration.

  2. ENGINE SERIAL NUMBER AND TRANSMISSION CODE

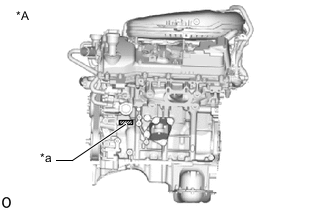

    1. B005VH4C01
      *A 8GR-FKS
      *a Engine Serial Number

      The engine serial number is stamped on the cylinder block of the engine as shown in the illustration.

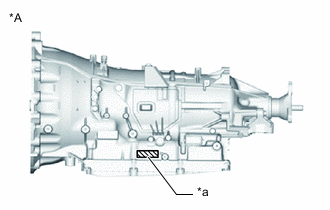

    2. B005SXDC01
      *A AGA0E
      *a Transmission Serial Number

      The transmission serial number is stamped on the case as shown in the illustration.
