BACK DOOR WEATHERSTRIP INSTALLATION

PROCEDURE

  1. INSTALL BACK DOOR WEATHERSTRIP

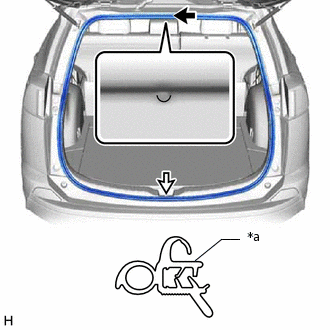

    1. B421513C01

      *a

      Paint Mark
      V100135

      Marking Position
      V100136

      Weatherstrip Joint

      Remove any non-drying sealer on the body with non-residue solvent.

    2. Align the paint marks with the positions on the body flange and install a new back door weatherstrip.

      Note:

      Always align the paint mark when installing the part. If the paint mark position is out of place, water leaks may occur.

      Tip:

      To easily install the weatherstrip, first install the area with the paint mark as shown in the illustration. Then install the part toward the corners and push any excess length into the corners.
