AUDIO AND VISUAL SYSTEM


  1. FUNCTION OF MAIN COMPONENTS


    1. The main components of the audio system have the following functions:

      Component Function
      Audio Head Unit Operates the respective functions in accordance with the signals from the switches.
      No.1 Stereo Jack Adapter Assembly Transmits information about the portable audio player connected to the USB port or AUX port to the audio head unit.

  2. CONSTRUCTION


    1. No.1 Stereo Jack Adapter Assembly

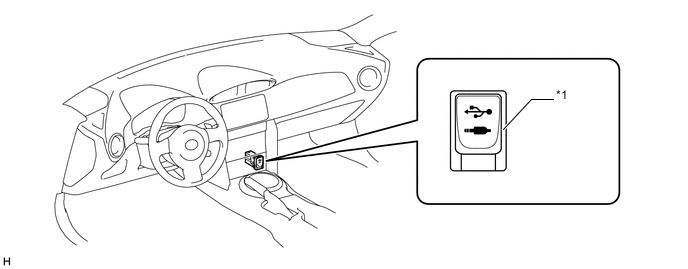

      1. The No.1 stereo jack adapter assembly is located inside the front console box cover.

        A004GJGE02
        Text in Illustration
        *1 No.1 Stereo Jack Adapter Assembly - -
