FRONT DOOR WINDOW FRAME MOULDING INSTALLATION

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

  • Use the same procedure for the RH and LH sides.

  • The procedure listed below is for the LH side.

PROCEDURE

  1. INSTALL DOOR WINDOW FRAME MOULDING CLIP

    1. Attach the 2 claws to install the door window frame moulding clip.

  2. INSTALL FRONT DOOR WINDOW REAR FRAME MOULDING LH

    Tip:

    When installing the window frame moulding, heat the front door panel and front door window rear frame moulding LH using a heat light.

    Standard

    Item

    Temperature

    Front Door Panel

    40 to 60°C (104 to 140°F)

    Front Door Window Rear Frame Moulding LH

    20 to 30°C (68 to 86°F)
    Note:

    Do not heat the front door panel and front door window rear frame moulding LH excessively.

    1. Clean the front door panel surface.

      1. Using a heat light, heat the front door panel surface.

      2. Remove the double-sided tape from the front door panel surface.

      3. Wipe off any tape adhesive residue with cleaner.

    2. Install a new front door window rear frame moulding LH.

      1. Using a heat light, heat a new front door window rear frame moulding LH and the front door panel surface.

      2. Remove the peeling paper from the face of the front door window rear frame moulding LH.

        Tip:

        After removing the peeling paper, keep the exposed adhesive free from foreign matter.

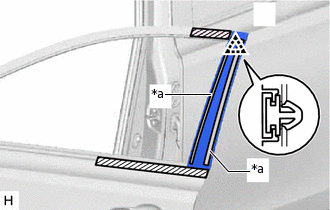

      3. B340211C02

        *a

        Double-sided Tape
        V100155

        Protective Tape

        Attach the clip and double-sided tape to install the front door window rear frame moulding LH.

        Tip:

        Press the front door window rear frame moulding LH firmly to install it.

  3. INSTALL FRONT DOOR WEATHERSTRIP LH

    1. Attach the clip and install the front door weatherstrip LH.

    2. Install the 2 clips.

  4. INSTALL FRONT DOOR BELT MOULDING ASSEMBLY LH

    Click here

  5. INSTALL FRONT DOOR GLASS RUN LH

    Click here

  6. INSTALL FRONT DOOR GLASS SUB-ASSEMBLY LH

    Click here

  7. INSTALL FRONT DOOR SERVICE HOLE COVER LH

    Click here

  8. INSTALL OUTER REAR VIEW MIRROR ASSEMBLY LH

    Click here

  9. INSTALL FRONT DOOR TRIM BOARD SUB-ASSEMBLY LH

    Click here

  10. INSTALL FRONT DOOR INSIDE HANDLE BEZEL PLUG LH

    Click here

  11. INSTALL FRONT DOOR ASSIST GRIP COVER LH

    Click here

  12. INSTALL POWER WINDOW REGULATOR MASTER SWITCH ASSEMBLY WITH FRONT DOOR ARMREST BASE PANEL

    Click here

  13. INSTALL FRONT DOOR LOWER FRAME BRACKET GARNISH LH

    Click here

  14. CONNECT CABLE TO NEGATIVE AUXILIARY BATTERY TERMINAL

    Note:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click hereClick hereClick here

  15. CHECK SRS WARNING LIGHT

    Click here

  16. INITIALIZE POWER WINDOW CONTROL SYSTEM

    Click here

  17. CHECK POWER WINDOW CONTROL SYSTEM

    Click here

  18. CHECK POWER DOOR LOCK CONTROL SYSTEM

    Click hereClick here

  19. CHECK OUTER REAR VIEW MIRROR

    Click here

  20. INSTALL BATTERY SERVICE COVER

    Click here

  21. INSTALL DECK BOARD ASSEMBLY

    Click here
