FRONT BRAKE FLEXIBLE HOSE COMPONENTS

ILLUSTRATION

B439373C23

*A

w/o Full Size Spare Tire

*B

w/ Full Size Spare Tire

*1

BATTERY SERVICE COVER

*2

DECK BOARD ASSEMBLY

*3

NEGATIVE AUXILIARY BATTERY TERMINAL

-

-
V100146

N*m (kgf*cm, ft.*lbf): Specified torque

-

-

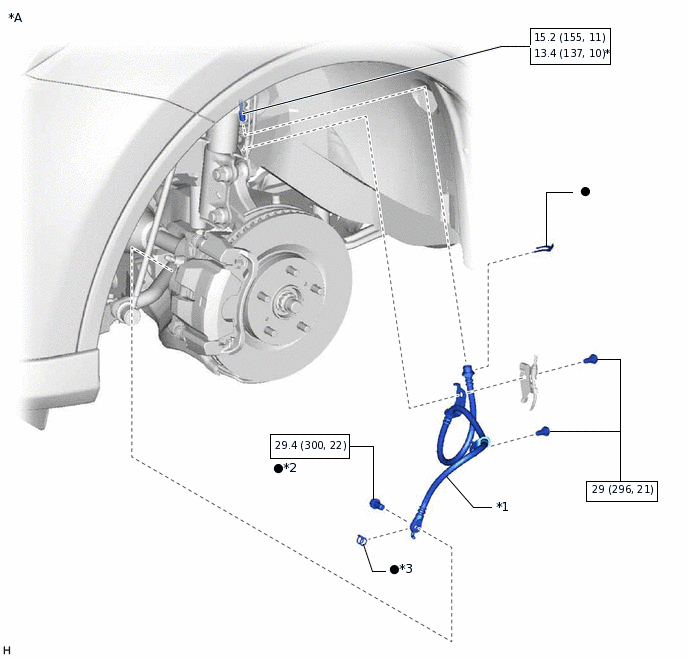

ILLUSTRATION

C346421C01

*A

for 16 inch Front Disc Brake

-

-

*1

FRONT FLEXIBLE HOSE

*2

UNION BOLT

*3

GASKET

-

-
V100146

N*m (kgf*cm, ft.*lbf): Specified torque

*

For use with union nut wrench

●

Non-reusable part

-

-

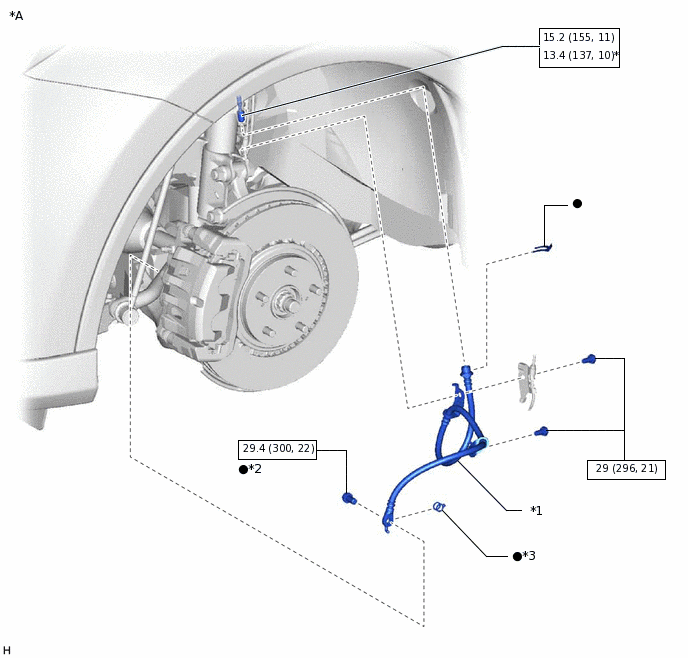

ILLUSTRATION

C346420C01

*A

for 17 inch Front Disc Brake

-

-

*1

FRONT FLEXIBLE HOSE

*2

UNION BOLT

*3

GASKET

-

-
V100146

N*m (kgf*cm, ft.*lbf): Specified torque

*

For use with union nut wrench

●

Non-reusable part

-

-
