BRAKE CONTROL SYSTEM


  1. CONSTRUCTION


    1. The brake stroke simulator cylinder sub-assembly consists of 2 types of coil springs with different spring constants and a stroke simulator cut solenoid valve.

    2. The brake stroke simulator cylinder sub-assembly provides a pedal stroke in accordance with the driver's pedal effort during braking. Containing 2 types of coil springs with different spring constants, the brake stroke simulator cylinder sub-assembly provides pedal stroke characteristics in 2 stages in relation to the master cylinder pressure.

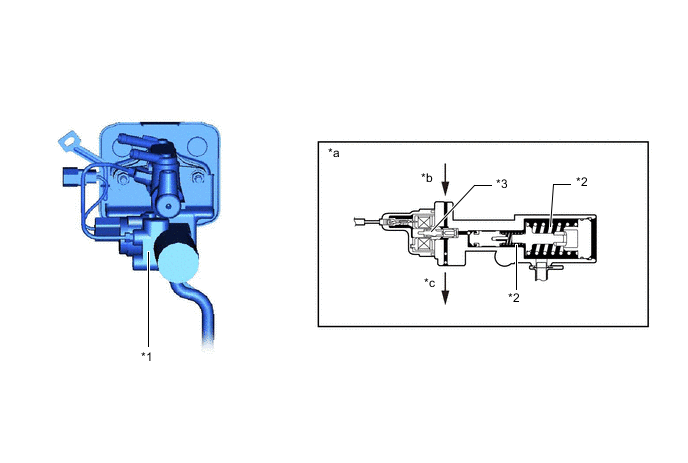

      A01R2F8C01
      *1 Brake Stroke Simulator Cylinder Sub-assembly *2 Coil Spring
      *3 Stroke Simulator Cut Solenoid Valve - -
      *a Brake Stroke Simulator Cylinder Sub-assembly Cross Section *b From Brake Master Cylinder Sub-assembly
      *c To Wheel Cylinders - -
