RADIATOR LOWER SUPPORT ASSEMBLY REPLACEMENT

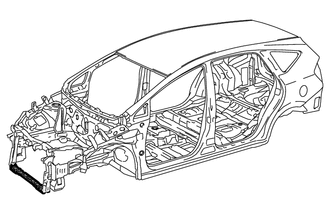

A0050JG

  1. REMOVAL

    Symbol meaning
    A0050K6 Remove Weld Points

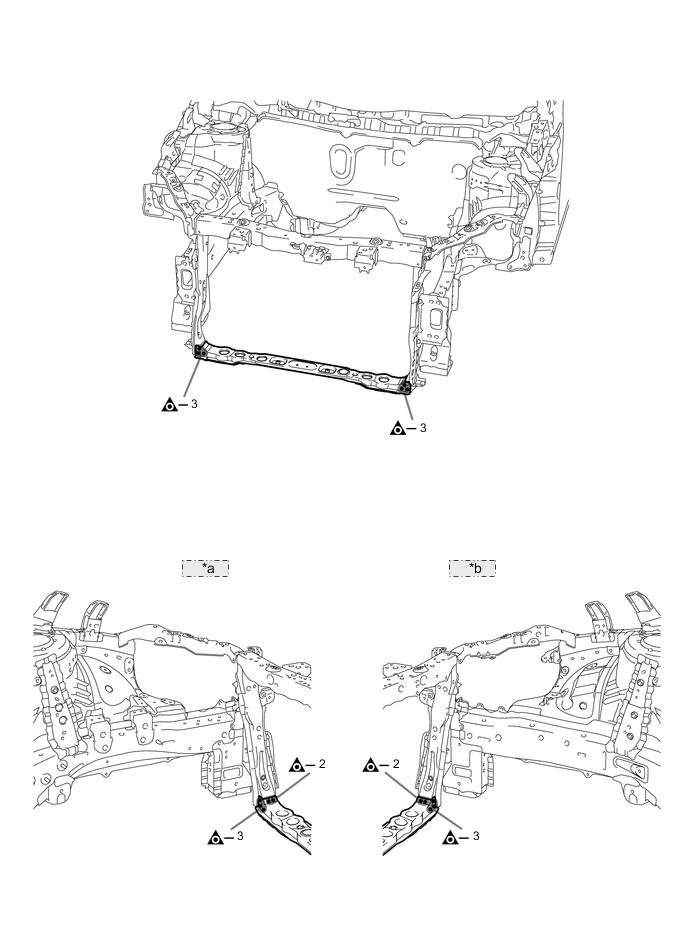

    A0050K1E01
    *a LH Side:
    *b RH Side:

  2. INSTALLATION

    Symbol meaning
    A0050CS Plug Weld

      INSTALLATION POINT

    1. Temporarily install the new parts and measure each part of the new parts in accordance with the body dimension diagram. (See the body dimensions)

    2. After applying the top coat, apply anti-rust agent to the internal panel portion of the closed section structural weld points.

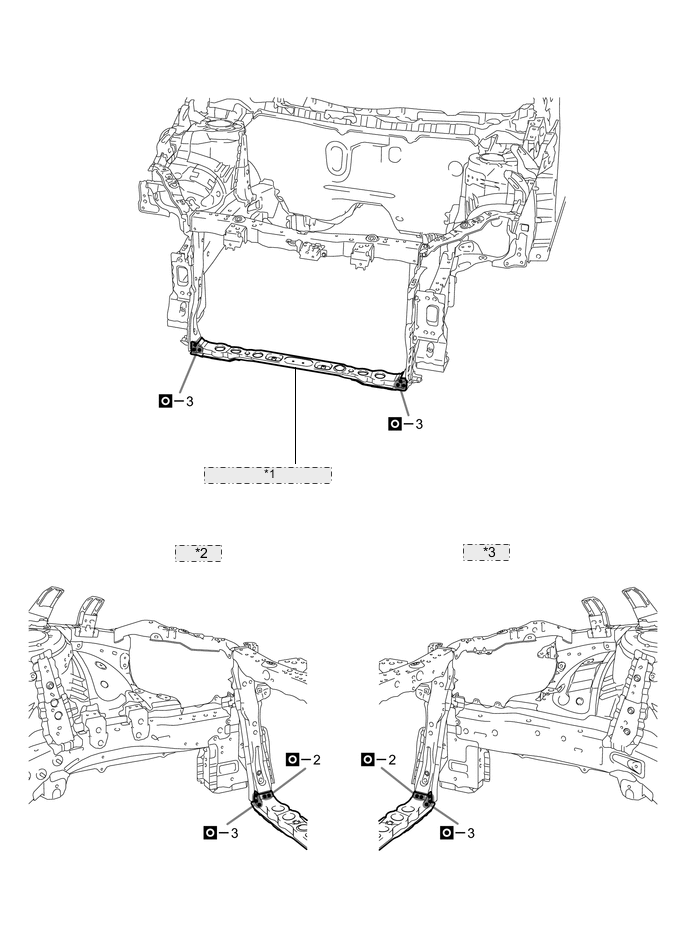

    A0050JWE01
    *1 RADIATOR SUPPORT LOWER
    *2 LH Side:
    *3 RH Side:
