SPOT LIGHT REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE

  1. REMOVE CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL

    Click here

  2. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY

    Click here

  3. REMOVE NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY

    Click here

  4. REMOVE STEREO OPENING COVER (w/o Audio)

    Click here

  5. REMOVE RADIO RECEIVER ASSEMBLY (w/ Audio, for Radio Receiver)

    Click here

  6. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY (w/ Audio, for Radio and Display Type)

    Click here

  7. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

    Click here

  8. REMOVE NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

    Click here

  9. REMOVE INTERIOR ILLUMINATION LIGHT SUB-ASSEMBLY

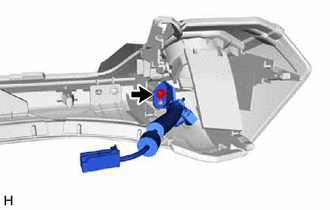

    1. E331155

      Remove the screw and interior illumination light sub-assembly.
