EGR COOLER COMPONENTS

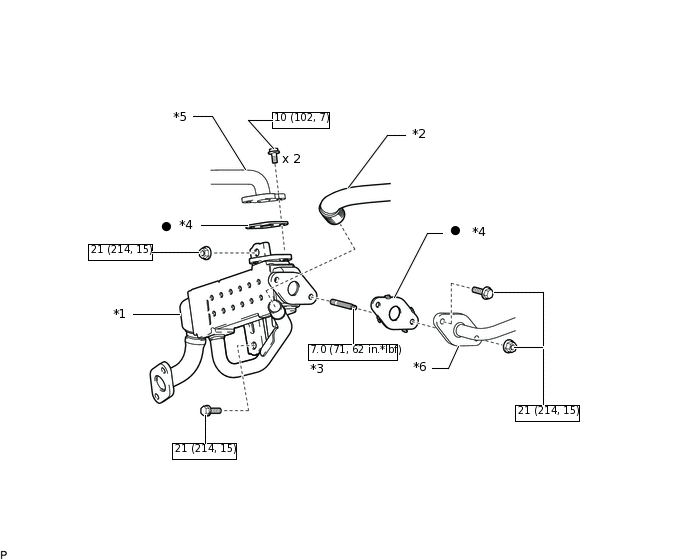

ILLUSTRATION
*1 |
EGR COOLER ASSEMBLY |
*2 |
NO. 5 WATER BY-PASS HOSE |
*3 |
STUD BOLT |
*4 |
GASKET |
*5 |
NO. 1 WATER BY-PASS PIPE |
*6 |
NO. 1 EGR PIPE |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
