HYBRID CONTROL SYSTEM, Diagnostic DTC:P0A2C-247 and P0A2D-249

DTC Code DTC Name
P0A2C-247 Drive Motor "A" Temperature Sensor Circuit Low
P0A2D-249 Drive Motor "A" Temperature Sensor Circuit High

DESCRIPTION

Refer to the description for DTC P0A2B-250.

Click here

DTC No.

Detection Item

DTC Detection Condition

Trouble Area

MIL

Warning Indicate

P0A2C-247

Drive Motor "A" Temperature Sensor Circuit Low

Line short or short to ground in the motor temperature sensor circuit

(1 trip detection logic)

  • Wire harness or connector

  • Hybrid vehicle control ECU

  • Hybrid vehicle transaxle assembly (Motor temperature sensor)

Does not come on

Master Warning Light:

Comes on

P0A2D-249

Drive Motor "A" Temperature Sensor Circuit High

Open or short to +B in the motor temperature sensor circuit

(1 trip detection logic)

  • Wire harness or connector

  • Hybrid vehicle control ECU

  • Hybrid vehicle transaxle assembly (Motor temperature sensor)

Does not come on

Master Warning Light:

Comes on
Table 1. Related Data List

DTC No.

Data List

P0A2C-247

Motor Temp No1

P0A2D-249
Tip:

After confirming that DTC P0A2C-247 or P0A2D-249 is output, use the GTS to check "Motor Temp No1" in the Data List.

Displayed Temperature

Malfunction

-40°C (-40°F)

Open circuit or short to +B

215°C (419°F)

Short circuit or short to ground

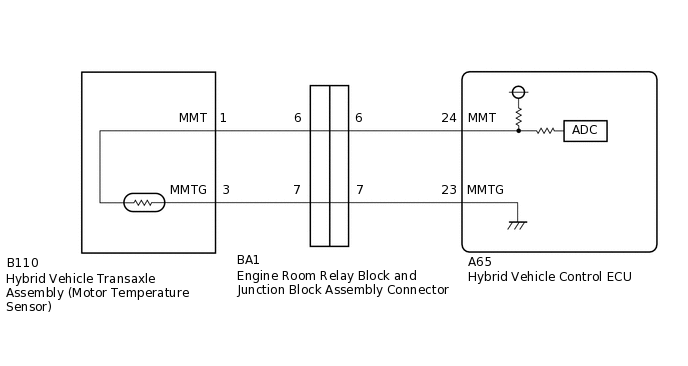

WIRING DIAGRAM

A385273E17

CAUTION / NOTICE / HINT

Tip:

After the repair, clear the DTCs and perform the following procedure to check that DTCs are not output.

  1. Turn the power switch on (IG) and wait for 5 seconds or more.

PROCEDURE

  1. CHECK CONNECTOR CONNECTION CONDITION (HYBRID VEHICLE CONTROL ECU CONNECTOR)

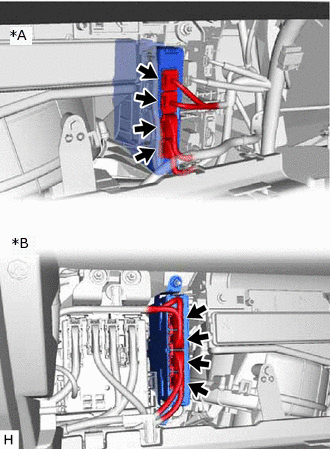

    1. C344138C02

      *A

      for LHD

      *B

      for RHD

      Check the connection condition of the hybrid vehicle control ECU connectors and the contact pressure of each terminal. Check the terminals for deformation, and check the connector for water ingress and foreign matter.

      Click here

      OK

      - The connector is connected securely.

      - The terminals are not deformed and are connected securely.

      - No water or foreign matter in the connector.

      Result

      Result

      Proceed to

      OK

      A

      NG (The connector is not connected securely.)

      B

      NG (The terminals are not making secure contact or are deformed, or water or foreign matter exists in the connector.)

      C
    B

    CONNECT SECURELY

    C

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    A

  2. CHECK CONNECTOR CONNECTION CONDITION (MOTOR TEMPERATURE SENSOR CONNECTOR)

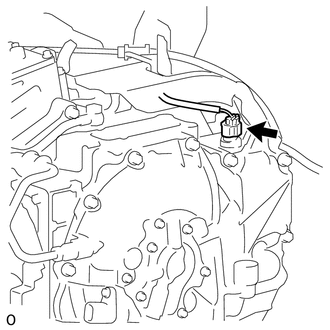

    1. C296832

      Check the connection condition of the motor temperature sensor connector and the contact pressure of each terminal. Check the terminals for deformation, and check the connector for water ingress and foreign matter.

      Click here

      OK

      - The connector is connected securely.

      - The terminals are not deformed and are connected securely.

      - No water or foreign matter in the connector.

    Result

    Result

    Proceed to

    OK

    A

    NG (The connector is not connected securely.)

    B

    NG (The terminals are not making secure contact or are deformed, or water or foreign matter exists in the connector.)

    C
    B

    CONNECT SECURELY

    C

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    A

  3. READ VALUE USING GTS (MOTOR TEMP NO1)

    1. Connect the GTS to the DLC3.

    2. Turn the power switch on (IG).

    3. Enter the following menus: Powertrain / Hybrid Control / Data List / Motor Temp No1.

      Powertrain > Hybrid Control > Data List

      Tester Display

      Motor Temp No1

    4. Read the Data List.

      Result

      Proceed to

      -40°C (-40°F)

      215°C (419°F)

      Same as actual temperature

    5. Turn the power switch off.

    215°C (419°F)

    INSPECT HYBRID VEHICLE TRANSAXLE ASSEMBLY (MOTOR TEMPERATURE SENSOR)Click here

    Same as actual temperature

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    -40°C (-40°F)

  4. INSPECT HYBRID VEHICLE TRANSAXLE ASSEMBLY (MOTOR TEMPERATURE SENSOR)

    1. C296832

      Disconnect the B110 motor temperature sensor connector.

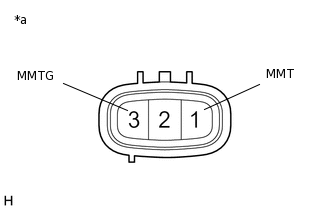

    2. A386639C03

      *a

      Component without harness connected

      (Hybrid Vehicle Transaxle Assembly (Motor Temperature Sensor))

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      1 (MMT) - 3 (MMTG)

      Power switch off

      0.3436 to 1442 kΩ

    3. Reconnect the B110 motor temperature sensor connector.

    Result

    Proceed to

    OK

    NG
    NG

    REPLACE HYBRID VEHICLE TRANSAXLE ASSEMBLY

    Click here

    OK

  5. CHECK HYBRID VEHICLE CONTROL ECU

    1. Connect terminals 24 (MMT) and 23 (MMTG) of the A65 hybrid vehicle control ECU connector.

    2. Connect the GTS to the DLC3.

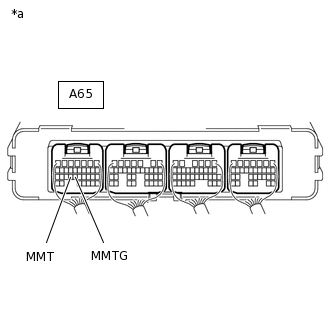

    3. A374897C05

      *a

      Component with harness connected

      (to Hybrid Vehicle Control ECU)

      Turn the power switch on (IG).

    4. Enter the following menus: Powertrain / Hybrid Control / Data List / Motor Temp No1.

      Powertrain > Hybrid Control > Data List

      Tester Display

      Motor Temp No1

    5. Read the Data List.

      OK

      Tester Display

      Condition

      Specified Condition

      Motor Temp No1

      Terminals A65-24 (MMT) and A65-23 (MMTG) connected

      Power switch on (IG)

      215°C (419°F)

    6. Turn the power switch off.

    Result

    Proceed to

    OK

    NG
    OK

    REPAIR OR REPLACE HARNESS OR CONNECTOR

    NG

    REPLACE HYBRID VEHICLE CONTROL ECU

    Click here

  6. INSPECT HYBRID VEHICLE TRANSAXLE ASSEMBLY (MOTOR TEMPERATURE SENSOR)

    1. C296832

      Disconnect the B110 motor temperature sensor connector.

    2. A386639C03

      *a

      Component without harness connected

      (Hybrid Vehicle Transaxle Assembly (Motor Temperature Sensor))

      Measure the resistance according to the value(s) in the table below.

      Standard Resistance

      Tester Connection

      Condition

      Specified Condition

      1 (MMT) - 3 (MMTG)

      Power switch off

      0.3436 to 1442 kΩ

    3. Reconnect the B110 motor temperature sensor connector.

    Result

    Proceed to

    OK

    NG
    NG

    REPLACE HYBRID VEHICLE TRANSAXLE ASSEMBLY

    Click here

    OK

  7. CHECK HARNESS AND CONNECTOR (MOTOR TEMPERATURE SENSOR - HYBRID VEHICLE CONTROL ECU)

    1. Disconnect the B110 motor temperature sensor connector.

    2. Disconnect the A65 hybrid vehicle control ECU connector.

    3. Measure the resistance according to the value(s) in the table below.

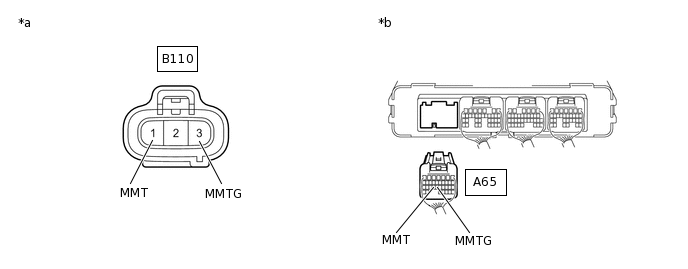

      C304435C11

      *a

      Front view of wire harness connector

      (to Motor Temperature Sensor)

      *b

      Rear view of wire harness connector

      (to Hybrid Vehicle Control ECU)

      Standard Resistance (Check for Open)

      Tester Connection

      Condition

      Specified Condition

      B110-1 (MMT) - A65-24 (MMT)

      Power switch off

      Below 1 Ω

      B110-3 (MMTG) - A65-23 (MMTG)

      Power switch off

      Below 1 Ω

      Standard Resistance (Check for Short)

      Tester Connection

      Condition

      Specified Condition

      B110-1 (MMT) or A65-24 (MMT) - Body ground and other terminals

      Power switch off

      10 kΩ or higher

      B110-3 (MMTG) or A65-23 (MMTG) - Body ground and other terminals

      Power switch off

      10 kΩ or higher

    4. Reconnect the A65 hybrid vehicle control ECU connector.

    5. Reconnect the B110 motor temperature sensor connector.

    Result

    Proceed to

    OK

    NG
    OK

    REPLACE HYBRID VEHICLE CONTROL ECU

    Click here

    NG

    REPAIR OR REPLACE HARNESS OR CONNECTOR
