METER / GAUGE SYSTEM


  1. OUTLINE


    1. An analog display type combination meter is used.

    2. A multi-information display whose display items can be changed by pressing the ODO/TRIP switch or DISP switch and shift position indicator lights are provided in the Liquid Crystal Display (LCD).

    3. An ODO/TRIP switch and DISP switch for switching the display on the multi-information display have been installed in the trip switch on the right side of the combination meter assembly.

    4. Digital speedometer display as well as rev indicator/red zone indicators have been installed, depending on the specification.

    5. The combination meter assembly has a built-in meter ECU and buzzer.

    6. All the meters, gauges, indicator lights and warning lights use LEDs to reduce the consumption of electrical energy.

    7. The combination meter assembly displays the odometer or trip meter when the ignition is off by activation of the ODO/TRIP switch.

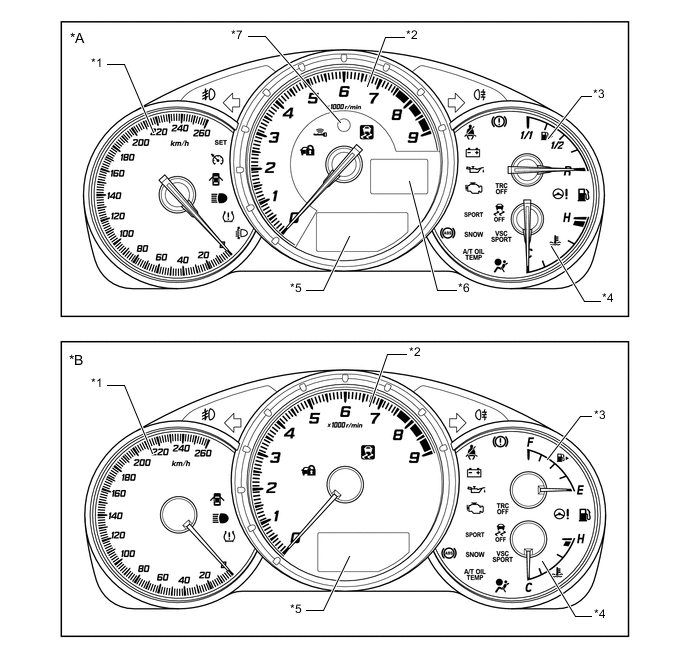

      A004GQBE02
      Text in Illustration (Models with km/h: )
      *A Models with Digital Speedometer Display *B Models without Digital Speedometer Display
      *1 Speedometer *2 Tachometer
      *3 Fuel Gauge *4 Water Temperature Gauge
      *5 Multi-information Display *6 Digital Speedometer Display
      *7 Rev Indicator/Red Zone Indicator - -

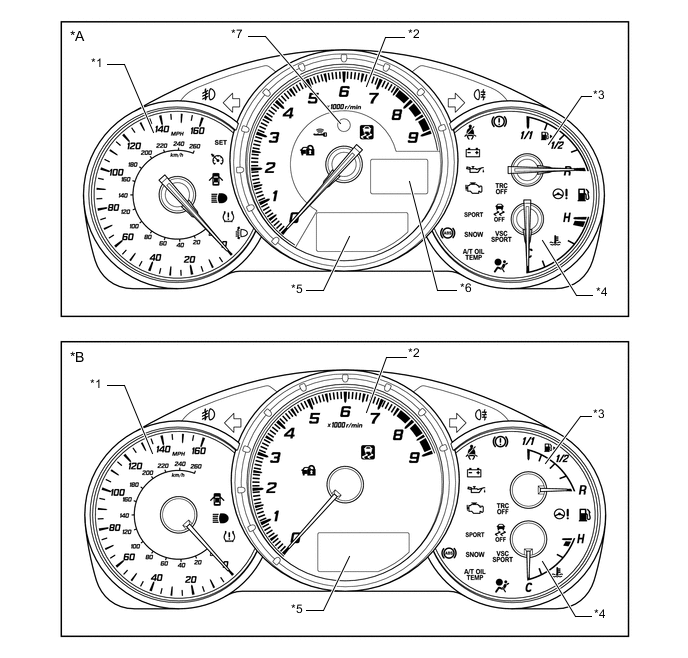

      A004GZ9E02
      Text in Illustration (Models with MPH and km/h: )
      *A Models with Digital Speedometer Display *B Models without Digital Speedometer Display
      *1 Speedometer *2 Tachometer
      *3 Fuel Gauge *4 Water Temperature Gauge
      *5 Multi-information Display *6 Digital Speedometer Display
      *7 Rev Indicator/Red Zone Indicator - -

    8. An intermediate gauge (10 km/h increment) is adopted for the speedometer of the MPH and km/h type combination meter assembly for some specifications.

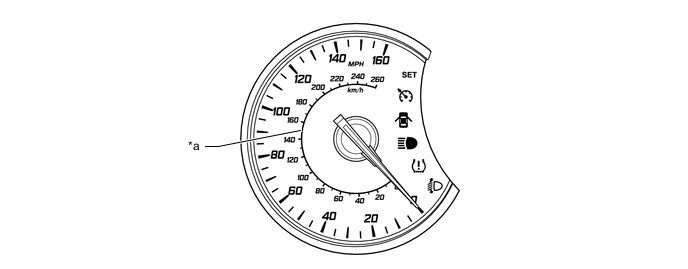

      A004GT0E02
      Text in Illustration
      *a Intermediate Gauge - -

  2. PRECAUTION


    1. Ignition Switch Expressions


      1. The type of ignition switch used on this model differs depending on the specifications of the vehicle. The expressions listed in the table below are used in this section.

        Expression

        Ignition Switch (Ignition or Starter Switch Assembly)

        (Position)

        Engine Switch (Push Start Switch)

        (Condition)
        Ignition Switch off LOCK Off
        Ignition Switch ACC ACC On (ACC)
        Ignition Switch ON ON On (IG)
        Engine Start START Start
