CLUTCH RELEASE CYLINDER(for EA66) REMOVAL

PROCEDURE

  1. PRECAUTION

    Note:

    After turning the ignition switch off, waiting time may be required before disconnecting the cable from the battery terminal. Therefore, make sure to read the disconnecting the cable from the battery terminal notice before proceeding with work.

    Click hereClick here

  2. DISCONNECT CABLE FROM NEGATIVE BATTERY TERMINAL

    Note:

    When disconnecting the cable, some systems need to be initialized after the cable is reconnected.

    Click hereClick hereClick here

  3. REMOVE NO. 1 ENGINE COVER

    Click hereClick hereClick here

  4. REMOVE NO. 1 ENGINE UNDER COVER

    Click hereClick here

  5. DRAIN ENGINE COOLANT

    Click here

  6. REMOVE BATTERY

    Click hereClick hereClick here

  7. REMOVE BATTERY CARRIER

    Click hereClick hereClick here

  8. REMOVE AIR CLEANER CAP SUB-ASSEMBLY WITH AIR CLEANER HOSE ASSEMBLY

    Click here

  9. REMOVE AIR CLEANER FILTER ELEMENT SUB-ASSEMBLY

  10. REMOVE AIR CLEANER CASE SUB-ASSEMBLY

    Click here

  11. DISCONNECT ENGINE WIRE

    Click here

  12. REMOVE NO. 4 WATER BY-PASS HOSE

    Click here

  13. DISCONNECT COMPRESSOR OUTLET ELBOW

    Click here

  14. DISCONNECT NO. 2 AIR HOSE

    Click hereClick here

  15. REMOVE NO. 1 AIR TUBE ASSEMBLY

    Click hereClick here

  16. DISCONNECT CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE TUBE

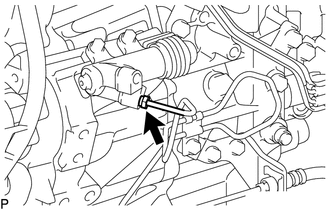

    1. C299390

      Using a 10 mm union nut wrench, disconnect the clutch release cylinder to flexible hose tube from the clutch release cylinder assembly.

      Tip:

      Use a container to collect the fluid.

  17. REMOVE CLUTCH RELEASE CYLINDER ASSEMBLY

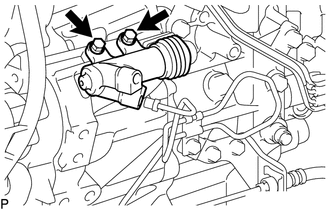

    1. C299391

      Remove the 2 bolts, clutch release cylinder assembly from the manual transaxle assembly.
