EMISSION CONTROL SYSTEM

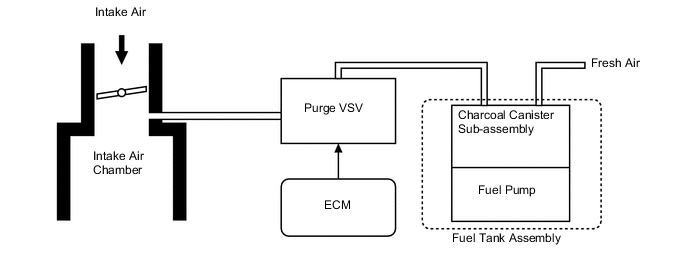

Figure 1. Evaporative Emission Control System (Except Models for Korea)

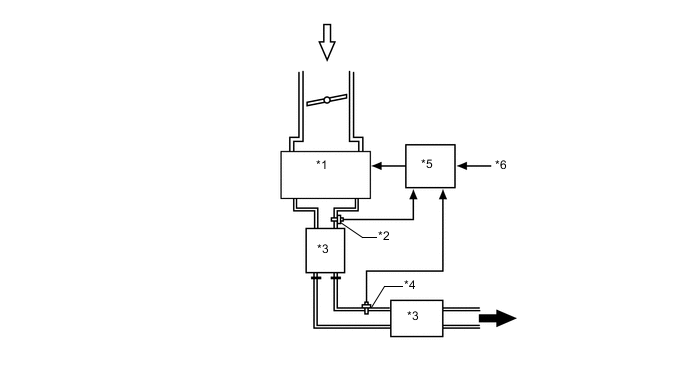

Figure 2. Exhaust Emission Control System (Models for Korea)
| *1 | Engine
|
*2 | Air Fuel Ratio Sensor |
| *3 | TWC | *4 | Oxygen Sensor |
| *5 | ECM | *6 | Various Sensors |
 |
Intake Air |  |
Exhaust Gas |

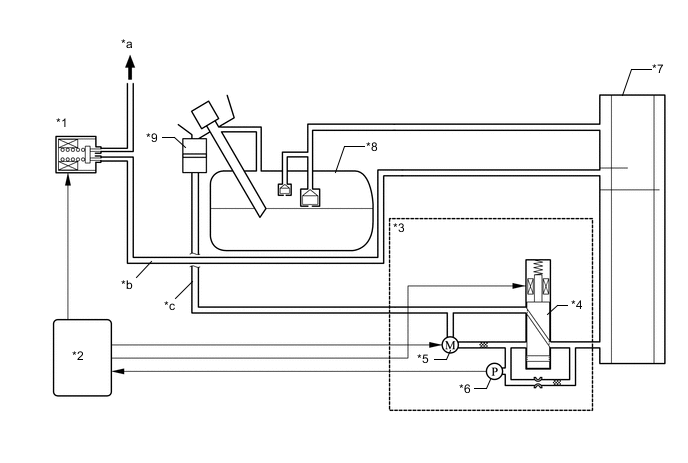

Figure 3. Evaporative Emission Control System (Models for Korea)
| *1 | Purge VSV | *2 | ECM |
| *3 | Charcoal Canister Leak Detection Pump Sub-assembly | *4 | Vent Valve |
| *5 | Pump Motor | *6 | Canister Pressure Sensor |
| *7 | Charcoal Canister Assembly | *8 | Fuel Tank Assembly |
| *9 | No. 1 Charcoal Canister Filter | - | - |
| *a | To Intake Manifold | *b | Purge Air Line |
| *c | Fresh Air Line | - | - |

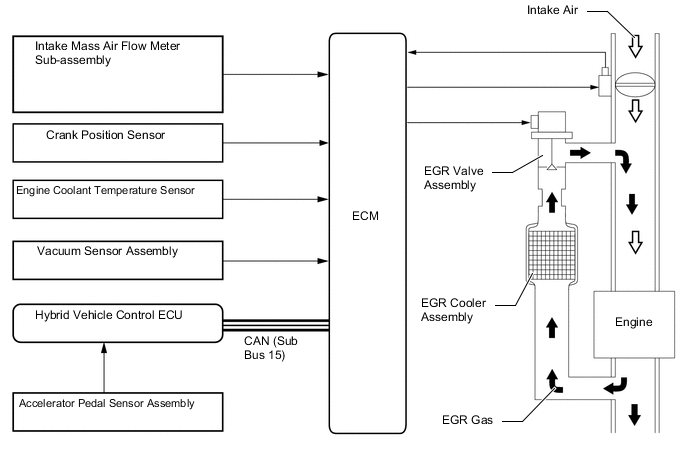

Figure 4. EGR System
