ULTRASONIC SENSOR(for Front) REMOVAL

PROCEDURE

  1. REMOVE FRONT BUMPER COVER

    Click here

  2. REMOVE ULTRASONIC SENSOR CLIP

    Tip:

    • The illustration shows the ultrasonic sensor clip for the LH corner and front RH. The horizontal orientation of the ultrasonic sensor clip for the RH corner and front LH is opposite that of the image shown in the illustration.

    • Use the same procedure for all ultrasonic sensor clips.

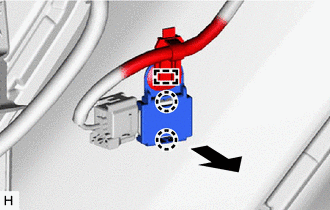

    1. B421032

      Detach the 2 claws and remove the ultrasonic sensor clip as shown in the illustration.

    2. Detach the clamp.

  3. REMOVE NO.1 ULTRASONIC SENSOR

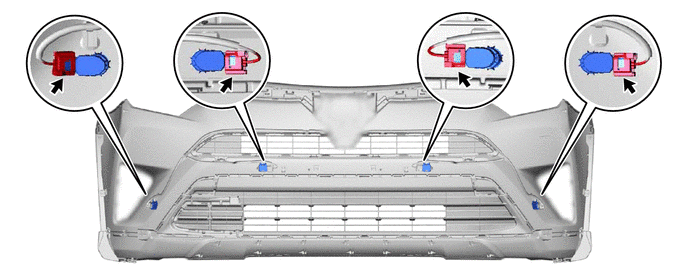

    1. Disconnect the 4 connectors.

      B437866

    2. Detach the 4 claws and remove the No. 1 ultrasonic sensor as shown in the illustration.

      B354819
      Tip:

      • The illustration shows the No. 1 ultrasonic sensor for the LH corner and front sensor RH. The horizontal orientation of the No. 1 ultrasonic sensor for the RH corner and front sensor LH is opposite that of the image shown in the illustration.

      • Use the same procedure for all No. 1 ultrasonic sensors.
