ROOM TEMPERATURE SENSOR REMOVAL

CAUTION / NOTICE / HINT

Tip:

  • Use the same procedure for RHD and LHD vehicles.

  • The procedure listed below is for LHD vehicles.

PROCEDURE

  1. REMOVE CENTER NO. 1 INSTRUMENT CLUSTER FINISH PANEL

    Click here

  2. REMOVE NO. 3 INSTRUMENT PANEL REGISTER ASSEMBLY

    Click here

  3. REMOVE NO. 4 INSTRUMENT PANEL REGISTER ASSEMBLY

    Click here

  4. REMOVE STEREO OPENING COVER (w/o Audio)

    Click here

  5. REMOVE RADIO RECEIVER ASSEMBLY (w/ Audio, for Radio Receiver Type)

    Click here

  6. REMOVE RADIO AND DISPLAY RECEIVER ASSEMBLY (w/ Audio, for Radio and Display Type)

    Click here

  7. REMOVE NO. 1 INSTRUMENT CLUSTER FINISH PANEL

    Click here

  8. REMOVE AIR CONDITIONING CONTROL ASSEMBLY

    Click here

  9. REMOVE NO. 2 INSTRUMENT PANEL GARNISH SUB-ASSEMBLY

    Click here

  10. REMOVE COOLER (ROOM TEMPERATURE SENSOR) THERMISTOR

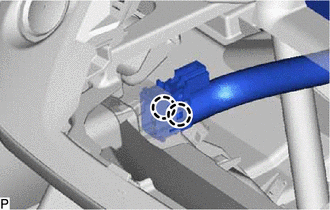

    1. E269122

      Detach the 2 claws and disconnect the cooler (room temperature sensor) thermistor from the instrument panel.

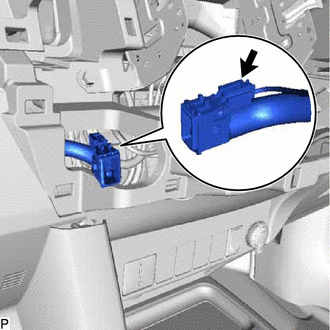

    2. E269123

      Pull out the cooler (room temperature sensor) thermistor and disconnect the connector and aspirator pipe to remove the cooler (room temperature sensor) thermistor.
