REAR DRIVE SHAFT ASSEMBLY COMPONENTS

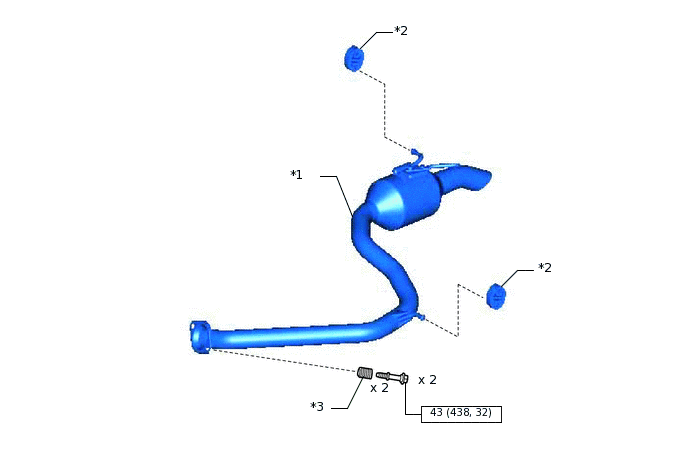

ILLUSTRATION
*1 |
TAIL EXHAUST PIPE ASSEMBLY |
*2 |
EXHAUST PIPE SUPPORT |
*3 |
COMPRESSION SPRING |
- |
- |
 |
N*m (kgf*cm, ft.*lbf): Specified torque |
- |
- |

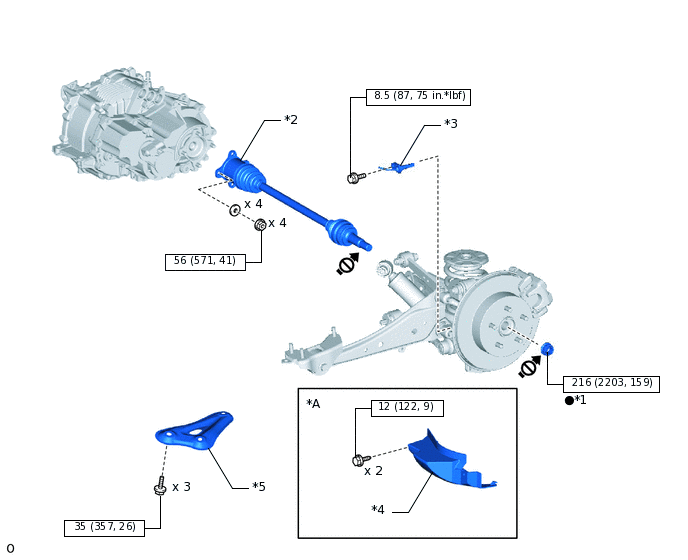

ILLUSTRATION
*A |
w/ Cover |
- |
- |
*1 |
REAR AXLE SHAFT NUT LH |
*2 |
REAR DRIVE SHAFT ASSEMBLY LH |
*3 |
REAR SPEED SENSOR LH |
*4 |
REAR SUSPENSION ARM COVER LH |
*5 |
REAR SUSPENSION MEMBER BRACE LH |
- |
- |
|
N*m (kgf*cm, ft.*lbf): Specified torque |
● |
Non-reusable part |
 |
Do not apply lubricants to the threaded parts |
- |
- |

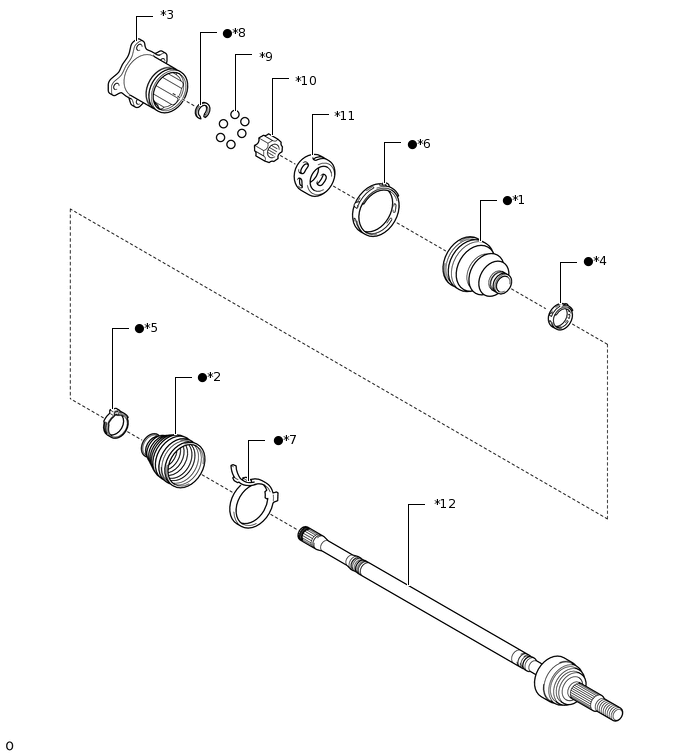

ILLUSTRATION
*1 |
INBOARD JOINT BOOT |
*2 |
OUTBOARD JOINT BOOT |
*3 |
REAR DRIVE SHAFT INBOARD JOINT ASSEMBLY LH |
*4 |
REAR DRIVE SHAFT INBOARD JOINT BOOT CLAMP LH |
*5 |
REAR DRIVE SHAFT OUTBOARD JOINT BOOT CLAMP LH |
*6 |
REAR NO. 2 DRIVE SHAFT INBOARD JOINT BOOT CLAMP LH |
*7 |
REAR NO. 2 DRIVE SHAFT OUTBOARD JOINT BOOT CLAMP LH |
*8 |
SNAP RING |
*9 |
BALL |
*10 |
INNER RACE |
*11 |
BALL CAGE |
*12 |
REAR DRIVE SHAFT OUTBOARD JOINT SHAFT ASSEMBLY LH |
● |
Non-reusable part |
- |
- |
