AIR CONDITIONING SYSTEM

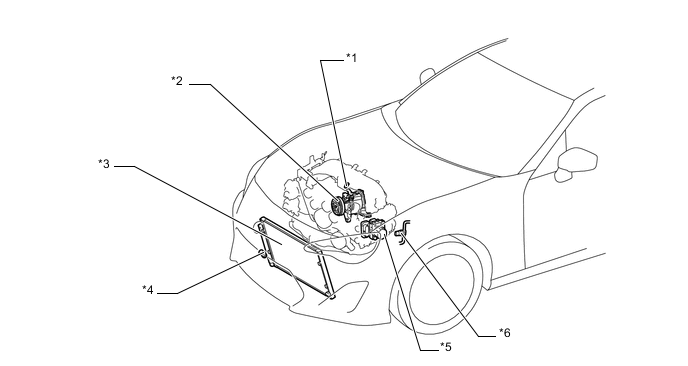

| *1 | E.F.I. Engine Coolant Temperature Sensor | *2 | Compressor with Magnet Clutch |
| *3 | Cooler Condenser Assembly | *4 | Thermistor Assembly |
| *5 | Skid Control ECU | *6 | Air Conditioning Pressure Switch (Airconditioner Tube Assembly) |
| *A | Models with A/T | - | - |

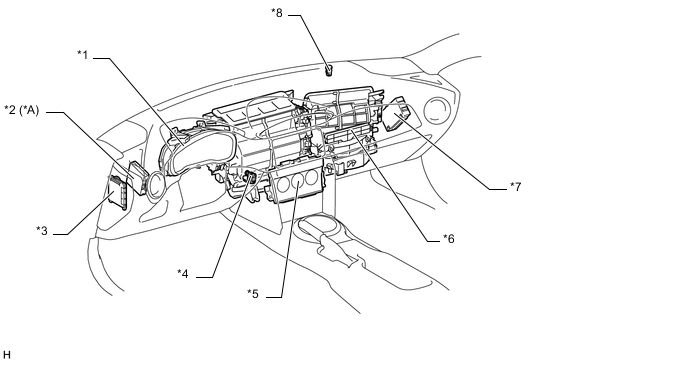

| *1 | Combination Meter Assembly | *2 | Transmission Control ECU Assembly |
| *3 | Main Body ECU (Network Gateway ECU) | *4 | Cooler (Room Temp. sensor) Thermistor |
| *5 | Air Conditioning Control Panel | *6 | Air Conditioning Unit Assembly |
| *7 | ECM | *8 | Automatic Light Control Sensor |
| *A | Models with A/T | - | - |

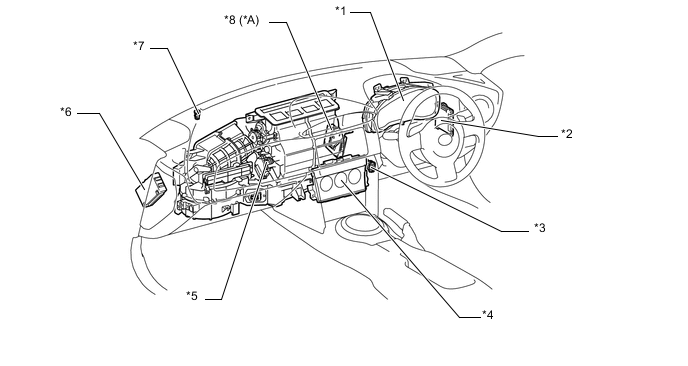

| *1 | Combination Meter Assembly | *2 | Main Body ECU (Network Gateway ECU) |
| *3 | Cooler (Room Temp. sensor) Thermistor | *4 | Air Conditioning Control Panel |
| *5 | Air Conditioning Unit Assembly | *6 | ECM |
| *7 | Automatic Light Control Sensor | *8 | Transmission Control ECU Assembly |

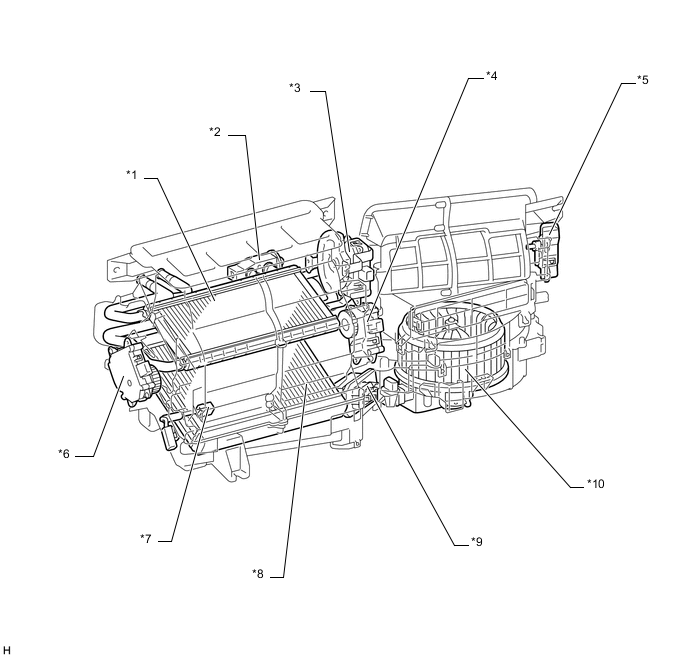

| *1 | Heater Radiator Unit Sub-assembly | *2 | Cooler Expansion Valve |
| *3 | No.1 Air Conditioning Radiator Damper Servo Sub-assembly | *4 | No.3 Air Conditioning Radiator Damper Servo Sub-assembly (Passenger) |
| *5 | No.1 Blower Damper Servo Sub-assembly | *6 | No.3 Air Conditioning Radiator Damper Servo Sub-assembly (Driver) |
| *7 | Evaporator Temperature Sensor (No.1 Cooler Thermistor) | *8 | No.1 Cooler Evaporator Sub-assembly |
| *9 | Blower Motor Control | *10 | Blower with Fan Motor Sub-assembly |

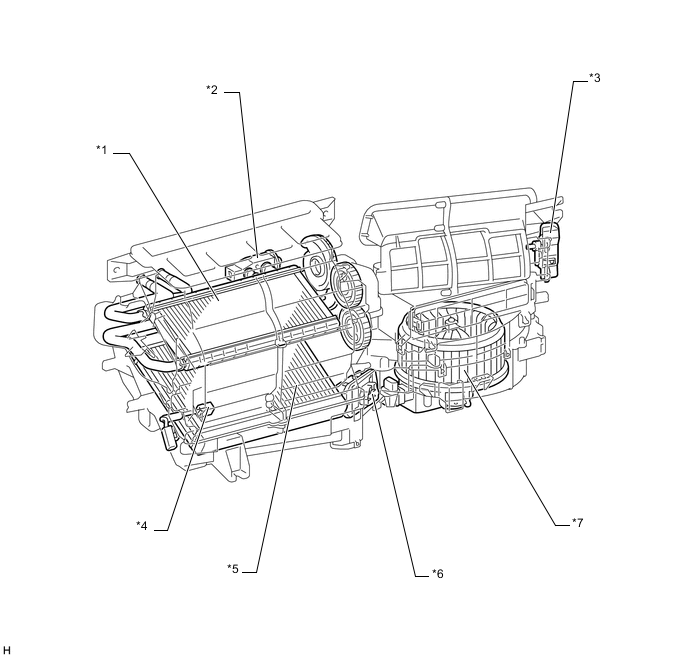

| *1 | Heater Radiator Unit Sub-assembly | *2 | Cooler Expansion Valve |
| *3 | No.1 Blower Damper Servo Sub-assembly | *4 | Evaporator Temperature Sensor (No.1 Cooler Thermistor) |
| *5 | No.1 Cooler Evaporator Sub-assembly | *6 | Blower Resistor |
| *7 | Blower with Fan Motor Sub-assembly | - | - |
