REAR SEATBACK HEATER(for 60/40 Split Seat Type RH Side) COMPONENTS

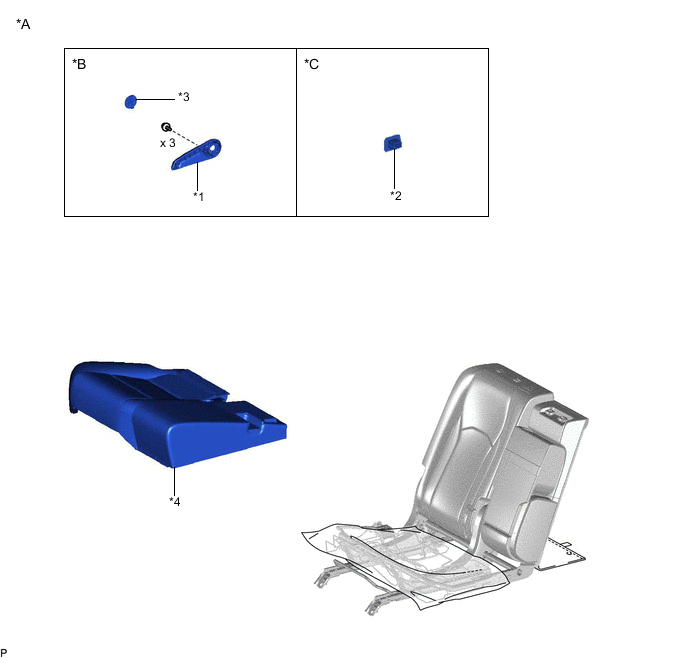

ILLUSTRATION
| *A | w/o Rear No. 2 Seat | *B | for Manual Seat |
| *C | for Power Seat | - | - |
| *1 | NO. 1 RECLINING ADJUSTER RELEASE HANDLE RH | *2 | POWER SEAT SWITCH ASSEMBLY |
| *3 | REAR SEAT COVER CAP RH | *4 | SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD |

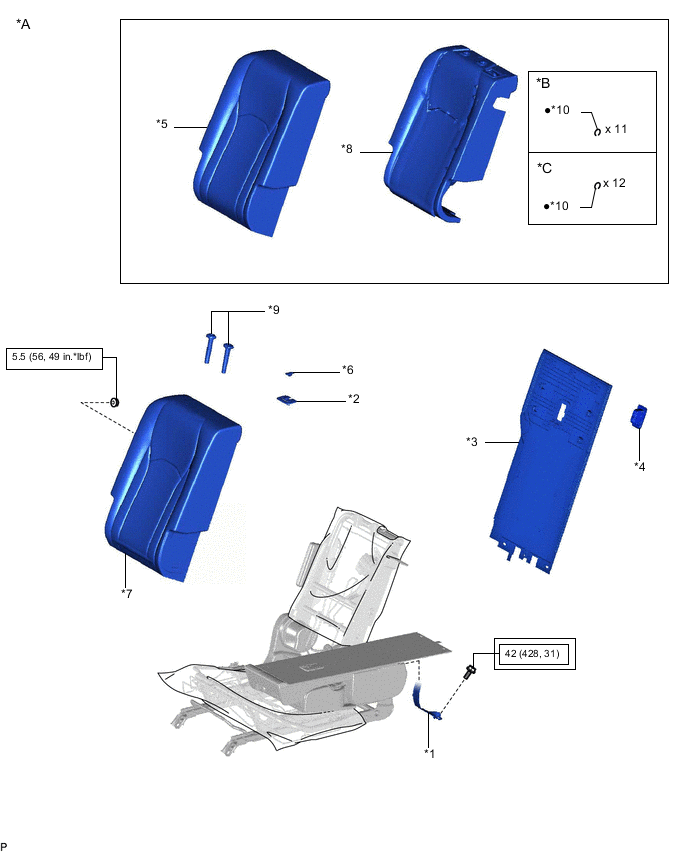

ILLUSTRATION
| *A | w/o Rear No. 2 Seat | *B | for Manual Seat |
| *C | for Power Seat | - | - |
| *1 | REAR CENTER SEAT OUTER BELT ASSEMBLY | *2 | REAR SEAT SHOULDER BELT COVER |
| *3 | REAR SEATBACK BOARD CARPET ASSEMBLY RH | *4 | REAR SEATBACK COVER RH |
| *5 | REAR SEATBACK HEATER (SEPARATE TYPE REAR SEATBACK COVER) | *6 | SEAT BELT ANCHOR COVER CAP |
| *7 | SEPARATE TYPE REAR SEATBACK COVER WITH PAD | *8 | SEPARATE TYPE REAR SEATBACK PAD |
| *9 | REAR NO. 1 SEAT HEADREST SUPPORT | *10 | HOG RING |
 |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping" : N*m (kgf*cm, ft.*lbf) |  |
N*m (kgf*cm, ft.*lbf): Specified torque |
| ● | Non-reusable part | - | - |

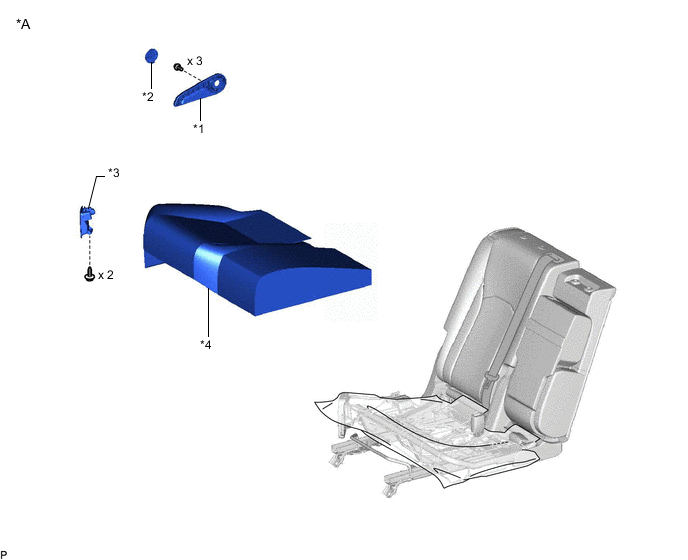

ILLUSTRATION
| *A | w/ Rear No. 2 Seat | - | - |
| *1 | NO. 1 RECLINING ADJUSTER RELEASE HANDLE RH | *2 | REAR SEAT COVER CAP RH |
| *3 | REAR SEAT LOCK CONTROL LEVER SUB-ASSEMBLY RH | *4 | SEPARATE TYPE REAR SEAT CUSHION COVER WITH PAD |

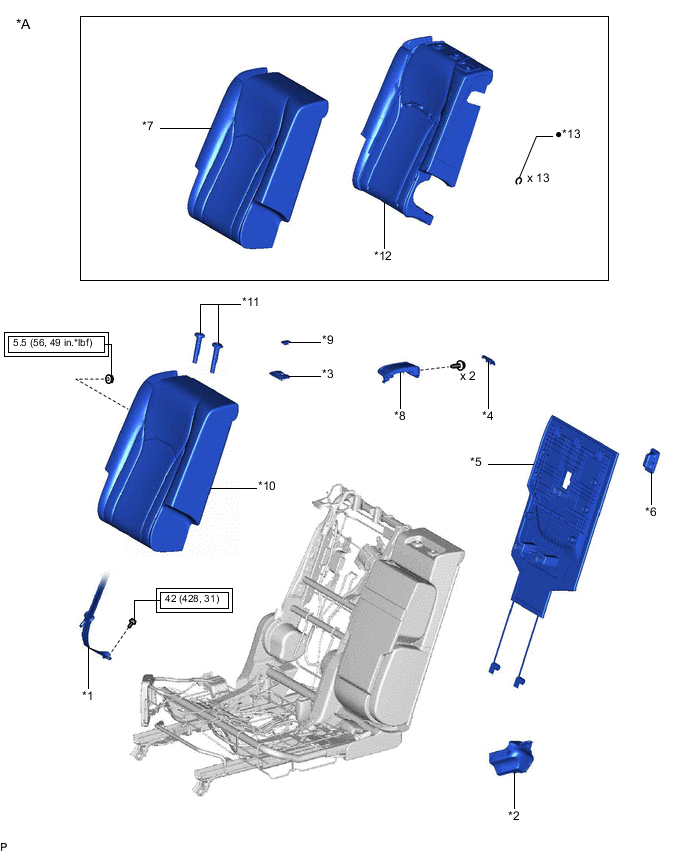

ILLUSTRATION
| *A | w/ Rear No. 2 Seat | - | - |
| *1 | REAR CENTER SEAT OUTER BELT ASSEMBLY | *2 | REAR NO. 1 SEAT RECLINING ADJUSTER INSIDE COVER |
| *3 | REAR SEAT SHOULDER BELT COVER | *4 | REAR SEAT UPPER RECLINING COVER RH |
| *5 | REAR SEATBACK BOARD CARPET ASSEMBLY RH | *6 | REAR SEATBACK COVER RH |
| *7 | REAR SEATBACK HEATER (SEPARATE TYPE REAR SEATBACK COVER) | *8 | RECLINING REMOTE CONTROL LEVER SUB-ASSEMBLY RH |
| *9 | SEAT BELT ANCHOR COVER CAP | *10 | SEPARATE TYPE REAR SEATBACK COVER WITH PAD |
| *11 | REAR NO. 1 SEAT HEADREST SUPPORT ASSEMBLY | *12 | SEPARATE TYPE REAR SEATBACK PAD |
| *13 | HOG RING | - | - |
| |
Tightening torque for "Major areas involving basic vehicle performance such as moving/turning/stopping": N*m (kgf*cm, ft.*lbf) | ● | Non-reusable part |
